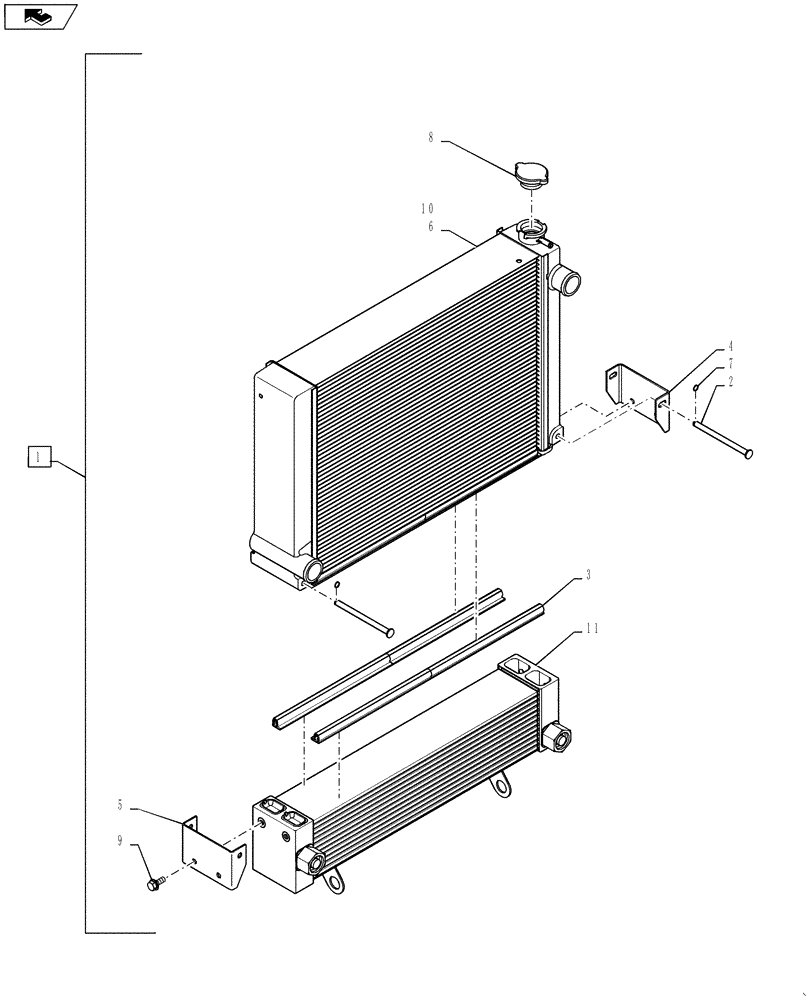

Запчасти Case IH TV380 (10.400.BE[02]) - RADIATOR & COOLER, ASSY (SR220 - SV300,TR320,TV380) (10) - ENGINE

1

84201143

Assembly, Includes Oil Cooler and Radiator, Order Components

MODULE

1шт.

2

84379139

PIN

1шт.

3

84379140

SEALING STRIP,722.6mm L

2шт.

4

84379146

BRACKET

Mounting

1шт.

5

84379147

BRACKET

Mounting

1шт.

6

84379154

W/Decals

RADIATOR

1шт.

7

87687374

CLIP

1шт.

8

87687375

RADIATOR CAP

1шт.

9

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

10

84475134

W/Decals, Low Fin Density, Applications With Significant Air-Born Debris, Not For Use In Hot Environments Or In High Engine Load Applications

RADIATOR

1шт.

11

84475136

Low Fin Density, Applications With Significant Air-Born Debris, Not For Use In Hot Environments Or In High Engine Load Applications

OIL COOLER

1шт.

11

84379134

Standard, BSN

OIL COOLER

1шт.

11

84499497

Standard, ASN, After October 2011

OIL COOLER

1шт.
