Запчасти Case IH TV380 (10.304.AS) - REMOTE DIPSTICK, OIL (SR200-TV380) (10) - ENGINE

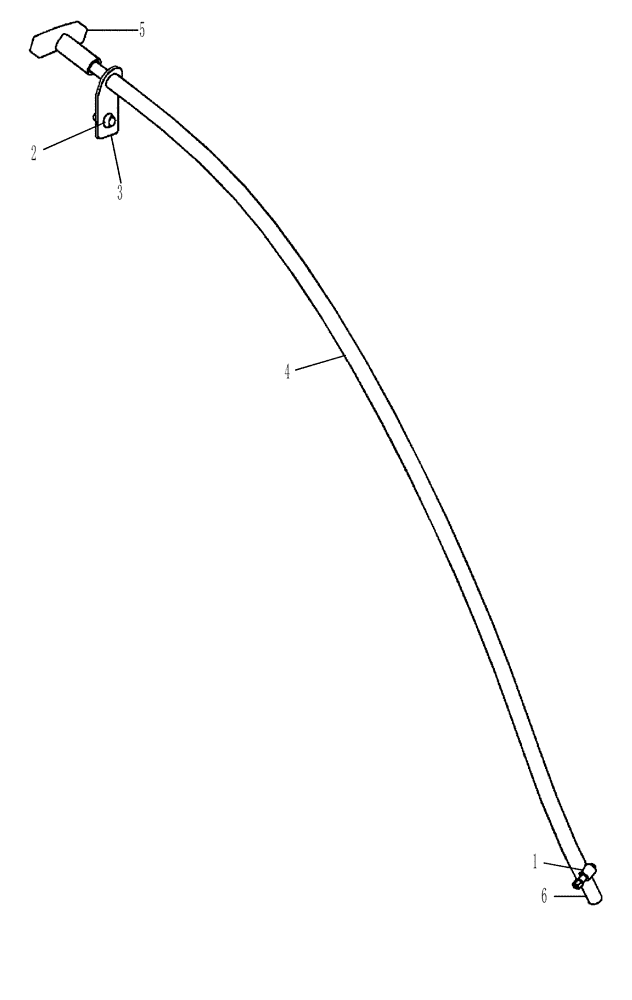

Схема запчастей Case IH TV380 - (10.304.AS) - REMOTE DIPSTICK, OIL (SR200-TV380) (10) - ENGINE
4
1
2
3
6
5

Артикул

Название

Примечание

Количество

1

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

1шт.

2

84163981

FLANGE BOLT,Hex, M6 x 20.56mm

M6x15

1шт.

3

84259455

BRACKET

Dipstick Tube

1шт.

4

84259456

Dipstick

PLASTIC-RUBBER TUBE,9.55mm ID x 886mm L

1шт.

5

84280441

Engine

DIPSTICK

1шт.

6

87578147

ADAPTER

F5C Block To Dipstick

1шт.

6

47566177

ADAPTER

, Start Year: 01-SEP-13

1шт.

7

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

(Not Shown) Use to mount Ref. 3

1шт.

Выбрано товаров: 8
