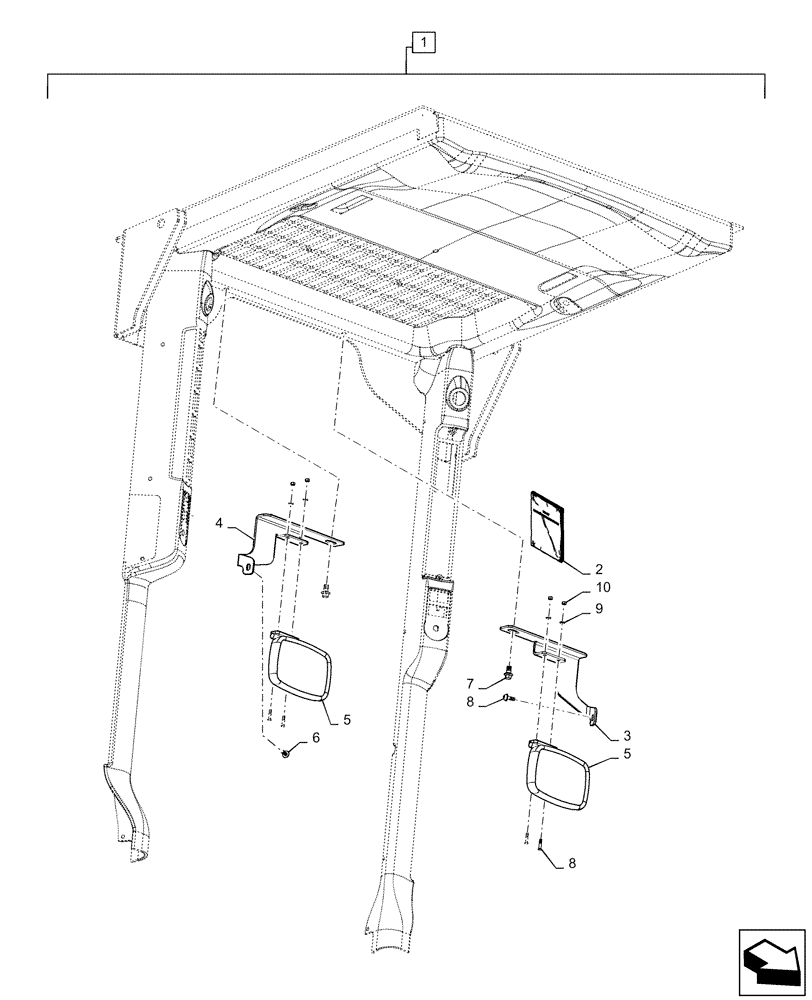

Запчасти Case IH TV380 (88.100.90[21]) - DIA KIT, INSIDE MIRROR (ALL CASE) (88) - ACCESSORIES

1

84355806

DIA, Mirror, Incl 2 - 10

SERVICE KIT

1шт.

2

84363713

Installation

INSTRUCTION

1шт.

3

84369357

Mirror, RH, Gray

BRACKET

1шт.

4

84369358

Mirror, LH, Gray

BRACKET

1шт.

5

3962022

MIRROR,153mm L x 103mm W

2шт.

6

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

7

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

8

43646

SCREW,Phillips Drive, Flat HD, M4 x 20mm, Cl 4.8

4шт.

9

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

10

152799

NUT,Prev Torque, Hex, M4 x 0.7, Cl 5

4шт.
