Запчасти Case IH TV380 (88.100.55[05]) - DIA KIT, MULTI-FUNCTION ELEC EH & MECH VERT (SV250,SV300,TV380, SV185) (88) - ACCESSORIES

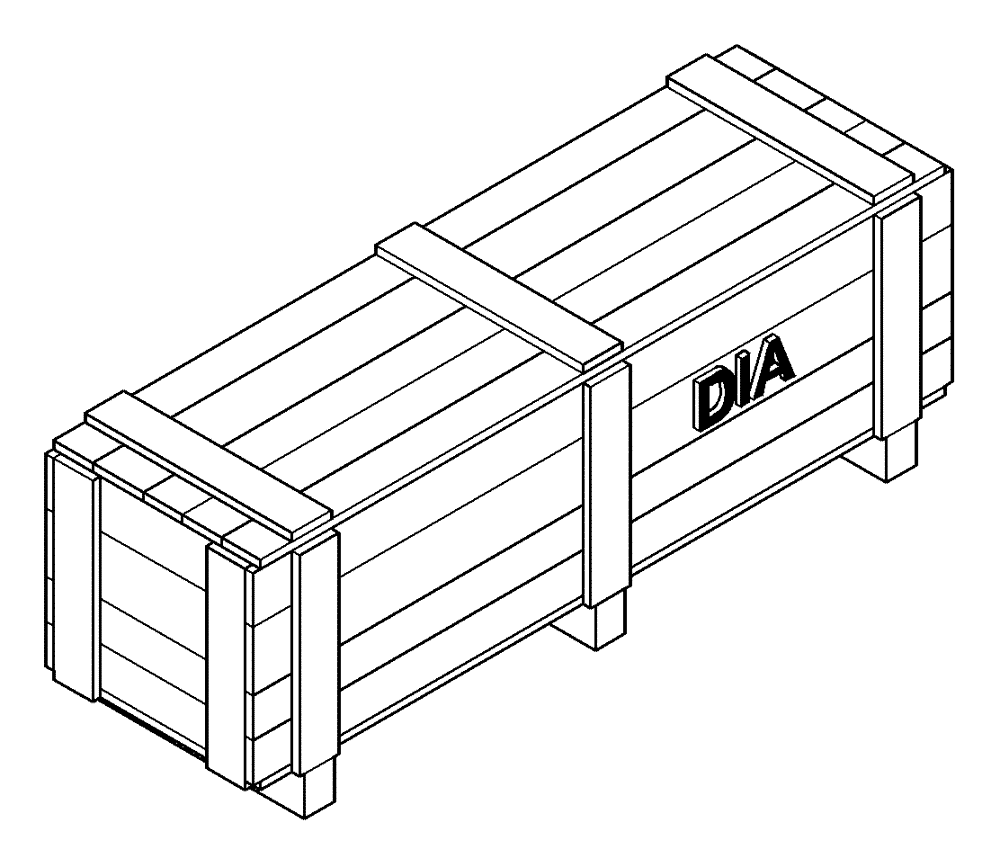

Схема запчастей Case IH TV380 - (88.100.55[05]) - DIA KIT, MULTI-FUNCTION ELEC EH & MECH VERT (SV250,SV300,TV380, SV185) (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

47560382

KIT

Multifunction Electronics, Incl 2 - 10

1шт.

2

47670040

Sheet

INSTRUCTION

1шт.

3

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

4

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

5

84293533

BRACKET, SUPPORTING

Front AUX

1шт.

6

84423501

WIRE HARNESS

Boom

1шт.

7

84467699

CLAMP,25.4mm, Insulated, 8.7mm Bolt Hole - P Type

1шт.

8

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

9

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

10

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

Выбрано товаров: 10
