Запчасти Case IH TV380 (88.100.50[02]) - DIA KIT, COMPLETE HVAC (88) - ACCESSORIES

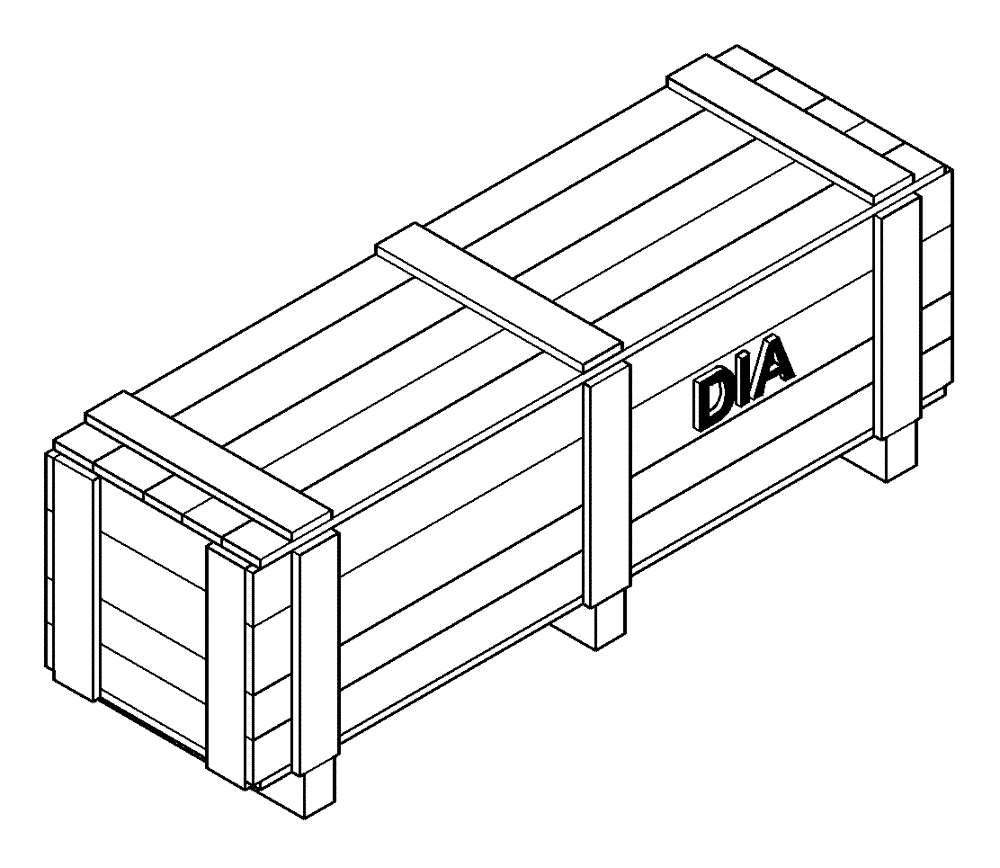

Схема запчастей Case IH TV380 - (88.100.50[02]) - DIA KIT, COMPLETE HVAC (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

47532222

Complete HVAC, Incl 2 - 118

KIT

1шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

3

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

4

263117

CABLE TIE,292.1mm L, Nylon, Black

1шт.

5

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

1шт.

6

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

7

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

8

9706690

NUT,M8 x 1.25, Cl 8

1шт.

9

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

11

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

12

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

13

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

15

9804278

FLANGE NUT,M10 x 1.5, Cl 8

6шт.

16

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

2шт.

17

47376521

CONDENSER

Assy

1шт.

18

47428367

PLATE

Doubler

2шт.

19

47498985

ANGLE

Hood Lock Tab, Gray

1шт.

20

47521067

REINFORCEMENT

LH, Tilt Hood, Gray

1шт.

21

47521161

REINFORCEMENT

RH, Tilt Hood, Gray

1шт.

22

47537889

GAS STRUT,372mm Extended, 327mm Compressed

Enclosed Cab

1шт.

23

47574582

SCREEN

Tilt Hood, Gray

1шт.

24

47627999

HEATER HOSE,15.5mm ID, Formed

1шт.

25

47689101

Wire Harness

MOUNT

1шт.

26

47723346

INSTRUCTION

HVAC Bracket Components, Sheet

1шт.

27

47741862

AIRCOND. COMPRESSOR,12V, W/Clutch, W/ Pulley

Assy

1шт.

28

47821526

RECEIVER-DRYER

Horizontal

1шт.

29

47894003

BRACKET

Spring Mount

2шт.

30

47918644

FASTENER,Pine Tree, 26.9mm L, Nylon

7шт.

31

47919014

DUCT

RH Air, Trim, Fiat Gray

1шт.

32

47919015

DUCT

LH Air, Trim, Fiat Gray

1шт.

33

47919725

BRACKET

Tensioner

1шт.

34

47929819

HVAC Jumper

WIRE HARNESS

1шт.

35

47939973

A/C HOSE

Discharge

1шт.

36

47939974

A/C HOSE

Suction

1шт.

37

47940021

Discharge

A/C HOSE

1шт.

38

47940035

A/C HOSE

Liquid

1шт.

39

47984178

HEATER

W/ HVAC

1шт.

40

47997458

HVAC Kit, Sheet

INSTRUCTION

1шт.

41

48031374

TRIM,Flare, 790mm L

2шт.

42

48033462

SEALING STRIP,684mm L

1шт.

43

48044057

Heater Hoses Kit, Sheet

INSTRUCTION

1шт.

44

48046988

V-BELT,14.24mm W x 963.6mm L, 4 Ribs

1шт.

45

48052200

TRIM PANEL

Rear, Lapbar, Fiat Gray

1шт.

46

48063671

Heat/HVAC Trim, Sheet

INSTRUCTION

1шт.

47

48067802

HVAC Hose Component, Sheet

INSTRUCTION

1шт.

48

82012869

CABLE TIE,300mm L, Nylon, Black

2шт.

49

84245940

VALVE

Water Supply, 3-Way

1шт.

50

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

4шт.

51

84280313

AIR DUCT

Intake

1шт.

52

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

4шт.

53

84322838

PLATE

Cover, Tan

1шт.

54

84322901

PLATE

Cover, Yellow

1шт.

55

84335904

Fan

GUARD

1шт.

56

84338534

SEAL,Bulk 30.48m

Cut to Length, 885mm

1шт.

57

84347258

DECAL

HVAC

1шт.

58

84357678

HOSE,15.5mm ID x 1635mm L

1шт.

59

84359308

HOSE,15.5mm ID x 1656mm L

1шт.

60

84361522

BRACKET

L

1шт.

61

84362109

HOSE PROTECTION,46mm ID x 50mm OD x 1070mm L

1шт.

62

84362126

FOAM INSULATION

Roof

1шт.

63

84370302

FOAM INSULATION

HVAC Box

1шт.

64

84370705

147mm L

BRACKET

1шт.

65

84380240

BRACKET

Relay

1шт.

66

84387904

COMPRESSION SPRING,Extension, 225mm OD x 100mm L

2шт.

67

84388261

BRACKET

Control Rod Sheild

1шт.

68

84410905

Retention Spring

BRACKET

1шт.

69

84411489

FOAM INSULATION

Center Upper Chassis

1шт.

70

84416163

FOAM INSULATION

RH Upper Chassis

2шт.

71

84416164

FOAM INSULATION

RH Upper Chassis

2шт.

72

84483262

BRACKET

Control Rod Sheild, Gray

1шт.

73

84559122

BRACKET

Water Valve & Dryer

1шт.

74

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

75

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

76

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

77

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

78

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

79

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

2шт.

80

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

81

86530043

FITTING,5/8” Y-Fitting

1шт.

82

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

83

86619801

FLANGE NUT,M8 x 1.25, Cl 8

6шт.

84

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

85

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

2шт.

86

86625073

SPRING NUT,M6 x 1

4шт.

87

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

88

86705425

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

1шт.

89

86729669

SWITCH

Blower

1шт.

90

86729670

KNOB

Switch

2шт.

91

86729675

SWITCH,5000 Ohm

Tempurature

1шт.

92

87000227

SWITCH, A/C HIGH PRE

5000 PSI Max

1шт.

93

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

4шт.

94

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

95

87028323

HEX SOC SCREW,Btn Head, M8 x 1.25 x 25mm, Cl 8.8

4шт.

96

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

97

87310592

JAM NUT,7/16" - 28, Gr 5

2шт.

98

87355337

RELAY,12V, 45A

1шт.

99

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

12шт.

100

87555249

SWITCH

A/C

1шт.

101

87567191

HEATER HOSE,5/8” Bulk Roll 500 FT, Supply

Cut to Length, 2120mm

1шт.

102

87567192

HEATER HOSE,5/8” Bulk Roll 500 FT, Return

Cut to Length, 2120mm

1шт.

103

87573379

CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

104

87622384

BUSHING,11mm ID x 20mm OD x 28mm L

1шт.

105

87649945

BRACKET

Compressor Mounting

1шт.

106

87649979

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

107

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

108

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

109

87669161

VENT

Global Louver

6шт.

110

127083A1

ELBOW,16mm OD x 17mm OD Bead

2шт.

111

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

112

348452A1

FASTENER,Push-In, 37mm L, Nylon

10шт.

113

400472A1

SPRING,10mm Rod, 38.1mm Stroke

1шт.

114

412679A2

SPRING,Extension, 22.5mm OD x 173mm L

2шт.

115

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

5шт.

116

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

1шт.

117

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

118

L18331

CABLE TIE,375.9mm L, Nylon, Black

3шт.

Выбрано товаров: 118
