Запчасти Case IH TV380 (88.100.50[01]) - DIA KIT, COMPLETE HEAT (88) - ACCESSORIES

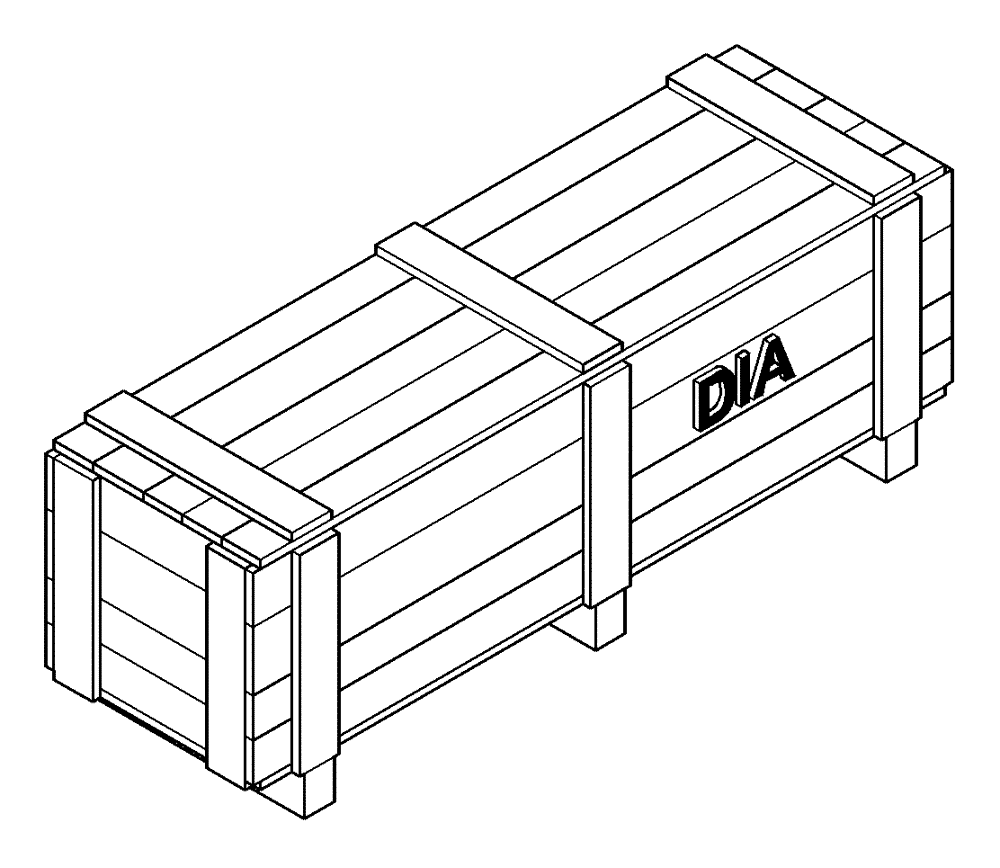

Схема запчастей Case IH TV380 - (88.100.50[01]) - DIA KIT, COMPLETE HEAT (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

47522714

Complete Heat, Incl 2 - 71

KIT

1шт.

2

84559122

BRACKET

Water Valve & Dryer

1шт.

3

84245940

VALVE

Water Supply, 3-Way

1шт.

4

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

5

86530043

FITTING,5/8” Y-Fitting

1шт.

6

47627999

HEATER HOSE,15.5mm ID, Formed

1шт.

7

84357678

HOSE,15.5mm ID x 1635mm L

1шт.

8

84359308

HOSE,15.5mm ID x 1656mm L

1шт.

9

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

10

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

12

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

13

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

12шт.

14

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

3шт.

15

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

16

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

17

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

1шт.

18

84388261

BRACKET

Control Rod Shield

1шт.

19

84483262

BRACKET

Control Rod Shield

1шт.

20

84387904

COMPRESSION SPRING,Extension, 225mm OD x 100mm L

2шт.

21

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

22

84361522

BRACKET

L

1шт.

23

412679A2

SPRING,Extension, 22.5mm OD x 173mm L

2шт.

24

84370705

147mm L

BRACKET

1шт.

25

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

26

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

27

84338534

SEAL,Bulk 30.48m

Cut to Length, 885mm

1шт.

28

87567192

HEATER HOSE,5/8” Bulk Roll 500 FT, Return

Cut to Length, 2120mm

1шт.

29

87567191

HEATER HOSE,5/8” Bulk Roll 500 FT, Supply

Cut to Length, 2120mm

1шт.

30

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

1шт.

31

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

32

127083A1

ELBOW,16mm OD x 17mm OD Bead

2шт.

33

84362109

HOSE PROTECTION,46mm ID x 50mm OD x 1070mm L

1шт.

34

48044057

Heater Hose, Sheet

INSTRUCTION

1шт.

35

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

2шт.

36

47894003

BRACKET

Spring Mount

2шт.

37

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

38

84410905

Retention Spring

BRACKET

1шт.

39

48052200

TRIM PANEL

Rear Trim, Lap Bar, Fiat Gray

1шт.

40

47919014

DUCT

RH Air Trim, Fiat Gray

1шт.

41

47919015

DUCT

LH Air Trim, Fiat Gray

1шт.

42

87669161

VENT

Global Louver

6шт.

43

348452A1

FASTENER,Push-In, 37mm L, Nylon

10шт.

44

47918644

FASTENER,Pine Tree, 26.9mm L, Nylon

7шт.

45

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

4шт.

46

84322838

PLATE

Cover, Tan

1шт.

47

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

4шт.

48

84416163

FOAM INSULATION

RH Upper Chassis

2шт.

49

84411489

FOAM INSULATION

Center Upper Chassis

1шт.

50

84416164

FOAM INSULATION

RH Upper Chassis

2шт.

51

84322901

PLATE

Cover, Yellow

1шт.

52

48033462

SEALING STRIP,684mm L

1шт.

53

48031374

TRIM,Flare, 790mm L

2шт.

54

48063671

Heat/HVAC Trim, Sheet

INSTRUCTION

1шт.

55

47984179

HEATER

Assy

1шт.

56

84370302

FOAM INSULATION

HVAC Box

1шт.

57

84280313

AIR DUCT

Intake

1шт.

58

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

59

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

60

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

61

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

4шт.

62

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

63

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

64

84362126

FOAM INSULATION

Roof

1шт.

65

84347261

DECAL

HVAC Heat Only

1шт.

66

86729675

SWITCH,5000 Ohm

Tempurature

1шт.

67

86729669

SWITCH

Blower

1шт.

68

87310592

JAM NUT,7/16" - 28, Gr 5

2шт.

69

86729670

KNOB

Switch

2шт.

70

47537889

GAS STRUT,372mm Extended, 327mm Compressed

Enclosed Cab

1шт.

71

47997460

Heat Kit, Sheet

INSTRUCTION

1шт.

Выбрано товаров: 71
