Запчасти Case IH TV380 (88.100.35[12]) - DIA KIT, HIGH FLOW AUX - LG VERT (SV250,SV300,TV380) (88) - ACCESSORIES

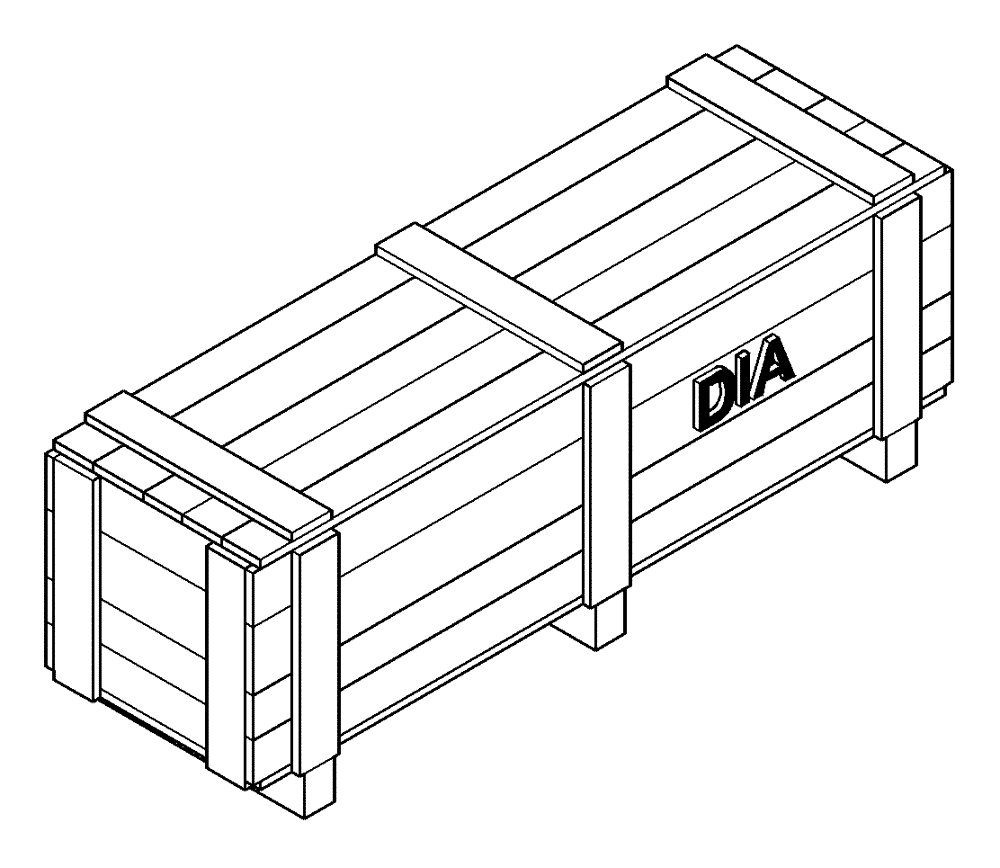

Схема запчастей Case IH TV380 - (88.100.35[12]) - DIA KIT, HIGH FLOW AUX - LG VERT (SV250,SV300,TV380) (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

47630769

High Flow Aux, LG Vert, Incl. 2 - 51

KIT

1шт.

2

47630776

Sheet, High Flow Aux, LG Vert

INSTRUCTION

1шт.

3

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

4

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

5

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

6

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Adapter, 3/4-16

1шт.

7

274754

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

8

286217

90 ELBOW,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

9

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

10

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

11

47447054

VALVE

1шт.

12

84186155

Assembly, High Flow Valve to LDR Valve

TUBE

1шт.

13

84201229

Case Drain

RIGID TUBE

1шт.

14

84251427

SWITCH

Rocker, High Flow

1шт.

15

84254045

CLAMP,66mm L

2шт.

16

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

2шт.

17

84256249

34.1/18.3 Gear

PUMP,34.1 CC

1шт.

18

84256405

HYDRAULIC VALVE

High Flow Combiner

1шт.

19

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Female Quick Coupler

1шт.

20

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Male Quick Coupler

1шт.

21

84269151

FITTING

Gear Pump Suction

1шт.

22

84281606

FLEXIBLE HOSE,19.05mm ID x 1835mm L, SAE 100R17

1шт.

23

84281607

FLEXIBLE HOSE,19.05mm ID x 1875mm L, SAE 100R17

1шт.

24

84282424

HOSE CLAMP

Double

1шт.

25

84297610

RIGID TUBE

Highflow

1шт.

26

84297613

RIGID TUBE

Highflow

1шт.

27

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

28

84306937

COVER PLATE

Tan

1шт.

29

84306939

COVER

Gray

1шт.

30

84323488

SELF-TAP SCREW,Hex Flg, M8 x 70mm

2шт.

31

84329004

HOSE,15.88mm ID x 586mm L, SAE 100R17

High Flow Supply

1шт.

32

84331287

SCREW,HWH, 3/8" - 16 x 3"

2шт.

33

84362111

GUARD,85mm ID x 90mm OD x 1070mm L

Hose

1шт.

34

84373460

PLUG,23.8mm OD

Load Check

1шт.

35

84377512

TUBE

LDR Valve to LFT Tower

1шт.

36

84377514

TUBE

LDR Valve to LFT Tower

1шт.

37

84377527

Aux, High Flow LH Tower

TUBE

1шт.

38

84377529

Aux, High Flow LH Tower

TUBE

1шт.

39

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

40

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

3шт.

41

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

42

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

2шт.

43

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

4шт.

44

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

45

1546028C1

CLAMP,25.4mm ID x 82mm L

2шт.

46

225529A1

CLAMP,Dual, 25.4mm ID

1шт.

47

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

48

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

5шт.

49

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

50

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

51

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

2шт.

Выбрано товаров: 51
