Запчасти Case IH TV380 (88.100.10[19]) - ENGINE ACCESSORIES CAB EU W/SOUND (TV380) (88) - ACCESSORIES

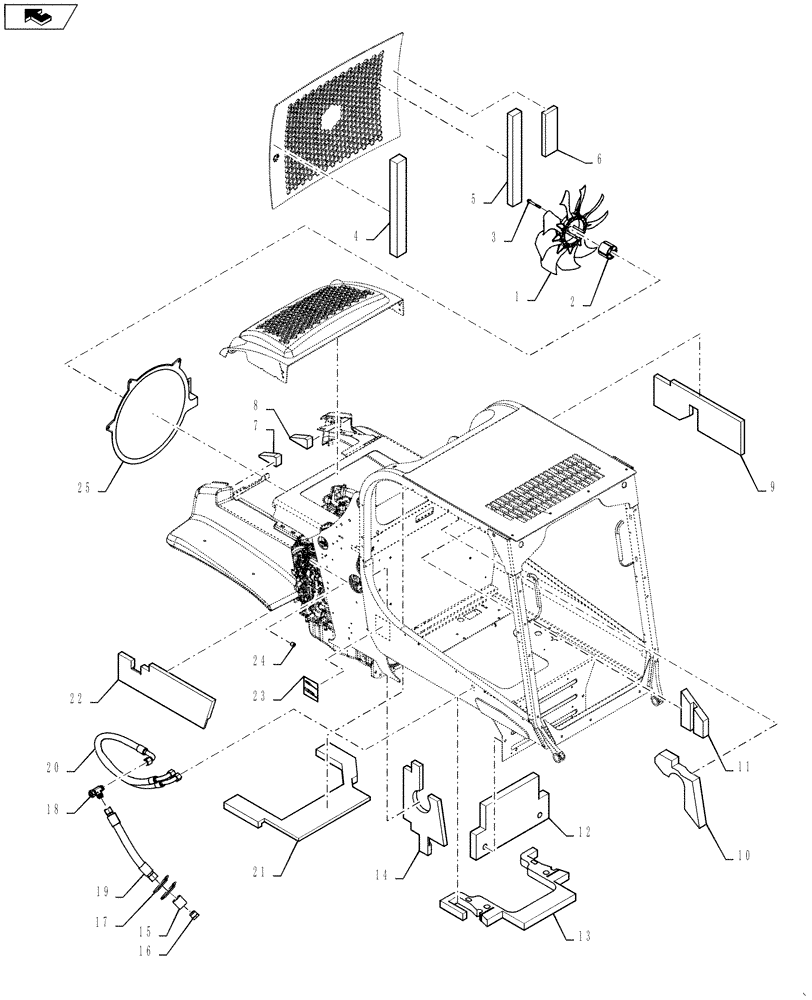

Схема запчастей Case IH TV380 - (88.100.10[19]) - ENGINE ACCESSORIES CAB EU W/SOUND (TV380) (88) - ACCESSORIES
16
6
20
21
13
11
22
4
8
17
home
24
1
14
25
7
10
18
9
23
3
12
15
2
19
5

Артикул

Название

Примечание

Количество

1

47488898

FAN,9 Blades, 480mm OD

Clockwise Pusher 480

1шт.

2

87565746

SPACER

Fan, Chart

1шт.

3

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

4шт.

4

84372988

FOAM INSULATION,584.4mm L x 67.5mm W x 50.8mm Thk

Fan RH

1шт.

5

84372981

FOAM INSULATION

Fan

1шт.

6

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan LH

1шт.

7

84366326

FOAM INSULATION

Chassis RH

1шт.

8

84366329

Chassis LH

FOAM INSULATION,40.5mm W x 118.3mm OAL x 50mm Thick

1шт.

9

84372983

FOAM INSULATION

Tower LH

1шт.

10

84372978

Tower RH

FOAM INSULATION

1шт.

10

47886442

Tower RH, Replaces 10 & 11, Start Year: 14-JUL-15

INSULATION

1шт.

11

84372979

Tower RH

FOAM INSULATION

1шт.

11

47886442

Tower RH, Replaces 10 & 11, Start Year: 14-JUL-15

INSULATION

1шт.

12

84366353

Heal Plate Horizontal

FOAM INSULATION

1шт.

13

84366352

Heal PLate Vertical

FOAM INSULATION

1шт.

14

84372977

Tower RH

FOAM INSULATION

1шт.

15

87595771

Rubber

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

1шт.

16

9790527

PLUG,1-5/16" - 12 JIC

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

18

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

19

87351645

HOSE ASSY.,417mm L

Resonator

1шт.

20

84383953

HOSE ASSY.

Valve Supply

1шт.

21

84372980

Rear Hood

FOAM INSULATION

1шт.

22

84372982

FOAM INSULATION

Tower RH

1шт.

23

87611184

DECAL,LWA 103, 100mm x 110mm

LWA 103

1шт.

24

87461957

STOP

Throttle

1шт.

25

84383957

Metal Insert

SHROUD

1шт.

Выбрано товаров: 27
