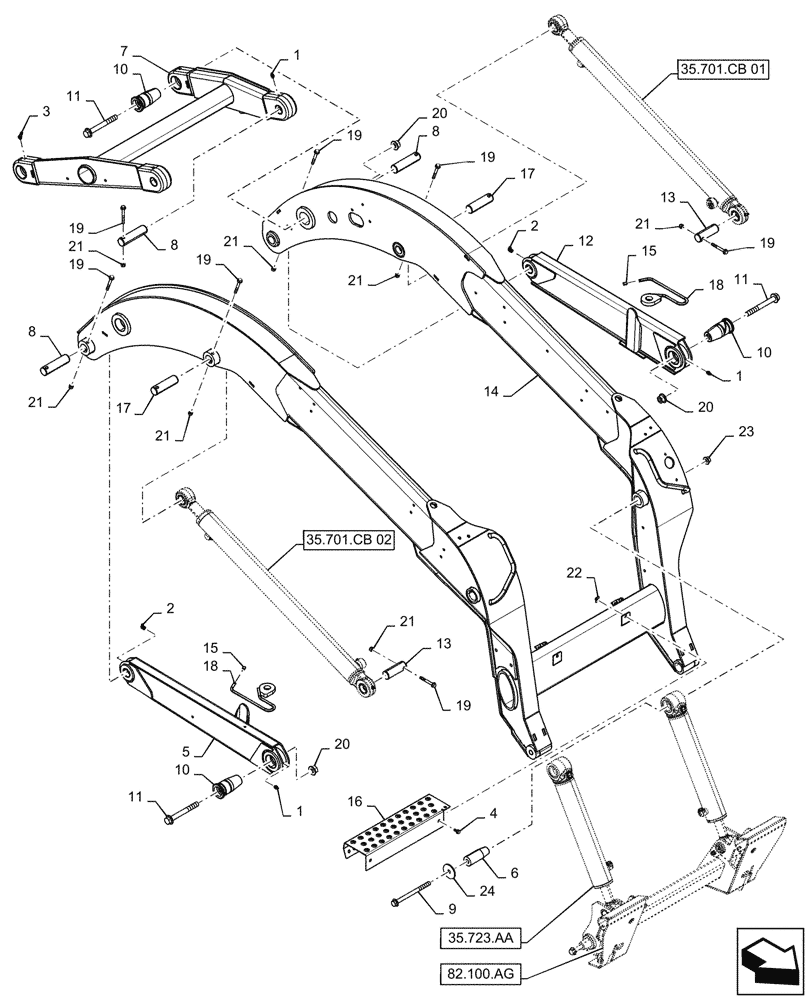

Запчасти Case IH TV380 (84.910.AA) - BOOM (84) - BOOMS, DIPPERS & BUCKETS

1

87414

LUBE NIPPLE,1/4" - 28

4шт.

2

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

3

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

47372604

CONNECTING LINK

RH, Lower, Gray

1шт.

6

47489943

PIN,44.45mm OD x 118.5mm L

Boom to Top Cylinder

2шт.

7

47502239

LINK

H, Gray

1шт.

8

84201510

PIN,38.15mm OD x 146mm L

4шт.

9

84238749

BOLT,Hex Flg, M16 x 210mm, Cl 10.9

2шт.

10

84239550

PIN,60.32mm OD x 126.5mm L

4шт.

11

84246761

FLANGE BOLT,Hvy Hex, M20 x 170mm, Cl 10.9

4шт.

12

84270979

LIFT LINK

LH, Lower, Gray

1шт.

13

84280377

PIN,38.15mm OD x 98mm L

Chassis to Lift Cylinder

2шт.

14

84391760

KIT

Kit, Gray

1шт.

15

84366057

CAP,7.92mm ID x 10.66mm OD x 12.7mm L

Vinyl

2шт.

16

84377147

Loader, Tan, Years: -19-JUL-16

STEP

1шт.

16

48025929

Loader, Tan, Start Year: 20-JUL-16

STEP

1шт.

17

84423056

Boom to Lift Cylinder

PIN,38.15mm OD x 133.3mm L

2шт.

18

84519586

GUIDE

Hose Loop

2шт.

19

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

8шт.

20

86512499

FLANGE NUT,M20 x 2.5, Cl 10

4шт.

21

86512554

NUT,M10 x 1.5, Cl 10

8шт.

22

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

23

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

24

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

2шт.

25

84201509

Boom to Coupler

HUB

2шт.

26

84201515

Boom to Tip Cyl

HUB

2шт.

27

84201513

HUB,101.4mm OD x 121.6mm L

Boom to H-Link

2шт.

28

84201518

HUB,38.5mm ID x 69.85mm OD x 48.5mm L

Boom to Link

2шт.
