Запчасти Case IH TV380 (55.408.AG[01]) - WORKLIGHTS, HORN AND RELATED PARTS (SV250,SV300,TV380) (55) - ELECTRICAL SYSTEMS

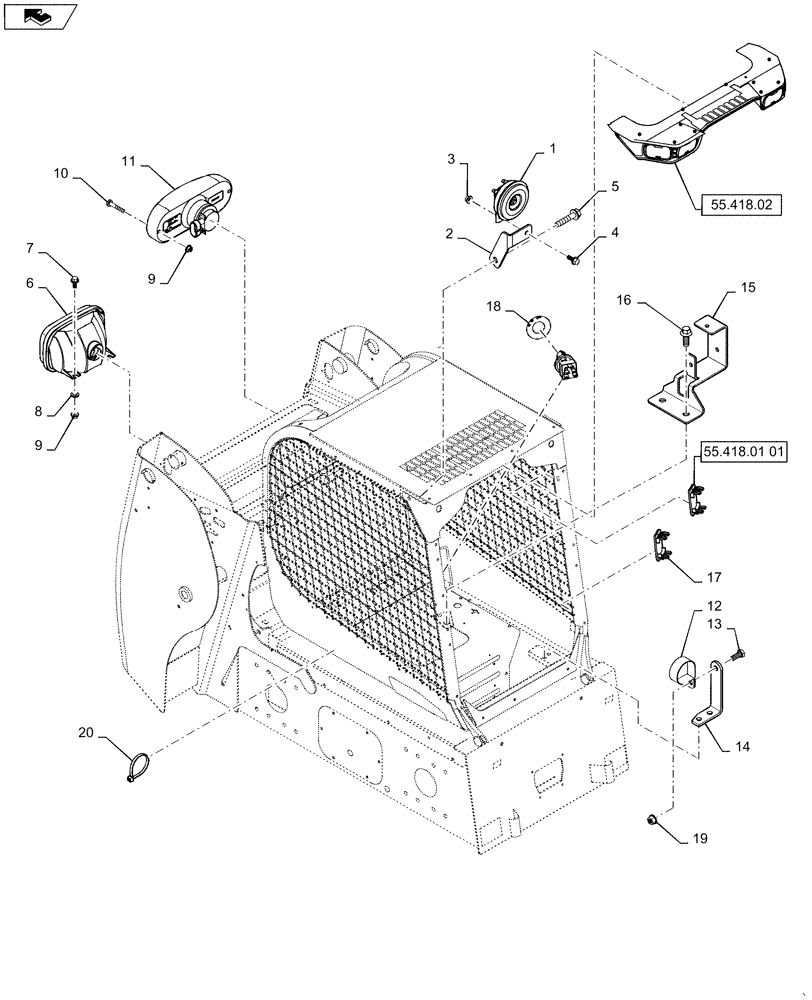

Схема запчастей Case IH TV380 - (55.408.AG[01]) - WORKLIGHTS, HORN AND RELATED PARTS (SV250,SV300,TV380) (55) - ELECTRICAL SYSTEMS
55.418.02
7
11
8
4
55.418.01 01
13
14
5
2
3
1
9
10
home
15
17
20
18
16
6
9
12
19

Артикул

Название

Примечание

Количество

1

87714969

HORN

W/ Breather

1шт.

2

84545953

BRACKET, SUPPORTING

Horn

1шт.

3

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

4

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

5

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

Hood Lock

1шт.

6

84306337

WORK LAMP,12V, 37.5W, Clear

2шт.

7

86511838

BOLT,Hvy Hex, M5 x 12mm, Cl 8.8, Full Thd

4шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

9

86512495

FLANGE NUT,Hex, M5, Cl 8

8шт.

10

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

4шт.

11

87627854

LIGHT ASSY.,12V, 27W, Red

Tail/Stop

2шт.

12

126844A1

PLUG,1.427” x .62” , Plastic

Cover

1шт.

13

84564792

EST Diagnostic

BRACKET

1шт.

14

L11541

CABLE TIE,203.2mm L, Nylon

10шт.

15

84296194

FCI Connector Support

BRACKET, SUPPORTING

1шт.

16

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

2шт.

Выбрано товаров: 16
