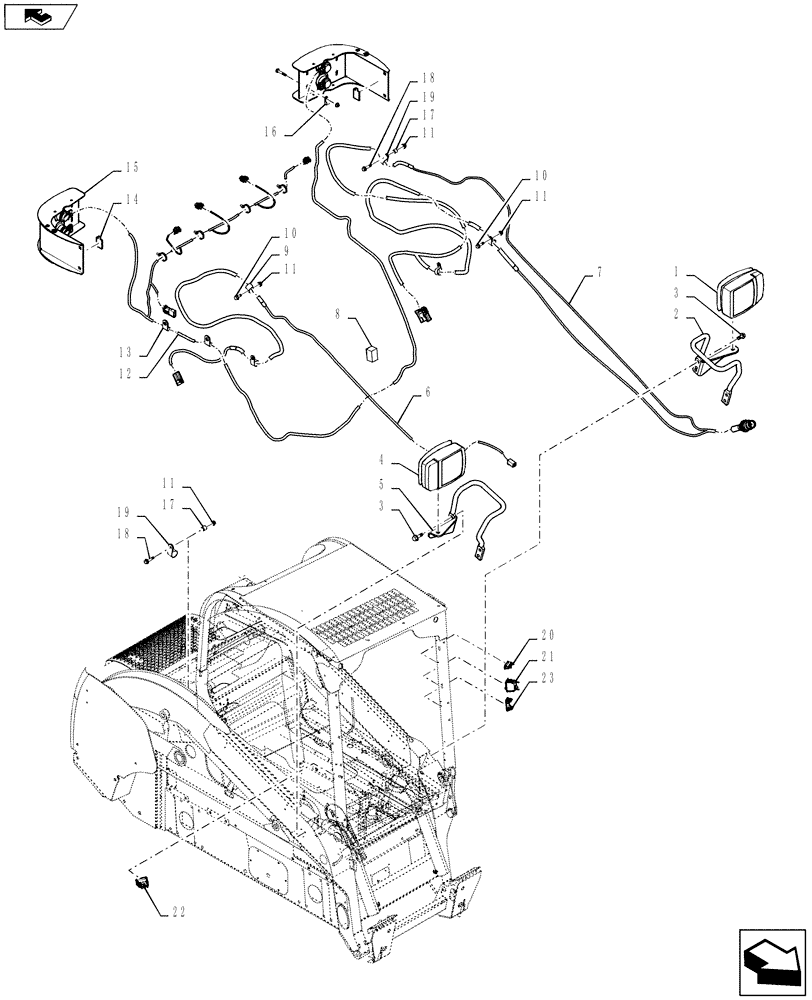

Запчасти Case IH TV380 (55.404.CY[01]) - EU ROAD LIGHTS LG VERT CASE (SV250,SV300,TV380) (55) - ELECTRICAL SYSTEMS

1

87572860

LAMP

Light Combination LH, Incl. Ref. 24 & 25

1шт.

2

84306583

BRACKET

Light LH

1шт.

3

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

4

87572859

LAMP

Light Combination RH, Incl. Ref. 24 & 25

1шт.

5

84306585

BRACKET

Light RH

1шт.

6

84262452

EU Road Lights

WIRE HARNESS

1шт.

7

84420530

WIRE HARNESS

Boom LH Vert

1шт.

8

9821783

FLASHER UNIT

1шт.

9

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.

12

84383285

Rear Road Jumper

WIRE HARNESS

1шт.

13

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

14

84416164

FOAM INSULATION

Upper Chassis Short

2шт.

15

84384439

Work, Rear Assy

REVERSING LAMP ASSY

1шт.

16

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

2шт.

17

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

2шт.

18

87015934

BOLT,Hvy Hex Flange , M8 x 35mm, Cl 8.8

2шт.

19

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

20

86604657

INDICATOR, TURN SIGN

1шт.

21

87634133

SWITCH

Rocker, Hazard Lights

1шт.

22

131691A1

ROCKER SWITCH

Rocker, Turn Signal

1шт.

23

84263153

SWITCH

Rocker, Loader Lockout

1шт.

24

139119A1

BULB,#886, 12V, 50W

Head Lamp (Not Shown)

2шт.

25

87642985

BULB,3157, 12V, 26.5W, Clear

Turn Signal (Not Shown)

2шт.
