Запчасти Case IH TR340 (10.216.010) - FUEL TANK & ASSOCIATED PARTS (10) - ENGINE

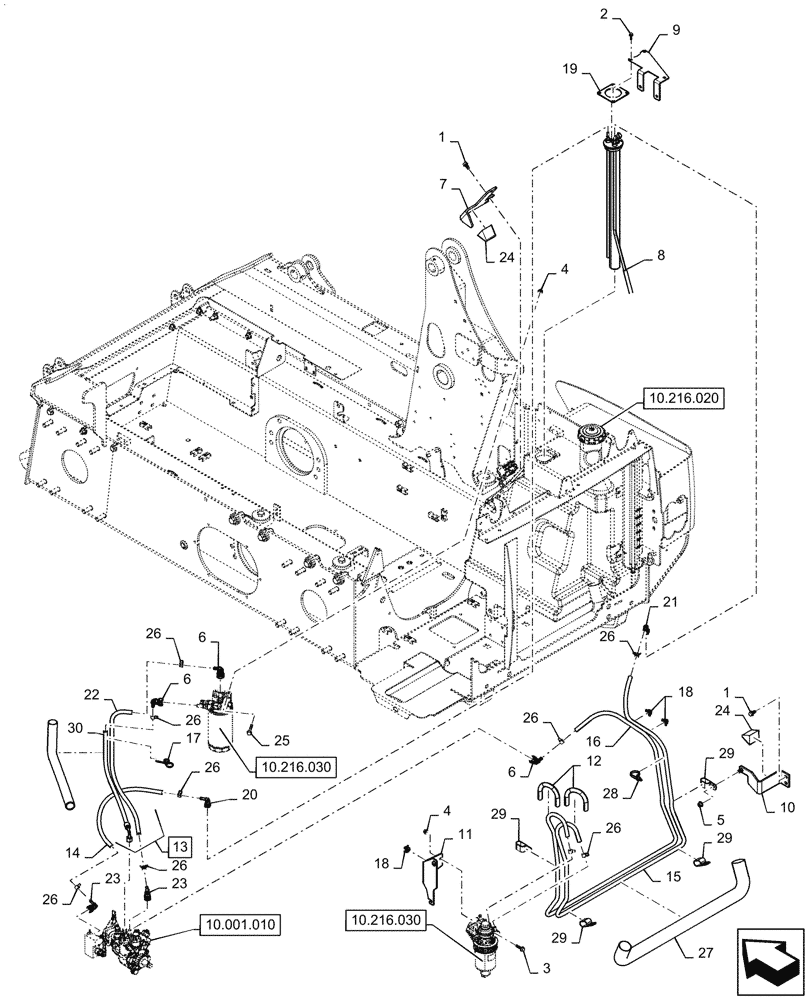

Схема запчастей Case IH TR340 - (10.216.010) - FUEL TANK & ASSOCIATED PARTS (10) - ENGINE
10.216.030
29
10
17
8
11
16
4
7
26
2
5
24
26
9
1
21
15
29
3
26
30
23
26
26
23
12
24
19
27
26
4
18
6
29
29
26
28
22
6
20
14
18
25
1
26
6
13
10.001.010
10.216.020
10.216.030

Артикул

Название

Примечание

Количество

1

637964

SELF-TAP SCREW,Hex, 3/8" - 16 x 3/4"

4шт.

2

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

3

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

5

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

6

47566816

FITTING,Fuel, 5/16" Hose Barb x 11.8mm J2044

3шт.

7

47653457

BRACKET

Fuel Tank, Gray

1шт.

8

47747587

SENDER UNIT

Fuel

1шт.

9

47770018

Fuel Line Routing

BRACKET

1шт.

10

47771232

Tank Retainer

BRACKET

1шт.

11

47786281

Fuel Filter Mounting

BRACKET

1шт.

12

47919136

Cut to Length, 200mm L

SLEEVE,15.88mm ID Hose Guard, Bulk Roll

2шт.

13

47923876

Bundle Assy, Incl 22, 30

FUEL HOSE

1шт.

14

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Fuel Return to Tank, Cut to Length, 1.48FT L

1шт.

15

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Tank to Rear Door Filter, Cut to Length 7.35FT L

1шт.

16

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Rear Door Filter to Stage 1 Pump, Cut to Length, 7.35FT L

1шт.

17

82013031

CABLE TIE,193mm L

1шт.

18

84259663

CABLE TIE,228.6mm L, Nylon, Black

3шт.

19

84338049

MOUNTING PLATE

Fuel Sender Retaining

1шт.

20

84350217

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 5/16" Voss

1шт.

21

84350218

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 3/8" Voss

1шт.

22

47923852

FUEL HOSE

678mm L, Stage 1 Pump to Chassis Mounted Filter

1шт.

23

84553918

FITTING,90 Degree Quick Connect, 9.89mm Hose Bead

2шт.

24

84602030

PAD

Foam

2шт.

25

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

26

87436932

CLAMP,13.9mm - 15.5mm, Spring

9шт.

27

87439990

GUARD,46mm ID x 900mm L, Nylon Woven

1шт.

28

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

29

L302731

CLAMP,19mm D Clamping Pipes

Hose, 15mm

4шт.

30

47923867

W/ 90 Degree Fitting, Chassis Mounted Fuel Filter to Injection Pump

FUEL HOSE,560mm L

1шт.

Выбрано товаров: 30
