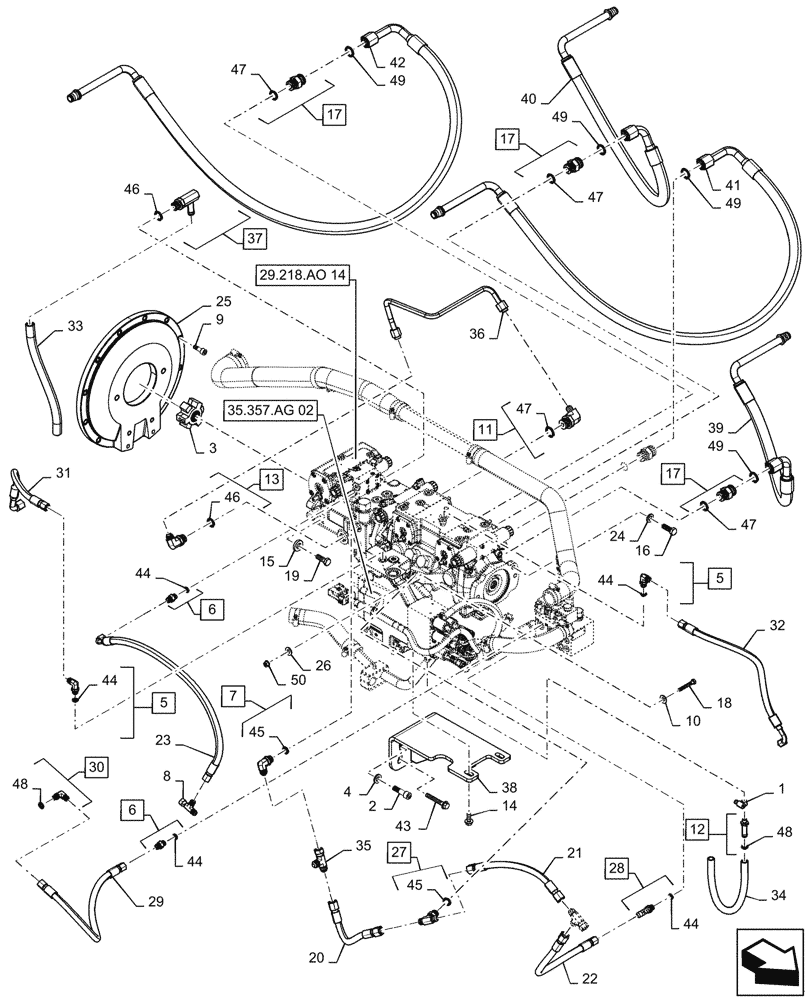

Запчасти Case IH TR340 (29.204.AB[05]) - HYDROSTATIC PUMP, DRIVE LINES, EHF (19-NOV-2015 & PRIOR) (29) - HYDROSTATIC DRIVE

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

4шт.

2

15734

SCREW,Hex Socket, 1/2" - 13 x 1-3/4"

2шт.

3

87711337

COUPLING,19T, 1-1/8" ID

1шт.

4

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

5

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 44

3шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 44

2шт.

7

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 45

1шт.

8

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

9

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

10шт.

10

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

11

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

Incl 47

1шт.

12

87314487

Incl 48

HYD CONNECTOR,7/16" - 20 ORB x 1/2" Hose Barb

1шт.

13

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 46

1шт.

14

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

15

86637955

WASHER,0.66" ID x 1.25" OD x 0.24" Thk

2шт.

16

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

17

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 47

4шт.

18

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

19

86508732

BOLT,5/8"-11 x 2.391" Cl 8

2шт.

20

47645579

Hydraulic, P1 to P2, Charge

TUBE,10mm ID x 313mm L

1шт.

21

47645585

Hydraulic,Charge Supply, A20

HOSE,10mm ID x 330mm L

1шт.

22

47645586

Hydraulic, Charge Supply, Brake

HOSE,10mm ID x 527mm L

1шт.

23

47647454

Hydraulic, Pump Interlock

HOSE,10mm ID x 733mm L

1шт.

24

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

25

47659211

Flywheel

COVER

1шт.

26

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

27

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

Incl 45

1шт.

28

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 44, Years: -02-OCT-16

1шт.

28

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

, Start Year: 03-OCT-16

1шт.

29

84288343

FLEXIBLE HOSE,9.53mm ID x 750mm L, SAE 100R17

EH Control to Brake

1шт.

30

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 48

1шт.

31

84356615

Charge Supply Loader Valve

HYDRAULIC HOSE,9.53mm ID x 402mm L, SAE 100R17

1шт.

32

84356618

Pump to Brake

HYDRAULIC HOSE,9.53mm ID x 592mm L, SAE 100R17

1шт.

33

84356619

EHF Drain, Years: -20-NOV-15

HYDRAULIC HOSE,15.88mm ID x 335mm L

1шт.

33

47919061

HOSE,16mm ID x 535mm L

EHF Drain, Start Year: 21-NOV-15

1шт.

34

84373394

EH Aux to EH Aux Drain

HOSE,12.7mm ID x 410mm L

1шт.

35

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

36

84387079

EHF Pump Drain

HYD TUBE,12.7mm OD

1шт.

37

84473278

Incl 46

FITTING,7/8"-14 ORB x 15.88mm OD Bead x M10 x 1.0

1шт.

38

84549585

MOUNTING PLATE

1шт.

39

84560846

HOSE ASSY.,19.05mm ID x 677mm L, SAE 100R19

Hydraulic, Loop

1шт.

40

84560847

HOSE ASSY.,19.05mm ID x 957mm L, SAE 100R19

Hydraulic, Loop

1шт.

41

84560849

HOSE ASSY.,19.05mm ID x 1572mm L, SAE 100R19

Hydraulic, Loop

1шт.

42

84560851

HOSE ASSY.,19.05mm ID x 1647mm L, SAE 100R19

Hydraulic, Loop

1шт.

43

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

2шт.

44

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

45

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

46

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

47

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

5шт.

48

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

49

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

50

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.
