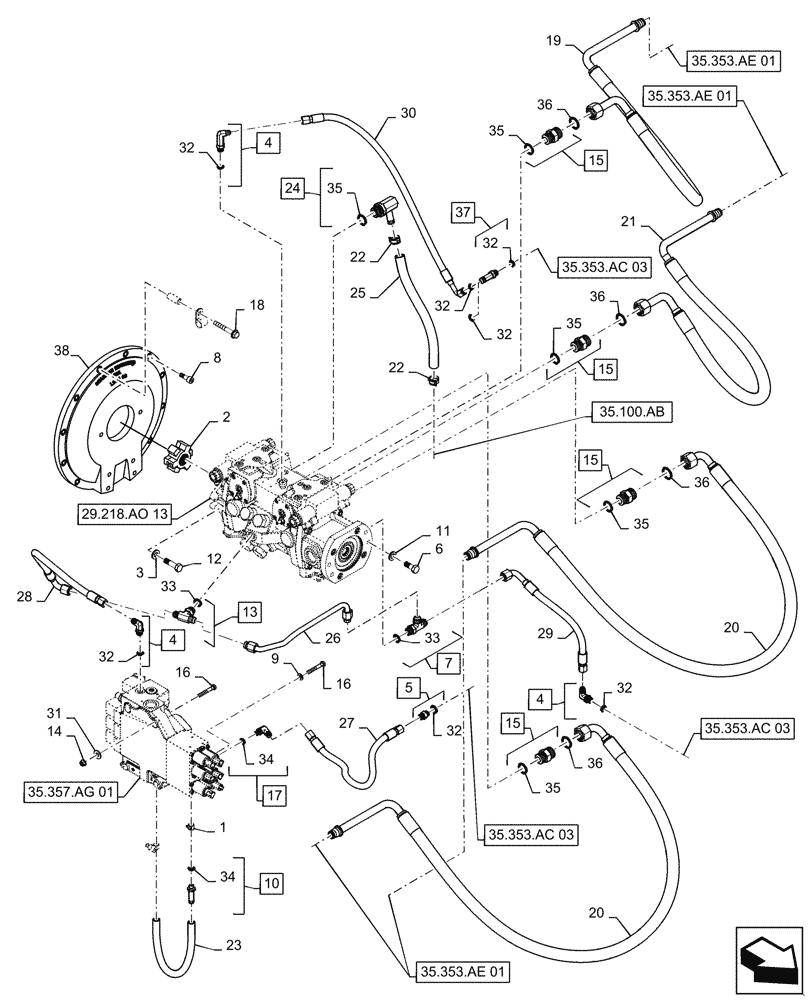

Запчасти Case IH TR340 (29.204.AB[03]) - HYDROSTATIC PUMP, DRIVE LINES, E-H CONTROLS (19-NOV-2015 & PRIOR) (29) - HYDROSTATIC DRIVE

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

2

87711337

COUPLING,19T, 1-1/8" ID

1шт.

3

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 32

3шт.

5

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 32

1шт.

6

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

7

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

Incl 33

1шт.

8

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

9шт.

9

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

10

87314487

Incl 34

HYD CONNECTOR,7/16" - 20 ORB x 1/2" Hose Barb

1шт.

11

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

12

9790095

BOLT,1/2" - 13 x 1-3/4", Gr 8

2шт.

13

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

Incl 33

1шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

15

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 35

4шт.

16

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

17

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 34

1шт.

18

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

1шт.

19

84560835

FLEXIBLE HOSE,19.05mm ID x 959mm L, SAE 100R19

Hydraulic Loop

1шт.

20

84560833

FLEXIBLE HOSE,19.05mm ID x 1533mm L, SAE 100R19

Hydraulic Loop

2шт.

21

84560832

FLEXIBLE HOSE,19.05mm ID x 959mm L, SAE 100R19

Hydraulic Loop

1шт.

22

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

23

84373394

EH Aux to EH Aux Drain

HOSE,12.7mm ID x 410mm L

1шт.

24

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

Incl 35

1шт.

25

84273645

HOSE,15.88mm ID x 327mm L

EH Pump Drain

1шт.

26

84349300

RIGID TUBE,12.7mm OD

EH Charge Supply

1шт.

27

84288343

FLEXIBLE HOSE,9.53mm ID x 750mm L, SAE 100R17

EH Control to Brake

1шт.

28

84299736

FLEXIBLE HOSE,9.53mm ID x 512mm L, SAE 100R17

EH Valve Interlock

1шт.

29

84299737

FLEXIBLE HOSE,9.53mm ID x 377.8mm L, SAE 100R17

EH Brake Charge

1шт.

30

84309599

FLEXIBLE HOSE,9.53mm ID x 780mm L, SAE 100R17

EH Brake

1шт.

31

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

32

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

33

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

34

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

35

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

5шт.

36

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

37

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 32, Years: -02-OCT-16

1шт.

37

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

, Start Year: 03-OCT-16

1шт.

38

47659227

COVER

Flywheel, W/O EHF

1шт.

38

47659211

Flywheel, W/ EHF

COVER

1шт.
