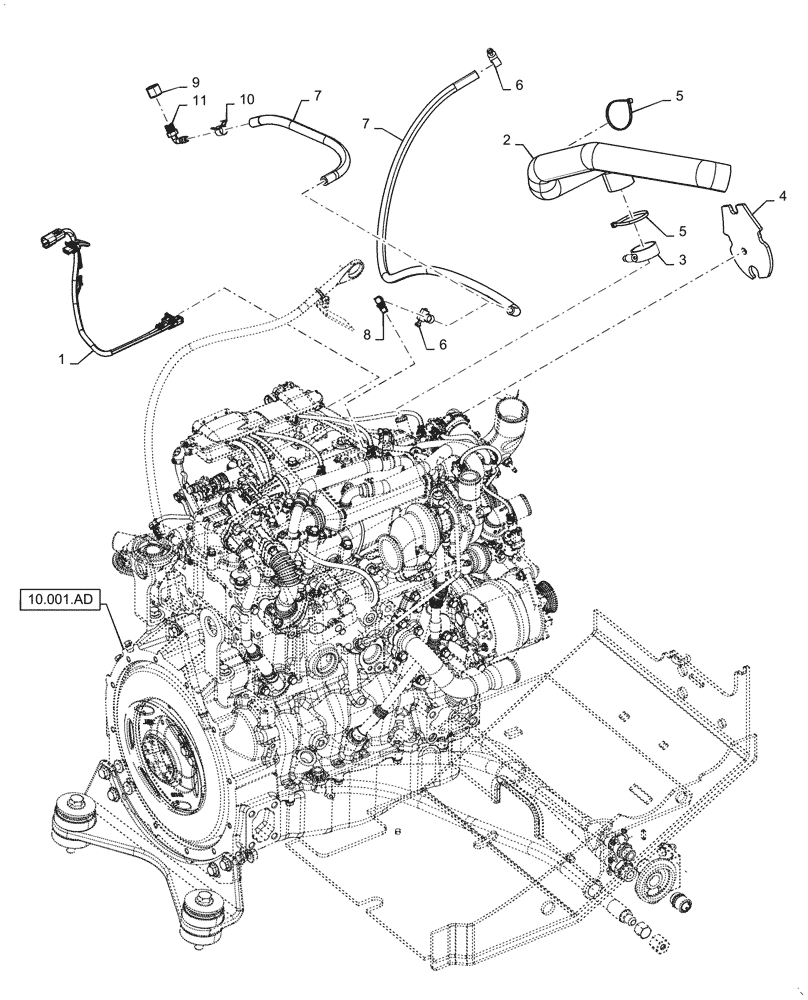

Запчасти Case IH TR340 (55.015.AG) - CCV JUMPER HARNESS & HOSE ASSY. (55) - ELECTRICAL SYSTEMS

1

47717315

WIRE HARNESS

CCV Jumper

1шт.

2

47713699

CCV, Assy

HOSE

1шт.

3

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

4

47817431

FOAM INSULATION

151.8mm L x 6.35mm Thk, CCV Cover

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

, Years: -29-AUG-16

2шт.

5

84266050

CABLE TIE,384mm L, Polyamide

, Start Year: 30-AUG-16

2шт.

6

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

7

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Cut to Length, 3.3 FT, Years: -29-AUG-16

1шт.

7

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Cut to Length, 1 FT , Start Year: 30-AUG-16

1шт.

8

47825477

90° Elbow

HOSE FITTING

1шт.

To EGR Barb 5/16"

1шт.

9

48035569

, Start Year: 30-AUG-16

CAP,NPT 1/4" Nylon

1шт.

10

87436932

CLAMP,13.9mm - 15.5mm, Spring

, Start Year: 30-AUG-16

2шт.

11

47591117

, Start Year: 30-AUG-16

FITTING,90 Degree Elbow, 5/16" Barb x 1/4" - 18 Male NPT

1шт.
