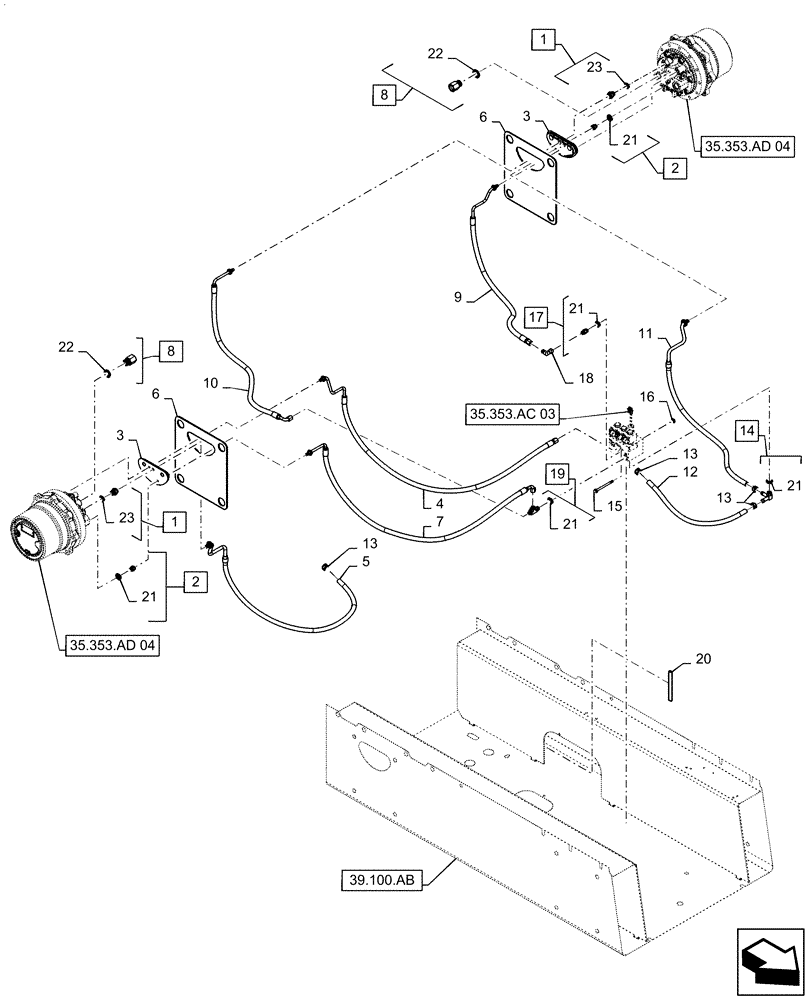

Запчасти Case IH TR340 (35.353.AE[01]) - HYDROSTATIC MOTOR LINES, 2-SPEED MECHANICAL CONTROLS (02-OCT-2016 & PRIOR) (35) - HYDRAULIC SYSTEMS

1

84277065

ADAPTER,3/4" - 16 ORB x -8 Fem Quick Lock

Incl 23

2шт.

2

84277064

ADAPTER,9/16" - 18 ORB x -6 Fem Quick Lock

Incl 21

4шт.

3

84331670

179mm L, Chassis, Years: -05-JAN-16

GROMMET

2шт.

3

47893401

GROMMET

Chassis, Start Year: 06-JAN-16

2шт.

4

84280449

9.52mm OD, RH, Brake

RIGID TUBE

1шт.

5

84280444

12.7mm OD, RH, Case Drain

RIGID TUBE

1шт.

6

84331873

PLATE

Grommet, 347mm L

2шт.

7

84280452

RH, 2-Speed

FLEXIBLE HOSE,9.53mm ID x 1245mm L, SAE 100R1

1шт.

8

84277066

Female, HP Quick Lok, Incl 22, Years: -05-JAN-16

ADAPTER,- 12 Fem Quick Lock HP x 1-1/16" - 12, - A3512 ORB

4шт.

8

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

, Start Year: 06-JAN-16

4шт.

9

84280448

9.52mm OD, LH, Brake

RIGID TUBE

1шт.

10

84280451

LH, 2-Speed

FLEXIBLE HOSE,9.53mm ID x 1045mm L, SAE 100R1

1шт.

11

84280443

12.7mm OD, LH, Case Drain

HYD TUBE

1шт.

12

84257173

Brake Drain

HOSE,12.7mm ID x 570mm L

1шт.

13

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

4шт.

14

84187294

Incl 21

ADAPTER,12.7mm OD Hose Bead x 12.7mm Hose Bead x 9/16" - 18 ORB

1шт.

15

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

2шт.

16

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

17

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 21

1шт.

18

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

19

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 21

1шт.

20

84353803

TRIM,30.48m Bulk

480mm L

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

22

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
