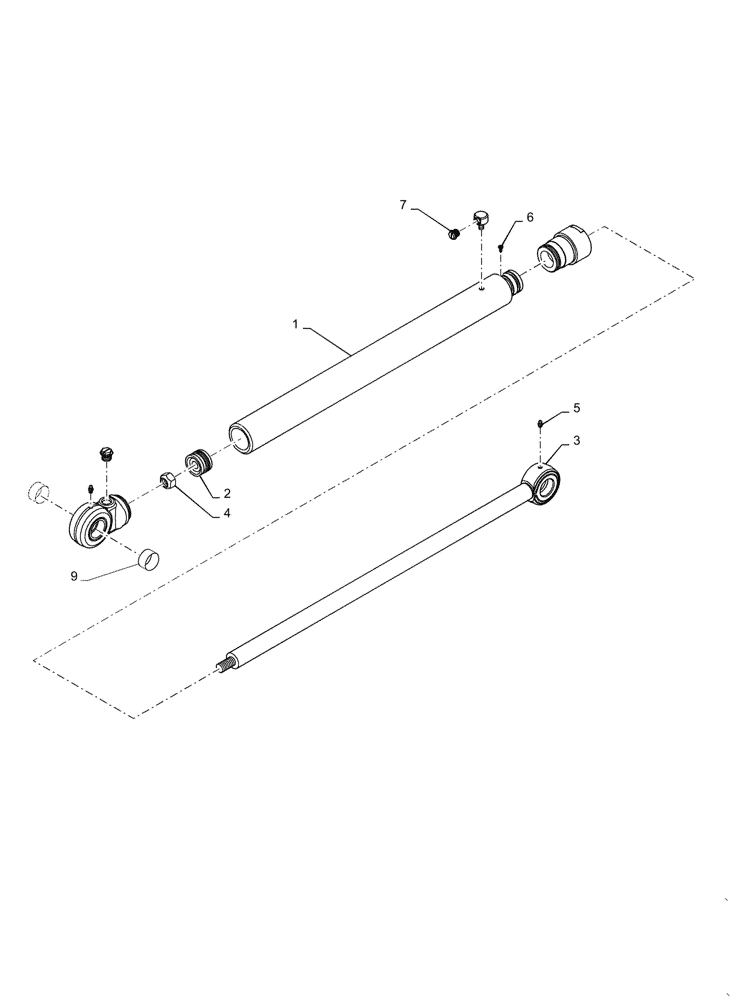

Запчасти Case IH TR320 (35.730.01) - HYDRAULIC LIFT CYLINDER, LH & RH (35) - HYDRAULIC SYSTEMS

47364858

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 817.9mm Stroke

Hydraulic, Lift, Gray, 69.9 X 44.5, Incl. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, W

1шт.

2

NSS

NOT SOLD SEPARAT

Package, Piston-Gland

1шт.

3

84575708

ROD

1шт.

No Replaceable Bushing or Hub Available

1шт.

4

514101

LOCK NUT,Hex, 1" - 14

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

2шт.

6

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Locking

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

3/4-16

2шт.

8

47364907

SERVICE KIT

Cylinder Repair Kit (Not Shown)

1шт.

9

84241617

BUSHING,38.35mm ID x 47.62 OD x 18.8mm L

Tube End

2шт.
