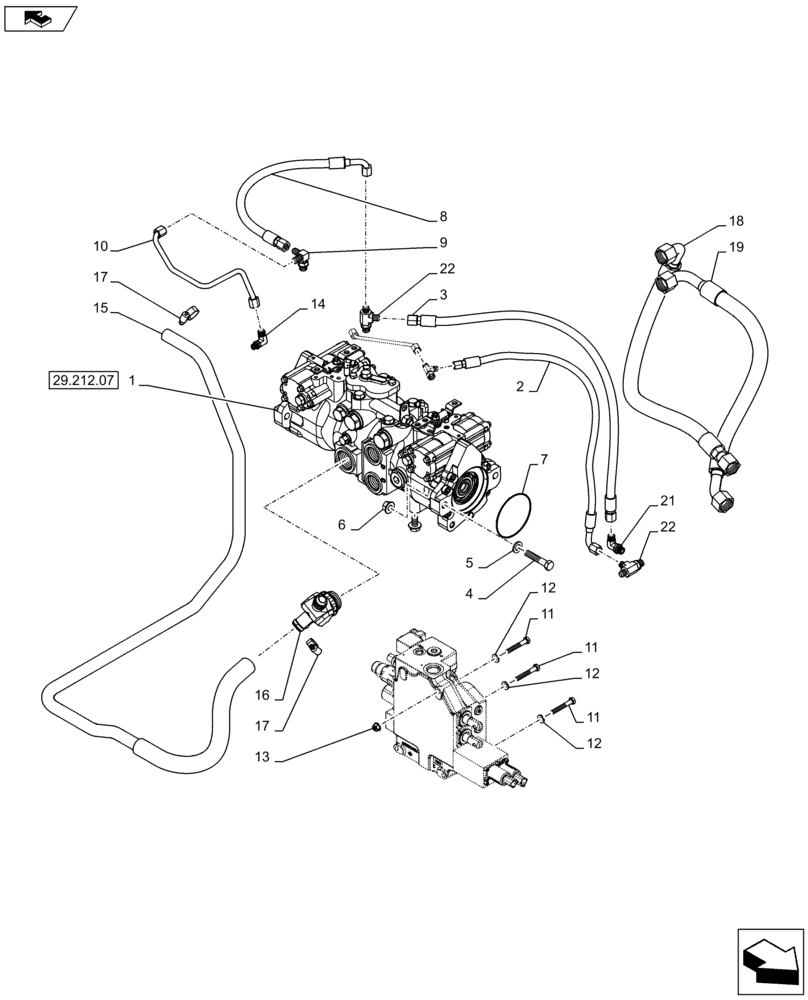

Запчасти Case IH TR320 (35.359.02[02]) - PUMP, MECHANICAL (TR320,TV380) (35) - HYDRAULIC SYSTEMS

1

84322471

Tandem, 46cc MDC: See Figures 29.212.06

HYDROSTATIC PUMP,46 CC

1шт.

1

84322471R

REMAN-HYD PUMP

Tandem, 46cc

1шт.

1

84322471C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

84257175

HOSE ASSY.,6.35mm ID x 650mm L, SAE 100R17

Brake

1шт.

3

84257174

HOSE ASSY.,9.53mm ID x 765mm L, SAE 100R17

Charge to Brake

1шт.

4

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

5

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

6

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

7

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.

8

84259516

FLEXIBLE HOSE,9.53mm ID x 482.3mm L, SAE 100R17

Assembly, LV Interlock

1шт.

9

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

10

84373389

RIGID TUBE,9.53mm OD

Assembly, EH, Aux Charge

1шт.

11

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

12

87655042

M8, 8.80 X 17.5 X 2.2 HTS

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

5шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

14

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

15

84280437

FLEXIBLE HOSE,25.4mm ID x 425mm L, SAE 100R4

Assembly, Charge Supply

1шт.

16

84420269

FITTING,1-5/8" - 12 ORB x 1-1/16" - 12 JIC x -16 Hose Barb

Fitting, 60 -20MB, -16 Bead, -12MJ

1шт.

17

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

2шт.

18

84258848

Assembly, Loop, Includes O-Ring

FLEXIBLE HOSE,19.05mm ID x 896mm L, SAE 100R19

1шт.

18

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16, ORFS

2шт.

19

84467700

Assembly, Loop

FLEXIBLE HOSE,19.05mm ID x 664mm L, SAE 100R19

1шт.

20

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

Flange, M12 X 20 Full

1шт.

21

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

22

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.
