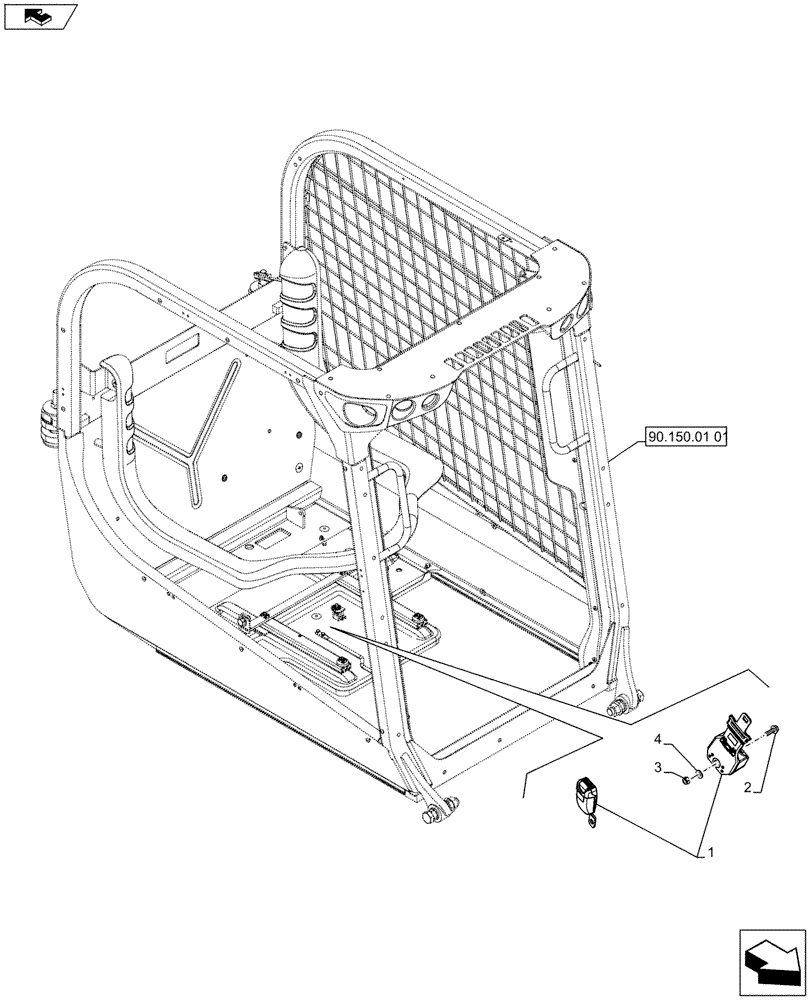

Запчасти Case IH TR320 (90.120.07[01]) - SEAT BELT, 2 POINT RETRACTOR, 2 INCH WEB (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

Схема запчастей Case IH TR320 - (90.120.07[01]) - SEAT BELT, 2 POINT RETRACTOR, 2 INCH WEB (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
90.150.01 01
home
3
1
4

Артикул

Название

Примечание

Количество

1

84174264

SEAT BELT,51mm W x 1447mm L

2 Pt Retractor, Case 2 In Web

1шт.

2

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

3

86512554

NUT,M10 x 1.5, Cl 10

1шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

Выбрано товаров: 4
