Запчасти Case IH TR320 (05.100.03[01]) - FILTERS (05) - SERVICE & MAINTENANCE

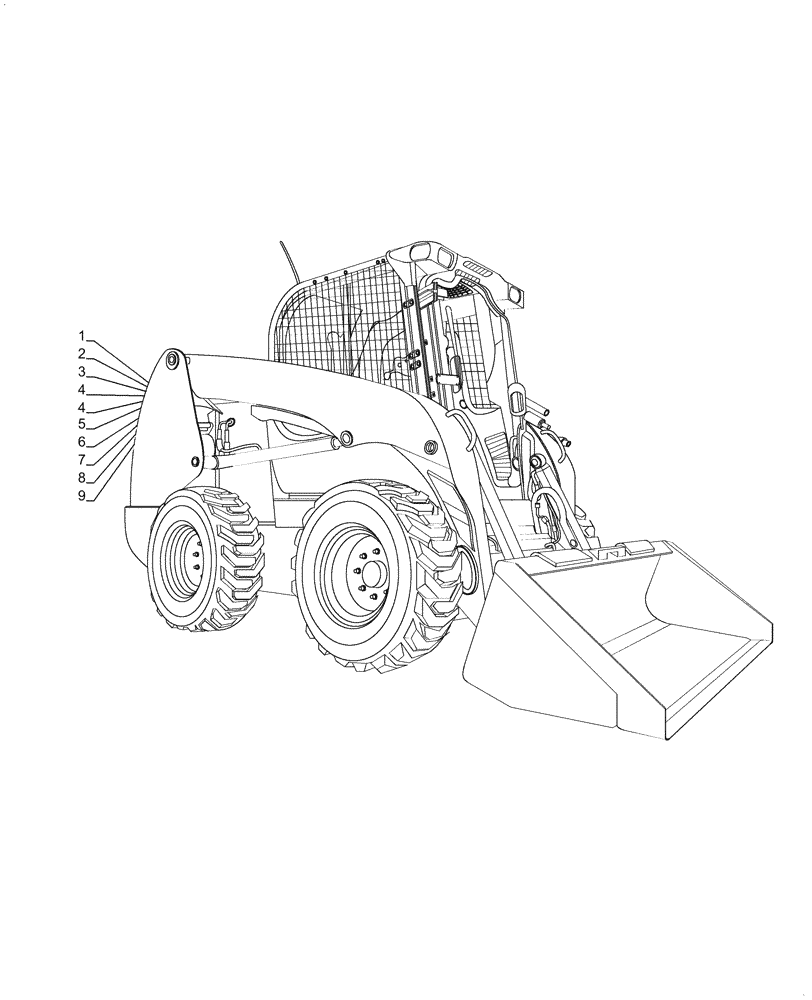

Схема запчастей Case IH TR320 - (05.100.03[01]) - FILTERS (05) - SERVICE & MAINTENANCE
4
5
7
6
9
1
3
4
8
2

Артикул

Название

Примечание

Количество

1

47535939

ENGINE OIL FILTER,97.5mm OD x 92mm L, M27 x 2, 30 Micron

F5C

1шт.

2

87682993

AIR FILTER,91mm ID x 164.5mm OD x 347.5mm L

Primary

1шт.

3

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary

1шт.

4

47456328

ELEMENT

Hydraulic Filter

1шт.

5

84299977

ELEMENT

Fuel Filter

1шт.

6

87548612

FUEL FILTER

In-Line, Years: -16-JUN-13

1шт.

6

47462791

In-Line, Start Year: 17-JUN-13

FUEL FILTER

1шт.

7

84376814

CAB FILTER,430mm L x 110mm W x 30mm Thk

Standard

1шт.

8

84376815

CAB FILTER,430mm L x 110mm W x 30mm Thk, Charcoal

Charcoal

1шт.

9

84534796

ELEMENT,Spin-on, M20 x 1.5, 96mm OD x 195mm L

Fuel Eng Mt.

1шт.

Выбрано товаров: 10
