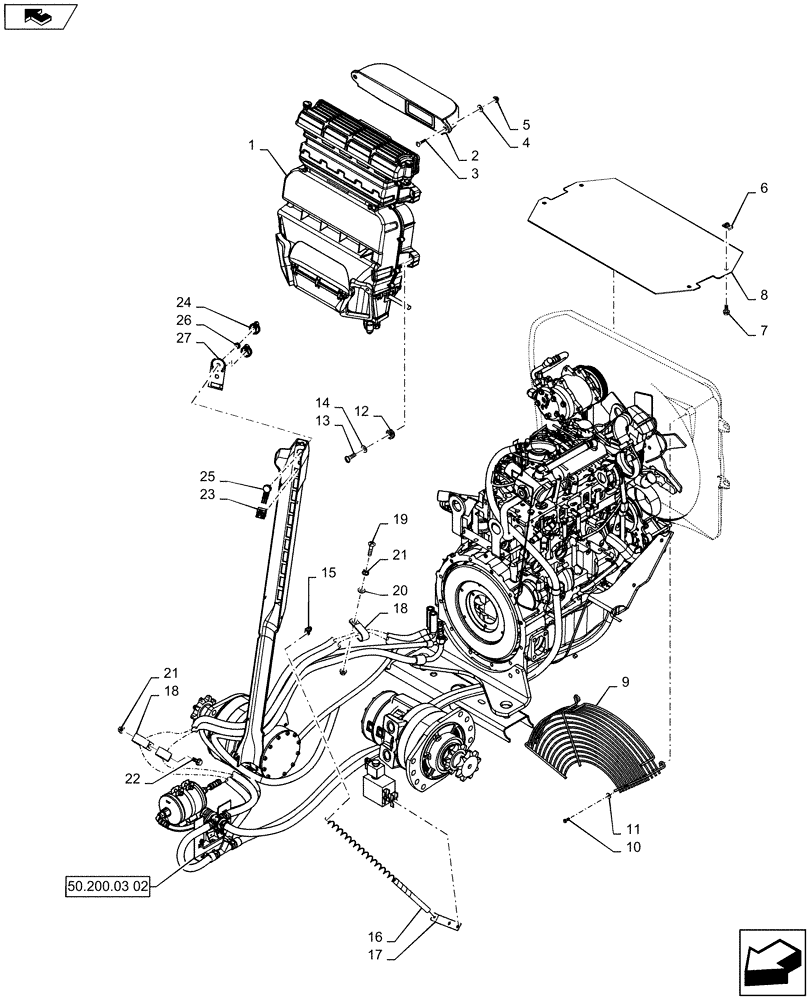

Запчасти Case IH TR320 (50.200.04) - HEATER (ALL CASE) (50) - CAB CLIMATE CONTROL

1

84267543

HEATER

1шт.

2

84280313

AIR DUCT

Intake

1шт.

3

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

4

87655042

M8, 8.80 X 17.5 X 2.2 HTS

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

5

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

6

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

7

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

8

84331307

No AC, Tilt Hood, Gray

SCREEN

1шт.

9

84335903

Fan

GUARD

1шт.

10

84137412

SCREW,Hex Flng, M6 x 18mm

Bosscrew, M6 X 18

3шт.

11

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

12

87436247

THREADED INSERT

M6, Blind Threaded

4шт.

13

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

14

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

15

84361522

BRACKET

1шт.

16

412679A2

SPRING,Extension, 22.5mm OD x 173mm L

Heater Hose

2шт.

17

84370705

BRACKET

1шт.

18

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

19

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

1шт.

20

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10, 10.65 X 23.0 X 2.2 HTS

1шт.

21

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

22

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

23

47376503

ROTARY SWITCH

Blower/Light

1шт.

24

86729670

KNOB

2шт.

25

86729675

SWITCH,5000 Ohm

Switch

1шт.

26

87310592

JAM NUT,7/16" - 28, Gr 5

2шт.

27

84347261

DECAL

HVAC, Heat Only

1шт.
