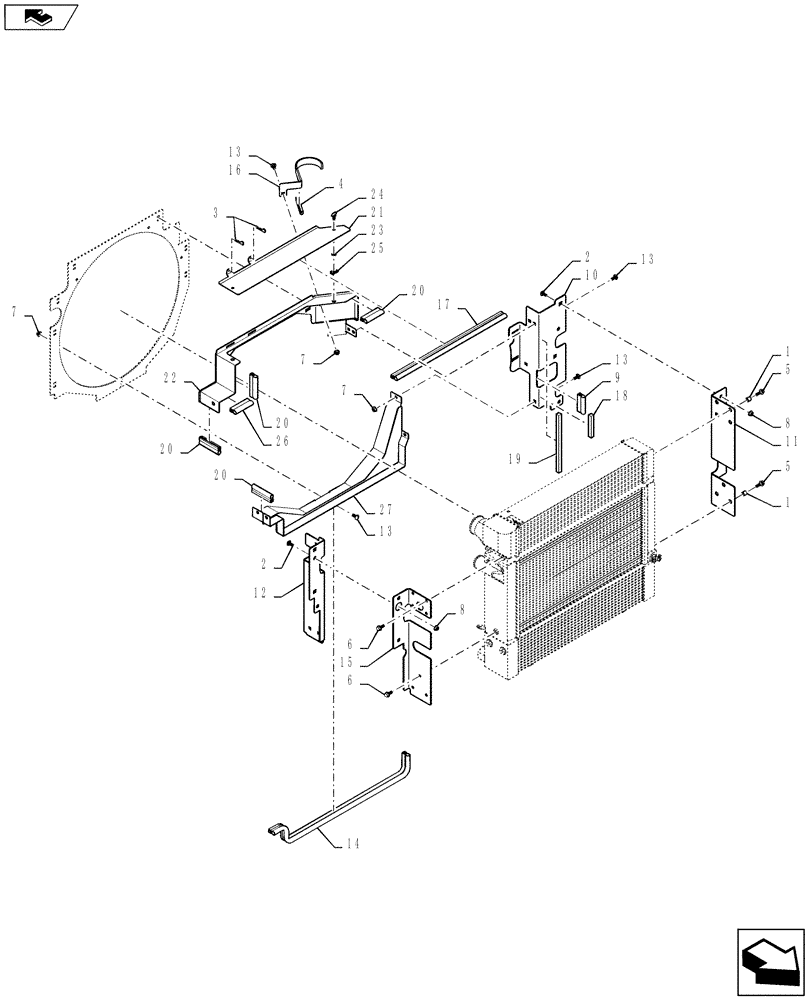

Запчасти Case IH TR320 (10.400.02[02]) - FAN SHROUD, COOLING PACKAGE (10) - ENGINE

1

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

7шт.

2

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

3

270964

COTTER PIN,3/8" x 1.62" x .094", Int Hair

7/64" x 1-5/8" x 0.094"

5шт.

4

291186

PROTECTION STRIP,9.9mm W

Bulk Roll, Cut To Required Length

1шт.

5

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

16шт.

8

43435

FLANGE NUT,Hex, M10 x 1.5

8шт.

9

47371788

RUBBER SEAL,72mm L

Bulb, 72mm Long

1шт.

10

47371802

BRACKET

Coolers, RH

1шт.

11

47371807

BRACKET

Coolers, RH

1шт.

12

47384153

BRACKET

Coolers, LH

1шт.

13

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

16шт.

14

84573594

RUBBER SEAL,815mm L

Bulb, 815mm Long

1шт.

15

84548718

Coolers, LH

BRACKET

1шт.

15

47460610

Coolers, LH, Start Year: 01-AUG-13

BRACKET

1шт.

16

84558147

CAC Clamp

BRACKET

1шт.

17

84268743

Bulb, Bulk, Cut To Length Of 540mm

RUBBER SEAL,2280mm L

1шт.

18

84551644

Strip, 90mm Long

FOAM

1шт.

19

84551643

Strip, 245mm Long

SEALING STRIP,12.7mm W x 245mm L x 12.7mm Thk

1шт.

20

84551540

Bulb, 90mm Long

SEAL

4шт.

21

84551076

Shroud Access

BRACKET

1шт.

22

84550463

Wing Head

SHROUD

1шт.

23

84528026

Fan Top

RETAINER

1шт.

24

84528025

Fast Lead Screw

FASTENER,29.3mm L

2шт.

25

84528035

Nut, Clip-On

CLIP,24.7mm L

2шт.

26

84528298

Bulb, 60mm Long

SEAL

2шт.

27

84550383

Fan Bottom

SHROUD

1шт.
