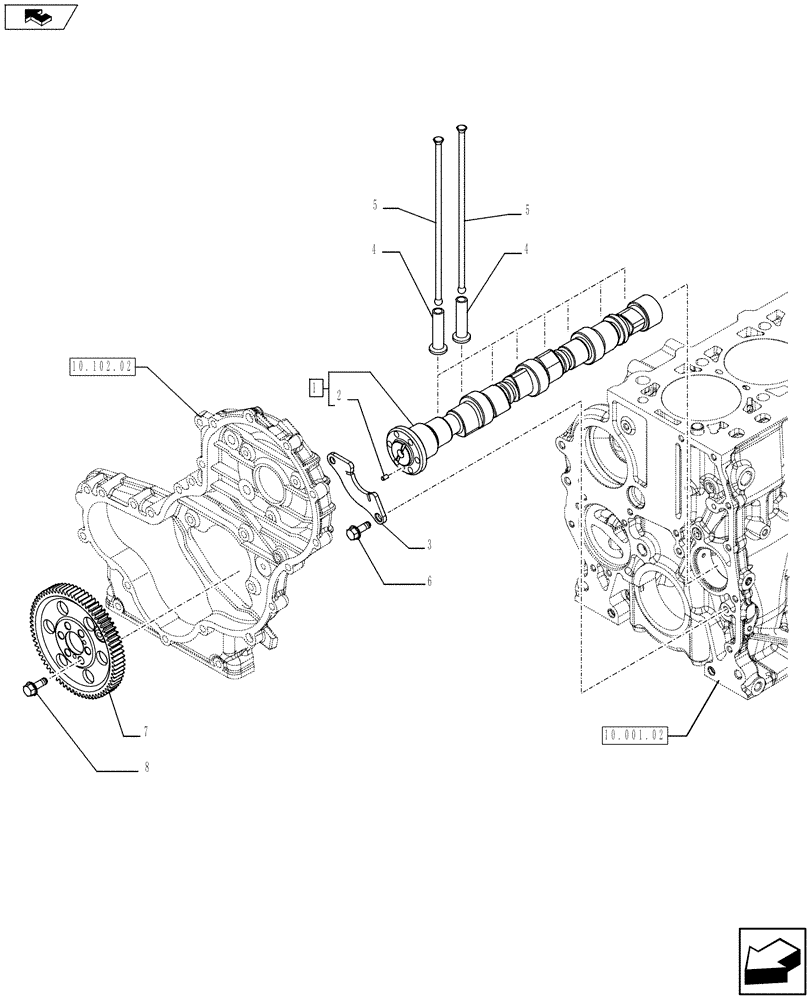

Запчасти Case IH TR320 (10.106.01) - CAMSHAFT - TIMING CONTROL (504228067) (10) - ENGINE

1

504272265

CAMSHAFT

- ASSY

1шт.

1

504272265R

REMAN-CAMSHAFT

C238, TR320, TV380 V38VNT (V38VET), All COMPACT TRACK LOADER, L230, SR250, SV300, All SKID STEER LOADER, All (4/11-), F5CE5454C*A003 ENGINE 504387948 - 84171653, All ASSY

1шт.

1

504272265C

Return Number

1шт.

2

10839510

DOWEL,M6 x 9

1шт.

3

4897457

SUPPORT

1шт.

4

98471524

TAPPET

+0,0

8шт.

5

504163240

PUSH ROD

8шт.

6

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

7

504240396

GEAR

1шт.

8

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

6шт.
