Запчасти Case IH TR320 (90.108.AB) - DECALS (TR320) (90) - PLATFORM, CAB, BODYWORK AND DECALS

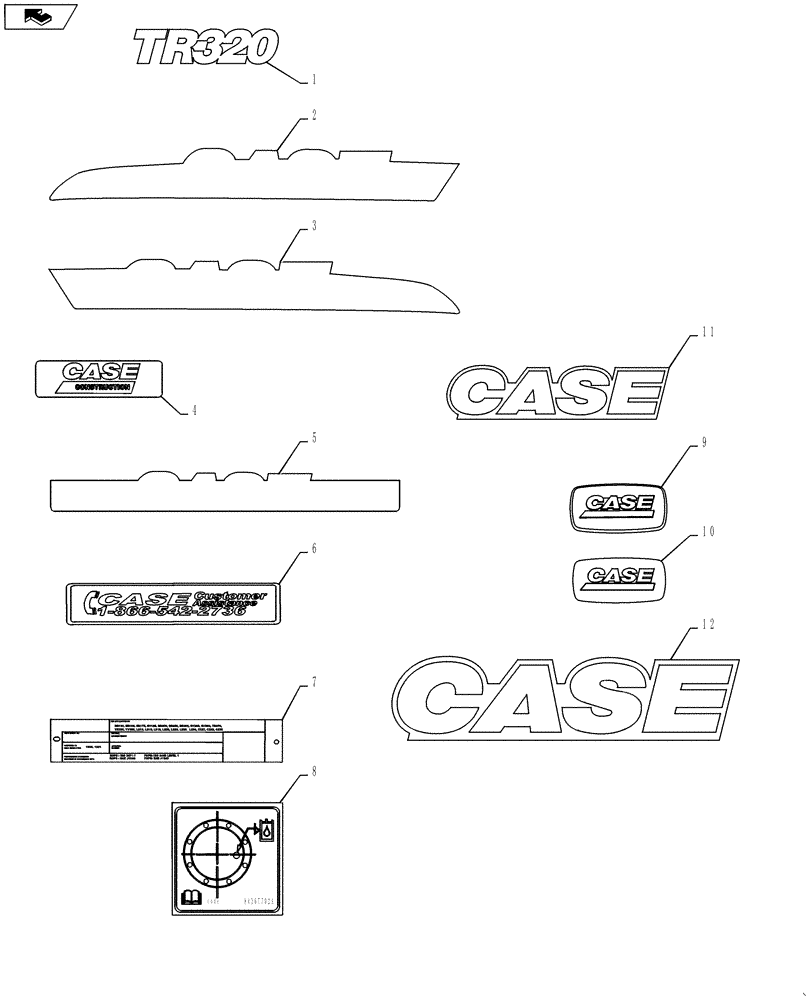

Схема запчастей Case IH TR320 - (90.108.AB) - DECALS (TR320) (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
4
7
code
11
12
5
10
6
1
2
3
84367702a
9
home

Артикул

Название

Примечание

Количество

1

84312465

TR320, Model Designation, Black, Years: -25-SEP-11

DECAL

2шт.

1

84493209

TR320, Model Designation, Silver/Fading, Start Year: 26-SEP-11

DECAL

2шт.

2

84312460

LH, Med/Large, Radial Stripe

DECAL

1шт.

3

84312462

RH, Med/Large, Radial Stripe

DECAL

1шт.

4

84385194

DECAL

Case Logo, Front

1шт.

5

84350219

Rear, Case Logo, Background

DECAL

1шт.

6

84311902

Customer Assistance, Case

DECAL

1шт.

7

NSS

NOT SOLD SEPARAT

Rops Model And Approval

1шт.

8

84367792

DECAL

Oil Fill and Check

2шт.

9

87429186

EMBLEM

Case, Engine

1шт.

10

87415931

DECAL

Case, Engine

1шт.

11

87389374

DECAL

Case Logo, Rear Door, Order With Ref. 5, Years: -25-SEP-11

1шт.

11

84492067

DECAL

Case Impact Logo, Rear Door, Silver/Fading, Start Year: 26-SEP-11

1шт.

12

84383722

Case Logo, Loader Arm, Years: -25-SEP-11

DECAL

2шт.

12

84492069

DECAL,200mm H x 786mm L

Case Impact Logo, Loader Arm, Silver/Fading, Start Year: 26-SEP-11

2шт.

13

84315533

DECAL

Loader Support On Loader Arm (Not Shown)

1шт.

Выбрано товаров: 16
