(90.100.AG) - CHASSIS HOODS AND COVERS (TR320)

Запчасти Case IH TR320 (90.100.AG) - CHASSIS HOODS AND COVERS (TR320) (90) - PLATFORM, CAB, BODYWORK AND DECALS

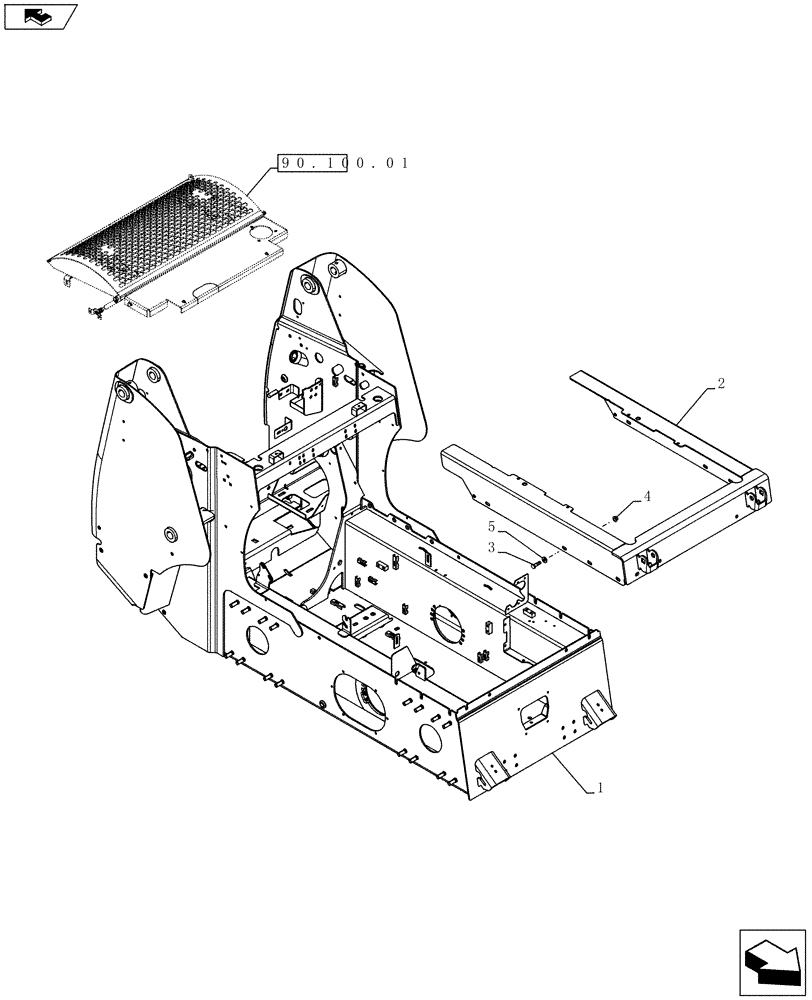

Схема запчастей Case IH TR320 - (90.100.AG) - CHASSIS HOODS AND COVERS (TR320) (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
4
90.100.01
home
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Chassis

1шт.

2

84309634

DRAWBAR FRAME

1шт.

3

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

4

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

13шт.

5

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

12шт.
