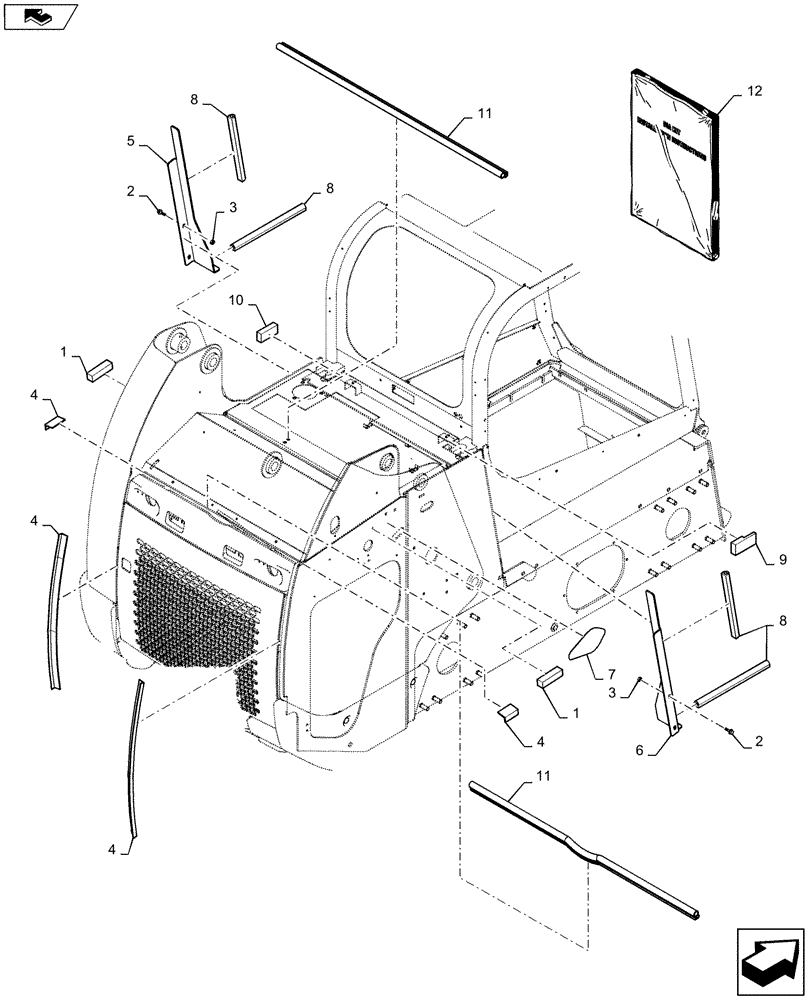

Запчасти Case IH TR320 (88.100.90[19]) - DIA, KIT DEBRIS SOFT PARTS (88) - ACCESSORIES

47415573

DIA Kit, Debris Soft Parts

KIT

1шт.

1

WIC291355

PAD

0.625FT, Foam

1шт.

2

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

3

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

4

47365894

SEAL

1620MM

1шт.

5

47367373

COVER

LH, Chassis, LF, Gray

1шт.

6

47367375

COVER

RH, Chassis, RF, Gray

1шт.

7

84300911

ACCESS COVER

Lexan

1шт.

8

84338534

SEAL,Bulk 30.48m

2000MM

1шт.

9

84600485

FOAM INSULATION

Foam, Hood, RH

1шт.

10

84600487

FOAM INSULATION

Foam, Hood, LH

1шт.

11

84602176

SEAL

1824MM, Bulb

1шт.

12

47459783

Sheet

INSTRUCTION

1шт.
