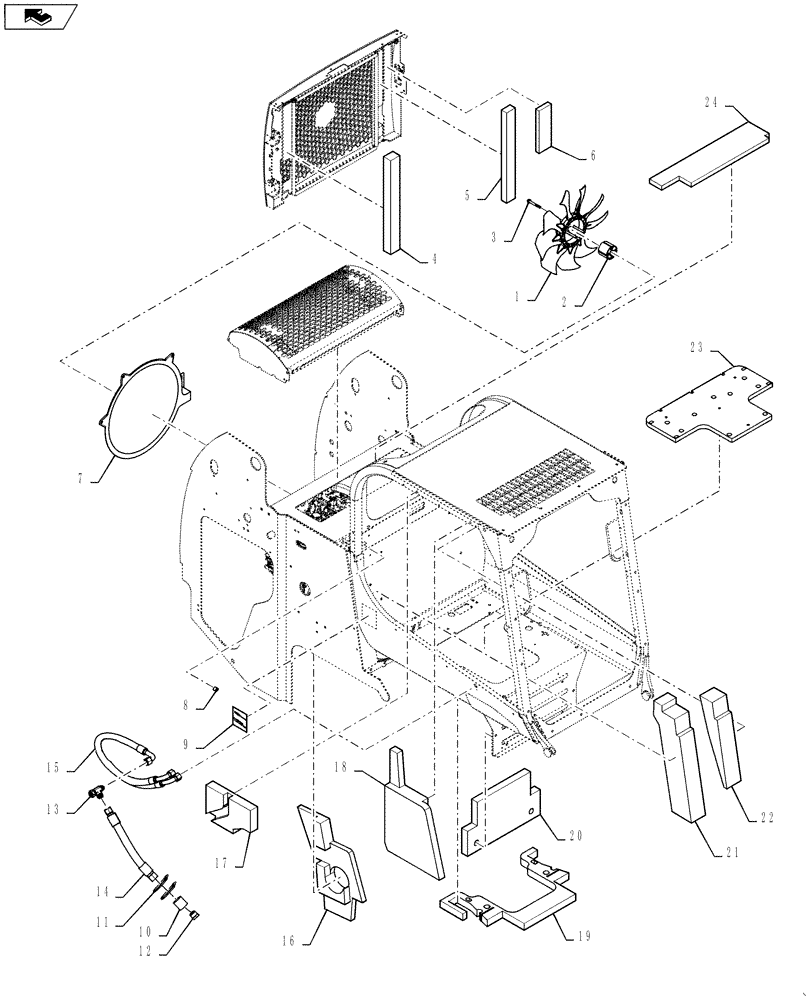

Запчасти Case IH TR320 (88.100.10[23]) - ENGINE ACCESSORIES OPEN EU (TR320) (88) - ACCESSORIES

1

47488898

FAN,9 Blades, 480mm OD

Clockwise Pusher 480 (NA)

1шт.

2

87565746

SPACER

Chart, Fan

1шт.

3

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

4шт.

4

84372988

FOAM INSULATION,584.4mm L x 67.5mm W x 50.8mm Thk

Fan, RH

1шт.

5

84372981

FOAM INSULATION

Fan

1шт.

6

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan, LH

1шт.

7

84383957

Metal Insert, Gray

SHROUD

1шт.

8

87461957

STOP

Throttle

1шт.

9

87611184

DECAL,LWA 103, 100mm x 110mm

LWA 103

1шт.

10

87595771

Rubber

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

1шт.

11

9790527

PLUG,1-5/16" - 12 JIC

1шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

13

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

14

87351645

HOSE ASSY.,417mm L

Resonator

1шт.

15

84383953

HOSE ASSY.

Valve Supply

1шт.

16

84366337

Right Tower, Rear

FOAM INSULATION

1шт.

17

84366341

Left Tower, Rear

FOAM INSULATION

1шт.

18

84366339

Left Tower, Mid

FOAM INSULATION

1шт.

19

84366352

Heal Plate, Vertical

FOAM INSULATION

1шт.

20

84366353

Heal Plate, Horizontal

FOAM INSULATION

1шт.

21

84366336

Right Tower, Front

FOAM INSULATION

1шт.

22

84366338

Left Tower, Front

FOAM INSULATION

1шт.

23

84372040

FOAM

Seat Pan

1шт.

24

84373796

Hood

FOAM INSULATION

1шт.
