Запчасти Case IH TR320 (82.100.AG) - COUPLER BASIC GRAY, AUGUST 19, 2013 AND AFTER (82) - FRONT LOADER & BUCKET

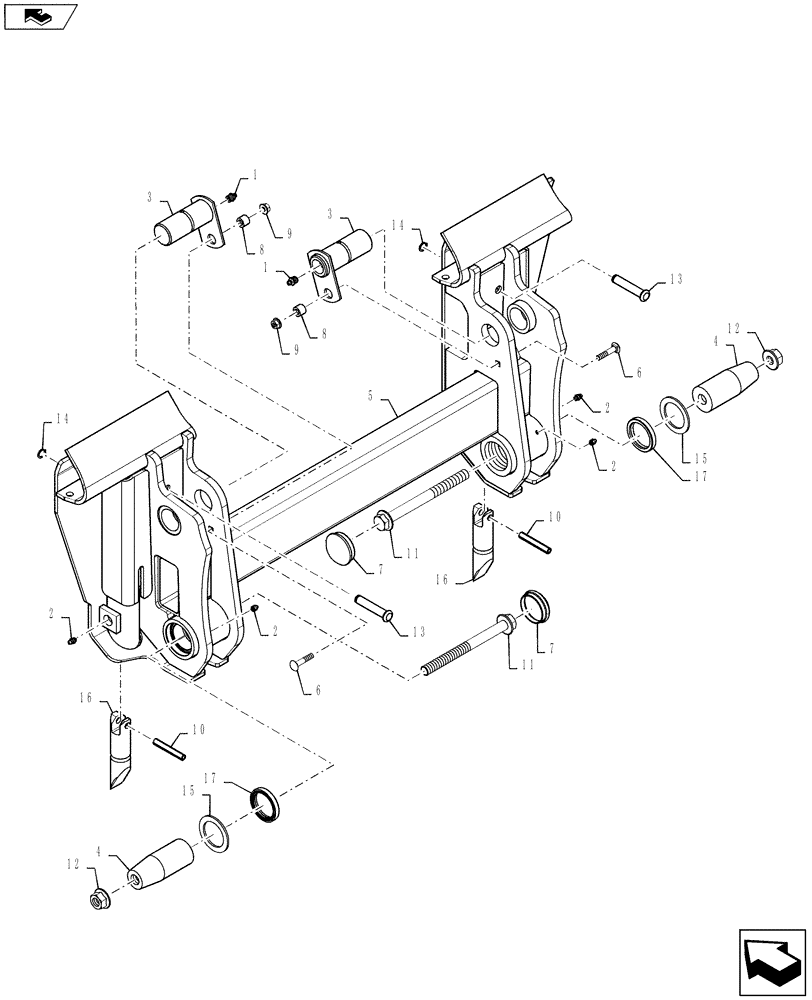

Схема запчастей Case IH TR320 - (82.100.AG) - COUPLER BASIC GRAY, AUGUST 19, 2013 AND AFTER (82) - FRONT LOADER & BUCKET
13
11
15
4
1
9
12
14
12
8
10
3
16
17
5
6
2
17
1
2
2
7
home
10
4
2
6
3
13
15
11
14
7
8
16
9

Артикул

Название

Примечание

Количество

1

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

2

87414

LUBE NIPPLE,1/4" - 28

4шт.

3

9614349

PIN,38.15mm OD x 105mm L

Coupler, Upper

2шт.

4

47396814

PIN,44.45mm OD x 109.5mm L

Boom To Coupler

2шт.

5

47422972

Coupler, Gray

FRAME

1шт.

6

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

2шт.

7

86561087

DUST CAP

Hub

2шт.

8

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

2шт.

9

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

10

86624093

PIN,9.53mm OD x 63.5mm L

2шт.

11

87015924

BOLT,Hex, M16 x 180mm, Cl 10.9

2шт.

12

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

13

87387540

PIN,12.7mm OD x 67.55mm L

Handle Pivot

2шт.

14

87612753

RETAINER,#50, 0.46", Ext

#50 Plain, Heavy

2шт.

15

87613204

WASHER,1.78" ID x 2.5" OD x 0.12" Thk

1.781" x 2-1/2" x 0.1195", CST, ZND

2шт.

16

87758365

PIN,31.75mm OD x 142.3mm L

Latch

2шт.

17

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

Lower Coupler Pin

2шт.

Выбрано товаров: 17
