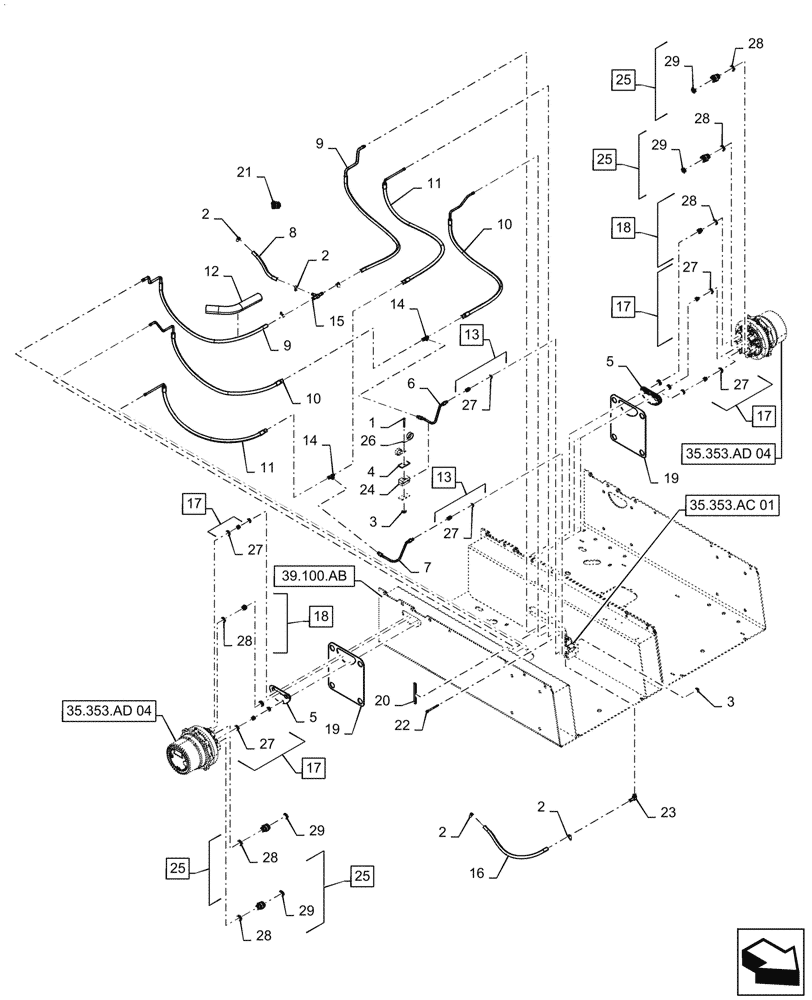

Запчасти Case IH TR310 (35.353.AE[01]) - HYDROSTATIC MOTOR LINES, 2-SPEED (03-OCT-2016 & NEWER) (35) - HYDRAULIC SYSTEMS

1

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

2

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

6шт.

3

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

4

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

5

47893401

GROMMET

Chassis

2шт.

6

47961991

Brake

HYD TUBE

1шт.

7

47961994

2-Speed

HYD TUBE

1шт.

8

47962917

Case Drain

HYDRAULIC HOSE,12.7mm ID x 340mm L

1шт.

9

48008357

HYD TUBE,12.5mm ID x 19.56mm OD x 1066mm L

Case Drain

2шт.

10

47961995

HYD TUBE,10mm ID x 1051mm L

Brake

2шт.

11

47961990

HYDRAULIC HOSE

2-Speed

2шт.

12

48008317

HOSE PROTECTION,46mm ID x 457mm L, Woven Nylon

Sleeve

2шт.

13

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 27

2шт.

14

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

15

84179891

ADAPTER,Tee, 1/2" Hose Barb x 1/2" Hose Barb x 1/2" Hose Barb

1шт.

16

84257173

HOSE,12.7mm ID x 570mm L

1шт.

17

84277064

ADAPTER,9/16" - 18 ORB x -6 Fem Quick Lock

Incl 27

4шт.

18

84277065

ADAPTER,3/4" - 16 ORB x -8 Fem Quick Lock

Incl 28

2шт.

19

84331874

Grommet, Gray

PLATE

2шт.

20

84353803

TRIM,30.48m Bulk

1шт.

21

84388282

INDICATOR

High Speed

1шт.

22

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

2шт.

23

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

1шт.

24

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

1шт.

25

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 28, 29

4шт.

26

87313355

CLAMP,38.1mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

27

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

6шт.

29

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.
