Запчасти Case IH TR310 (35.220.AA[01]) - HYDRAULIC PUMP, STANDARD 36CC (35) - HYDRAULIC SYSTEMS

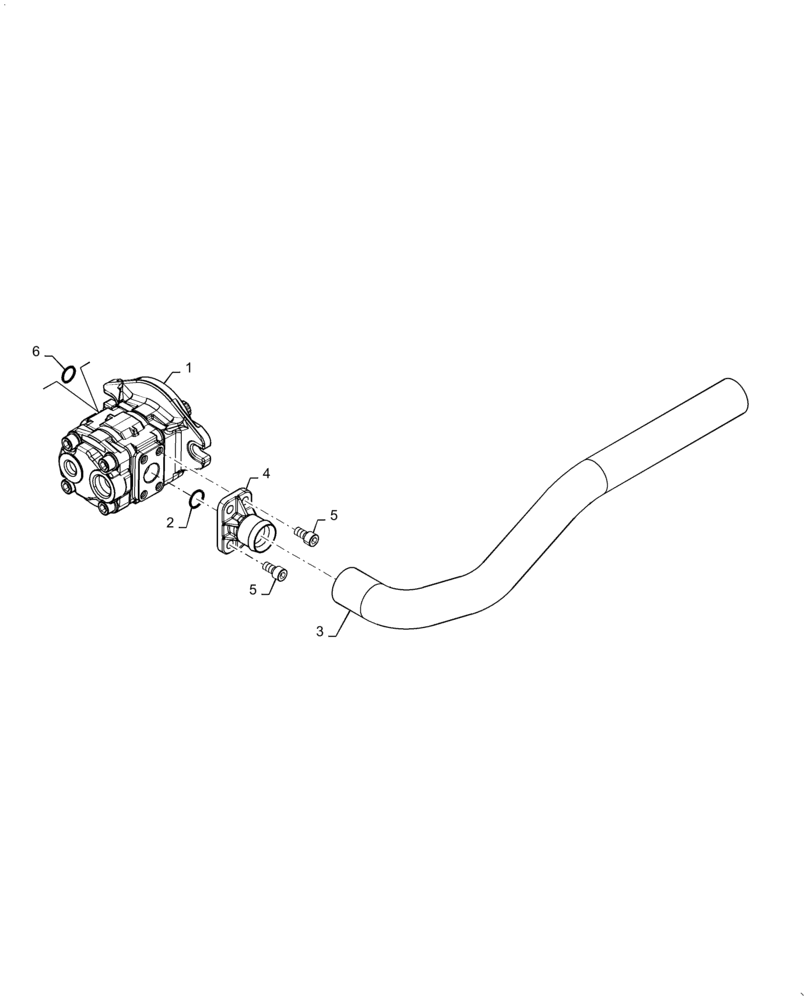

Схема запчастей Case IH TR310 - (35.220.AA[01]) - HYDRAULIC PUMP, STANDARD 36CC (35) - HYDRAULIC SYSTEMS
5
5
2
1
3
6
4

Артикул

Название

Примечание

Количество

1

84572269

PUMP,36.6 CC

Hydraulic

1шт.

2

14463580

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

1шт.

3

84349296

HOSE,38.1mm ID

, Years: -03-JUN-15

1шт.

3

47841484

Gear Pump Suction, Start Year: 04-JUN-15

HOSE

1шт.

4

84561027

Gear Pump Suction

FITTING

1шт.

5

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

6

84389261

Services 1

SEAL KIT

1шт.

Выбрано товаров: 7
