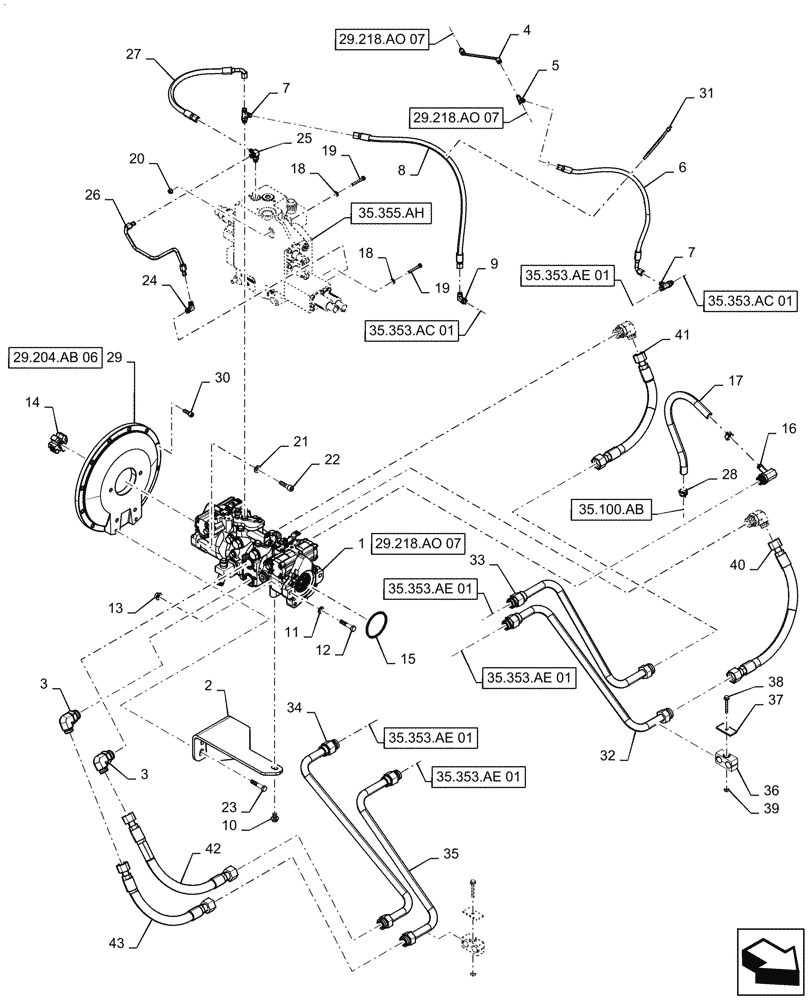

Запчасти Case IH TR310 (29.204.AB[01]) - HYDROSTATIC PUMP, DRIVE LINES, MECHANICAL CONTROLS (20-NOV-2015 & NEWER) (29) - HYDROSTATIC DRIVE

1

84322471

Tandem

HYDROSTATIC PUMP,46 CC

1шт.

1

84322471R

REMAN-HYD PUMP

Tandem

1шт.

1

84322471C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

84560744

MOUNT

Pump Support, Gray

1шт.

3

87326965

90 ELBOW,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

4шт.

4

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

5

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

6

84257175

HOSE ASSY.,6.35mm ID x 650mm L, SAE 100R17

1шт.

7

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

7

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

, Start Year: 03-OCT-16

1шт.

8

84257174

HOSE ASSY.,9.53mm ID x 765mm L, SAE 100R17

1шт.

9

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

10

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

1шт.

11

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

12

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

13

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

14

87711337

COUPLING,19T, 1-1/8" ID

Drive Star

1шт.

15

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.

16

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

1шт.

17

47919061

HOSE,16mm ID x 535mm L

Hydraulic Drain

1шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

5шт.

19

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

20

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

21

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

22

15734

SCREW,Hex Socket, 1/2" - 13 x 1-3/4"

4шт.

23

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

2шт.

24

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

25

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

26

84373389

RIGID TUBE,9.53mm OD

1шт.

27

84259516

FLEXIBLE HOSE,9.53mm ID x 482.3mm L, SAE 100R17

Interlock

1шт.

28

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

29

47659227

COVER

Flywheel, W/O EHF

1шт.

29

47659211

Flywheel, W/ EHF

COVER

1шт.

30

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

9шт.

31

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

32

47895275

RH CTL Drive Motor, Rear Port On Motor

HYD TUBE

1шт.

33

47895277

RH CTL Drive Motor, Front Port On Motor

HYD TUBE

1шт.

34

47895279

LH CTL Drive Motor, Rear Port On Motor

HYD TUBE

1шт.

35

47895281

LH CTL Drive Motor, Front Port On Motor

HYD TUBE

1шт.

36

1546028C1

CLAMP,25.4mm ID x 82mm L

Tube

2шт.

37

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar Clamp Top

2шт.

38

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

39

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

40

47926576

Loop

HOSE,19mm ID x 600mm L, SAE100R19

1шт.

41

47926577

Loop

HOSE,19mm ID x 500mm L, SAE100R19

1шт.

42

47926578

Loop

HOSE,19mm ID x 565mm L, SAE100R19

1шт.

43

47926579

HOSE,19mm ID x 475mm L, SAE100R19

Loop

1шт.
