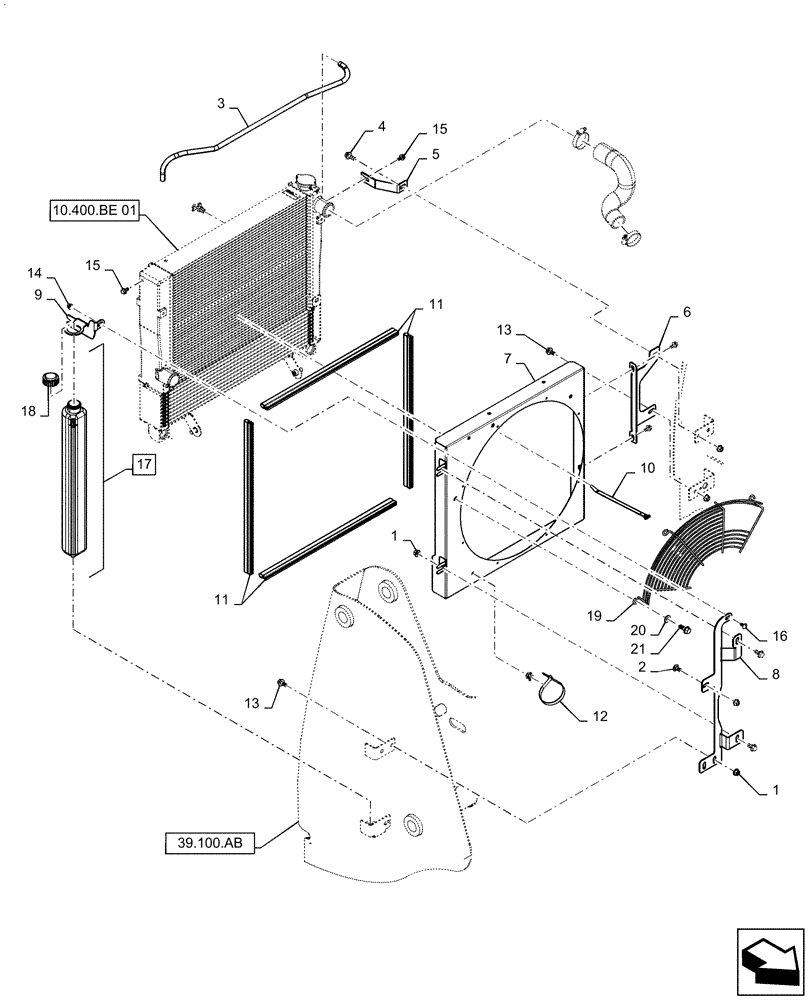

Запчасти Case IH TR310 (10.414.AC) - FAN SHROUD MOUNTING PARTS (10) - ENGINE

1

43435

FLANGE NUT,Hex, M10 x 1.5

6шт.

2

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

1шт.

3

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

2.85 FT

1шт.

4

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

5

47389934

BRACKET

Radiator Mount

1шт.

6

47468551

LH, Shroud

BRACKET

1шт.

7

47615378

518mm, Fan

SHROUD

1шт.

8

47681404

RH, Shroud

BRACKET

1шт.

9

47681407

Coolant Bottle, Upper

BRACKET

1шт.

10

84259663

CABLE TIE,228.6mm L, Nylon, Black

Polyamide 6.6

2шт.

11

84277010

Bulb

RUBBER SEAL,576.1mm L

4шт.

12

84551467

CABLE TIE,381mm L

1шт.

13

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

14

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

15

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

16

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

17

47490003

BOTTLE

572mm L, Incl 18

1шт.

18

R50468

CAP

Vented, Coolant Bottle

1шт.

19

47416077

GUARD

Fan

1шт.

Only On Units W/O AC

1шт.

20

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

Only On Units W/O AC

1шт.

21

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

Only On Units W/O AC

1шт.
