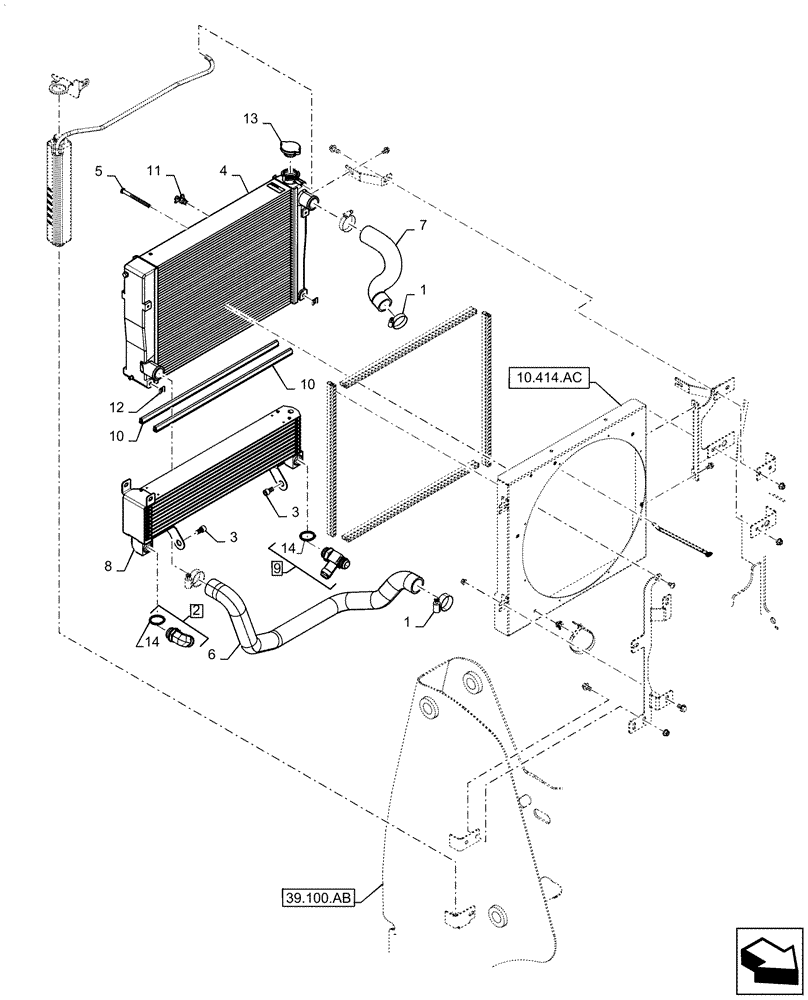

Запчасти Case IH TR310 (10.400.BE[01]) - RADIATOR & COOLER (10) - ENGINE

1

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

4шт.

2

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 14

1шт.

3

9837786

HEX SOC SCREW,M12 x 20mm, Cl 8.8, Full Thd

2шт.

4

47389489

RADIATOR

Standard Fin Density

1шт.

4

47389491

RADIATOR

Low Fin Density

1шт.

5

47375204

PIN,9.65mm OD x 120.45mm L

Radiator

2шт.

6

47389930

HOSE,45mm ID, SAE 20R4

Lower Coolant

1шт.

7

47389931

HOSE

Upper Coolant

1шт.

8

47532228

Standard Fin Density

OIL COOLER

1шт.

8

47532228

Low Fin Density

OIL COOLER

1шт.

9

84259482

TEE,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-5/16" - 12 JIC

Incl 14

1шт.

10

84531449

706.5mm L, Bulb, Cooling Module

SEAL

2шт.

11

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

12

87700737

CLIP

10.5mm ID, Pin

2шт.

13

87687375

RADIATOR CAP

16 PSI, Radiator Pressure

1шт.

14

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.
