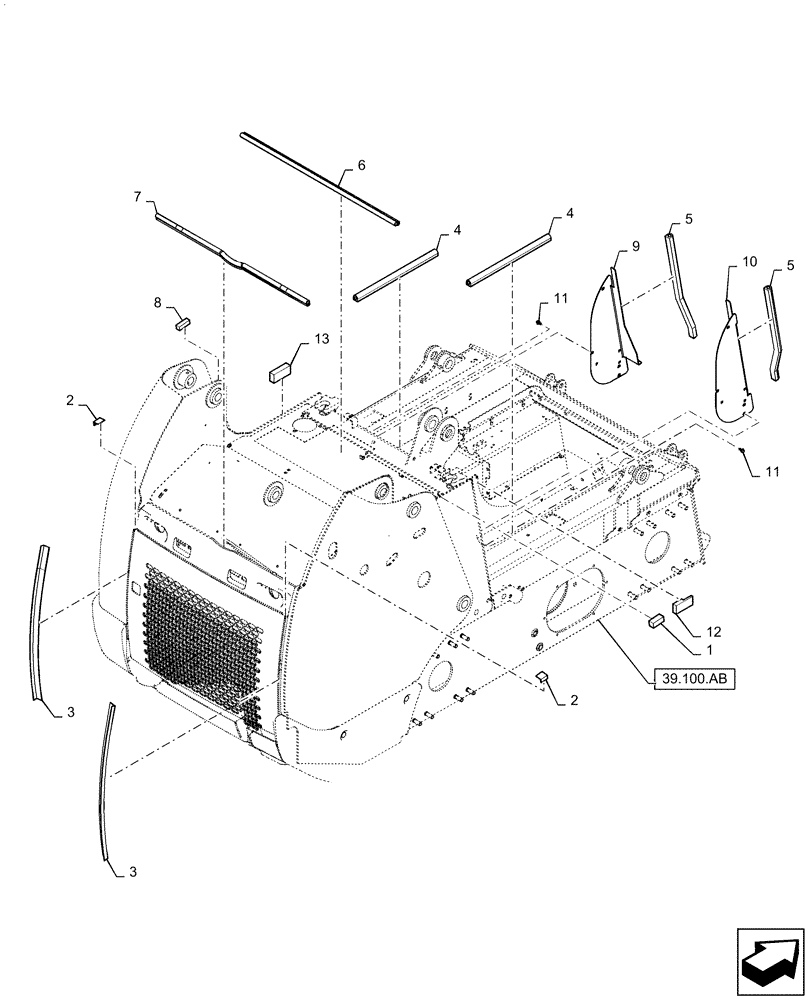

Запчасти Case IH TR310 (90.105.CU) - COVERS & INSULATION (14-FEB-2017 AND BEFORE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47729705

60mm L, Seal Block

FOAM

1шт.

2

47729707

35mm L, Flap

SEAL

2шт.

3

47729715

760mm L, Flap

SEAL

2шт.

4

47729721

465mm L, Adhesive

RUBBER SEAL,465mm L

2шт.

5

47729722

545mm L, Adhesive

RUBBER SEAL,545mm L

2шт.

6

47729730

897mm L, Bulb

SEAL

1шт.

7

47764946

877mm L, Bulb

SEALING STRIP,877mm L

1шт.

8

47765520

60mm L, Seal Block

FOAM INSULATION

1шт.

9

47765958

LH, Chassis Vent

COVER

1шт.

10

47765960

RH, Chassis Vent

COVER

1шт.

11

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

12

84600485

FOAM INSULATION

95mm L, RH, Hood

1шт.

13

84600487

FOAM INSULATION

95mm L, LH, Hood

1шт.
