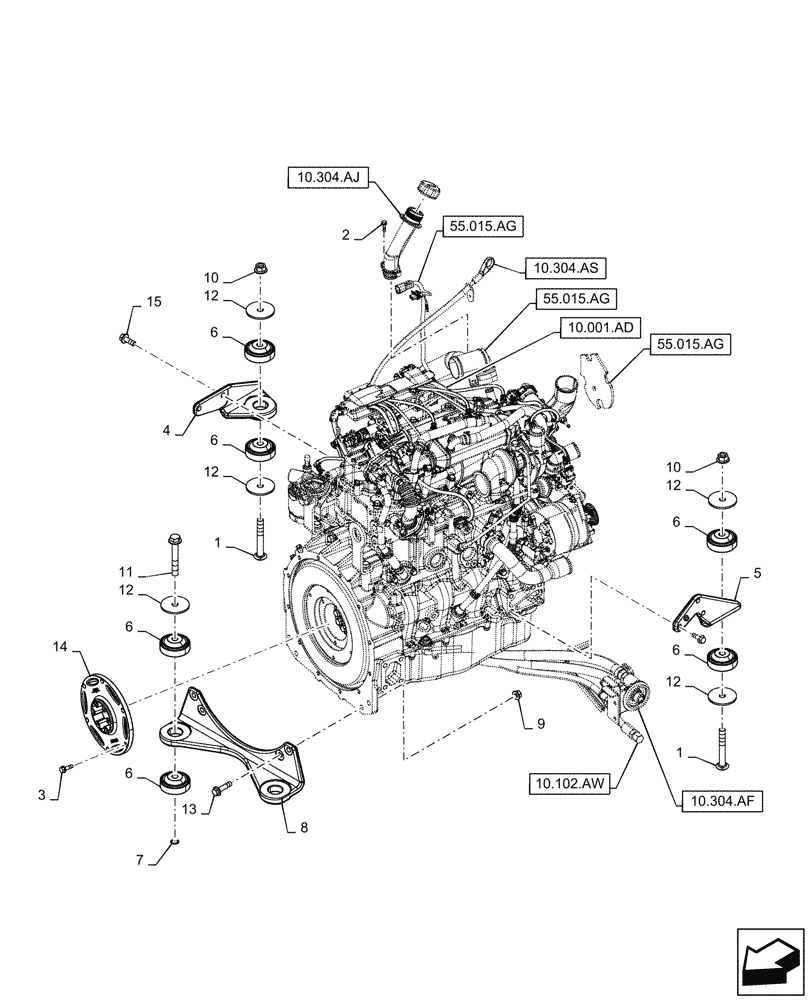

Запчасти Case IH TR310 (10.001.AK) - ENGINE MOUNT (10) - ENGINE

1

300663

CARRIAGE BOLT,M16 x 2.0 x 120mm, Cl 8.8

2шт.

2

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

3

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

6шт.

4

47600713

MOUNT

RH, Engine

1шт.

5

47600714

MOUNT

LH, Engine

1шт.

6

84201266

ISOLATOR,16mm ID x 80mm OD x 41.5mm Thk

Engine Mount

8шт.

7

84367737

LOCK WASHER,22.6mm OD x 1.27mm Thk

2шт.

8

84530877

MOUNT

Front, Engine

1шт.

9

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

10

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

11

87015923

BOLT,M16 x 125.4mm, Cl 10.9

2шт.

12

87630175

WASHER,0.66" ID x 3" OD x 0.18" Thk

6шт.

13

87670764

BOLT,M12 x 61.8mm, Cl 10.9

4шт.

14

87692685

FLEXIBLE COUPLING,215.9mm OD

6 - 1/2" Holes, Plate Outline

1шт.

15

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

5шт.
