Запчасти Case IH TR310 (88.100.55[13]) - DIA KIT, MULTIFUNCTION ELECTRICAL, RADIAL BOOM (88) - ACCESSORIES

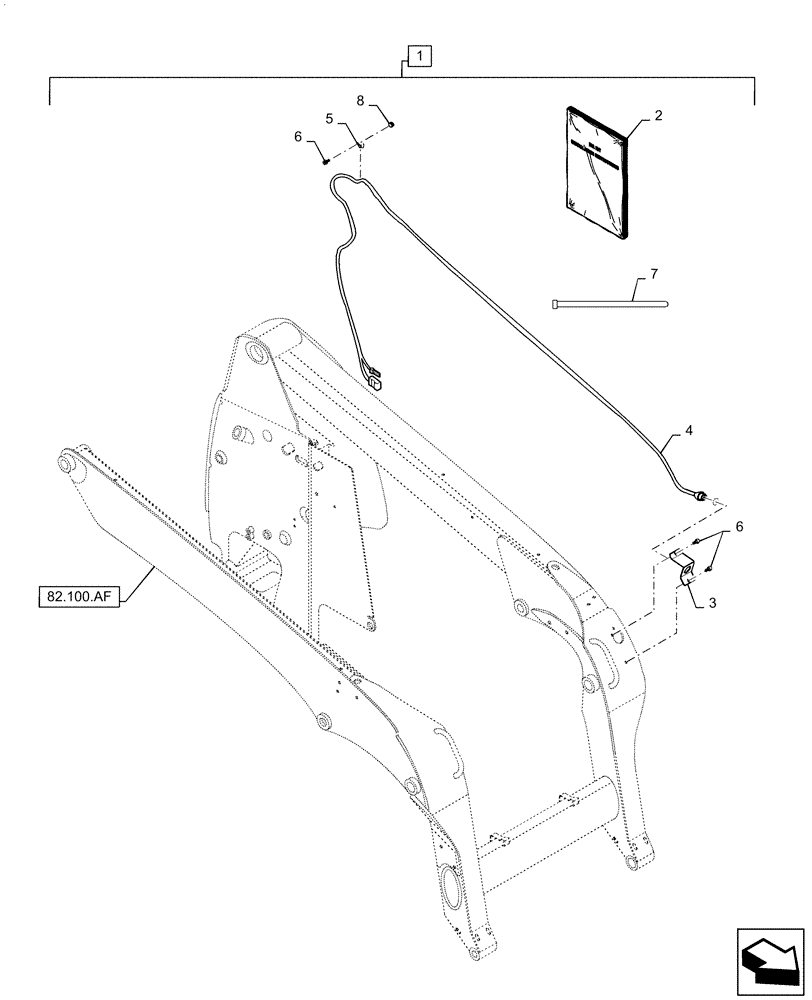

Схема запчастей Case IH TR310 - (88.100.55[13]) - DIA KIT, MULTIFUNCTION ELECTRICAL, RADIAL BOOM (88) - ACCESSORIES
82.100.af
7
6
3
5
6
4
1
2
8

Артикул

Название

Примечание

Количество

1

47560380

KIT

Multifunction Electrical, Incl 2 - 8

1шт.

2

47667869

INSTRUCTION

Sheet

1шт.

3

84293533

BRACKET, SUPPORTING

Front Aux Electric

1шт.

4

84251321

Boom Radial

WIRE HARNESS

1шт.

5

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

1шт.

6

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

3шт.

7

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

2шт.

8

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

1шт.

Выбрано товаров: 8
