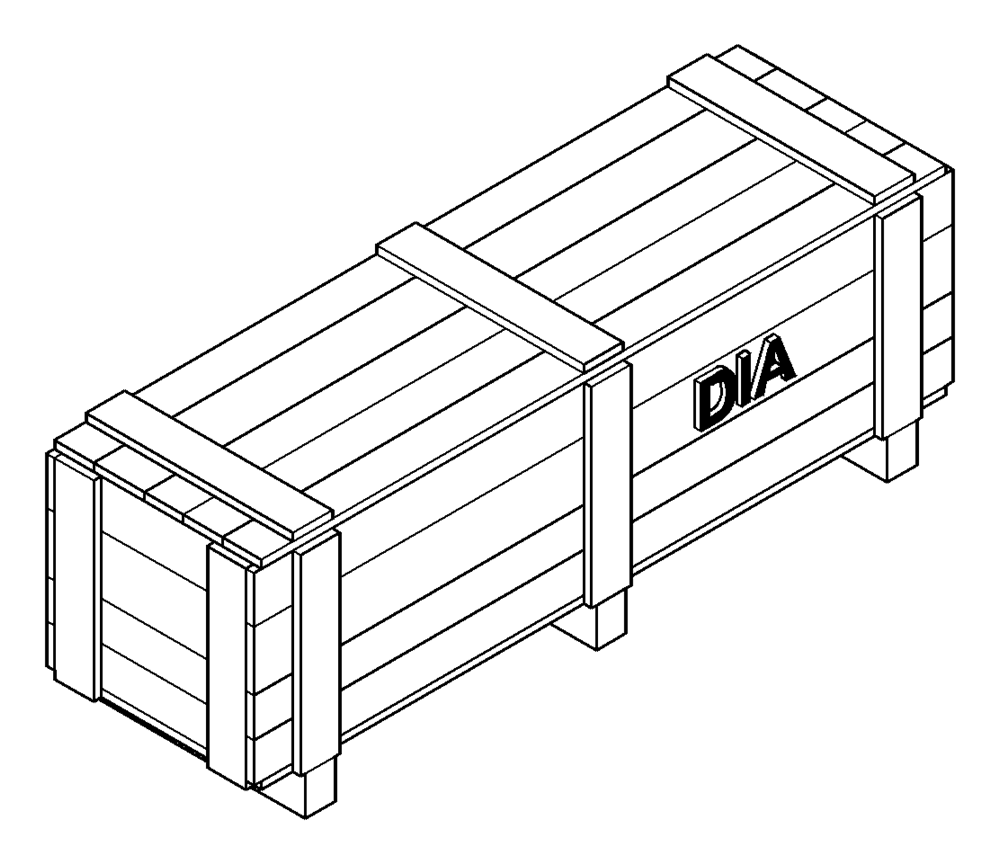

Запчасти Case IH TR310 (88.100.35[05]) - DIA KIT, HIGH FLOW AUX - RADIAL (88) - ACCESSORIES

1

47632214

High Flow Aux, Radial, Incl 2 - 51

KIT

1шт.

2

47632217

High Flow Aux

INSTRUCTION

1шт.

3

76352

90 ELBOW,3/4" - 16 JIC x 1/2" - 14 NPTF

1шт.

4

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 52

1шт.

5

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 52

1шт.

6

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 52

1шт.

7

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 53

1шт.

8

274754

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

9

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

10

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 54

2шт.

11

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 54

2шт.

12

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

1шт.

13

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

15

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

16

47415664

12.7mm OD, Case Drain

HYD TUBE

1шт.

17

47415665

712mm L, Case Drain

HYDRAULIC HOSE,10mm ID x 712mm L, SAE 100R1

1шт.

18

47447054

VALVE

HF CUP Manifold

1шт.

19

84186142

19.05mm OD, Loader Valve to Lift Arm

TUBE

1шт.

20

84186144

19.05mm OD, Loader Valve to Lift Arm

TUBE

1шт.

21

84186146

TUBE,12.7mm OD

1шт.

22

84251427

SWITCH

Rocker, High Flow

1шт.

23

84254056

HOSE CLAMP,69.2mm L

69.2mm L, Butterfly Tube

2шт.

24

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

Incl 54

2шт.

25

84256405

HYDRAULIC VALVE

High Flow Combiner

1шт.

26

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Incl 54

1шт.

27

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Incl 54

1шт.

28

84277076

Tube

PIPE CLAMP,64.1mm L x 38.1mm W x 4.75mm Thk

4шт.

29

84277083

TUBE SPACER,11.1mm ID x 15.9mm OD x 18.1mm L

3шт.

30

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

31

84306937

COVER PLATE

Hydraulic

1шт.

32

84306939

COVER

Hydraulic

1шт.

33

84322573

19.05mm OD, High Flow Male

HYD TUBE

1шт.

34

84322575

High Flow Aux

FLEXIBLE HOSE,15.88mm ID x 698mm L, SAE 100R17

1шт.

35

84322576

19.05mm OD, High Flow Female

HYD TUBE

1шт.

36

84322578

High Flow Aux

FLEXIBLE HOSE,15.88mm ID x 773mm L, SAE 100R17

1шт.

37

84329005

High Flow Supply

HOSE,15.88mm ID x 594mm L, SAE 100R17

1шт.

38

84331287

SCREW,HWH, 3/8" - 16 x 3"

3шт.

39

84362112

Hydrualic Tube

SUPPORT

2шт.

40

84373460

PLUG,23.8mm OD

23.8mm OD, Load Check

1шт.

41

84385861

Gear Pump

ADAPTER

1шт.

42

84387451

38.1mm ID, Gear Pump Suction

HOSE

1шт.

43

84602054

HYDRAULIC PUMP

36.6/13.7CC Gear

1шт.

44

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 55

1шт.

45

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

46

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 54

1шт.

47

86512952

ELBOW,90 Degree, 1-5/16" - 12 JIC x 1" - 11-1/2 NPTF

1шт.

48

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

49

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

2шт.

50

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

51

D124301

CLAMP,3/4" ID

2шт.

52

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

53

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

54

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

9шт.

55

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
