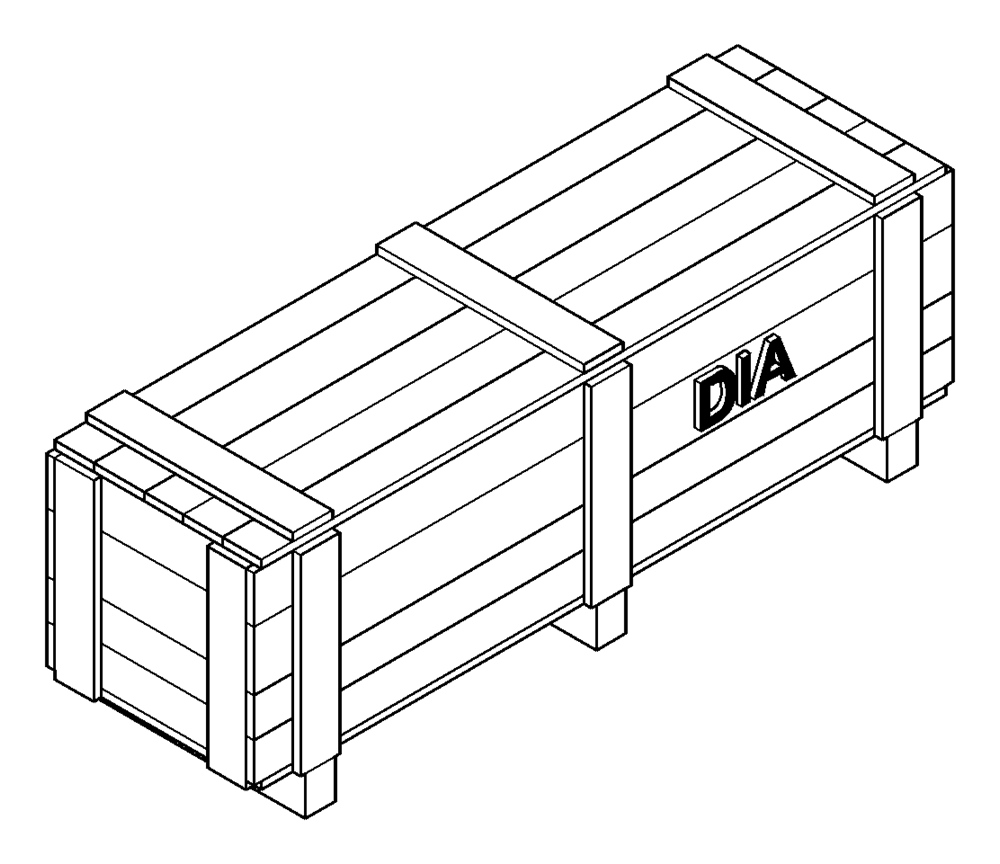

Запчасти Case IH TR310 (88.100.35[03]) - DIA KIT, 2ND FRONT, HYDRAULIC AUX - MEDIUM - RADIAL (88) - ACCESSORIES

1

47752520

KIT

2ND Frond Hydraulic Aux, Medium, Radial, Incl 2 - 47

1шт.

2

47752519

INSTRUCTION

Aux, Medium, Radial

1шт.

3

47752495

2ND Aux Arm, A1

TUBE

1шт.

4

47752499

2ND Aux Arm, B1

TUBE

1шт.

5

47752502

2ND Aux Arm, B1

HYDRAULIC HOSE

1шт.

6

47752504

2ND Aux Arm, A1

HYDRAULIC HOSE

1шт.

7

84252828

CLAMP,65.2mm L

92.4mm L, Butterfly Tube

3шт.

8

D120679

CLAMP,Tube, 1/2"

1шт.

9

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

1шт.

10

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

11

84322490

SAE-8

GROMMET

1шт.

12

84392527

SWITCH

Rocker, Aux Electric

1шт.

13

84474953

1560mm L, 2ND Aux A

HOSE ASSY.

1шт.

14

84474956

1625mm L, 2ND Aux B

HOSE ASSY.

1шт.

15

84475182

Guard

HOSE PROTECTION

1шт.

16

84292198

VALVE

EH Secondary Aux

1шт.

17

84569

ELBOW,90 Degree, 1-1/16" - 12, 37 Degree x 1-1/16" - 12, LG

Incl 48

1шт.

18

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

Incl 48

1шт.

19

47752507

19.05mm OD, 2nd Aux Control

TUBE

1шт.

20

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 49

2шт.

21

84322489

SUPPORT

290mm L, 2nd Aux Valve

1шт.

22

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

23

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

24

84332288

RIGID TUBE

25.4mm OD, 2ND Aux Valve Return

1шт.

25

84475145

HOSE ASSY.,12.5mm ID x 1778mm L, SAE 100R17

1778mm L, 2ND Aux Return

1шт.

26

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

27

47396759

VALVE

Manifold

1шт.

28

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 50

1шт.

29

47752510

12.7mm OD, Case Drain Arm

TUBE

1шт.

30

87023483

PLATE,82mm L x 31.8mm W x 7.37mm Thk

82mm x 31.8mm

2шт.

31

84277083

TUBE SPACER,11.1mm ID x 15.9mm OD x 18.1mm L

1шт.

32

87025275

SCREW,Hex, 3/8" - 16 x 2-1/2"

1шт.

33

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

34

47752514

12.7mm OD, Case Drain

TUBE

1шт.

35

47752517

Case Drain Arm

HYDRAULIC HOSE

1шт.

36

84356597

79.1mm L, Butterfly Tube

CLAMP

1шт.

37

84179891

ADAPTER,Tee, 1/2" Hose Barb x 1/2" Hose Barb x 1/2" Hose Barb

1шт.

38

47752518

915mm L, Case Drain to Tank

HYDRAULIC HOSE

1шт.

39

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

4шт.

40

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 48

1шт.

41

47752505

705mm L, 2ND Aux, Supply

HYDRAULIC HOSE

1шт.

42

86705425

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

2шт.

43

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 48

1шт.

44

47739852

Chassis Mounted Fuel Filter

BRACKET

1шт.

45

84580760

RIVET,Flng, 14mm OD x 21.5mm L

2шт.

46

47752489

12.7mm OD, 2ND Aux A-2

TUBE

1шт.

47

47752492

12.7mm OD, 2ND Aux B-2

TUBE

1шт.

48

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

49

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

50

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
