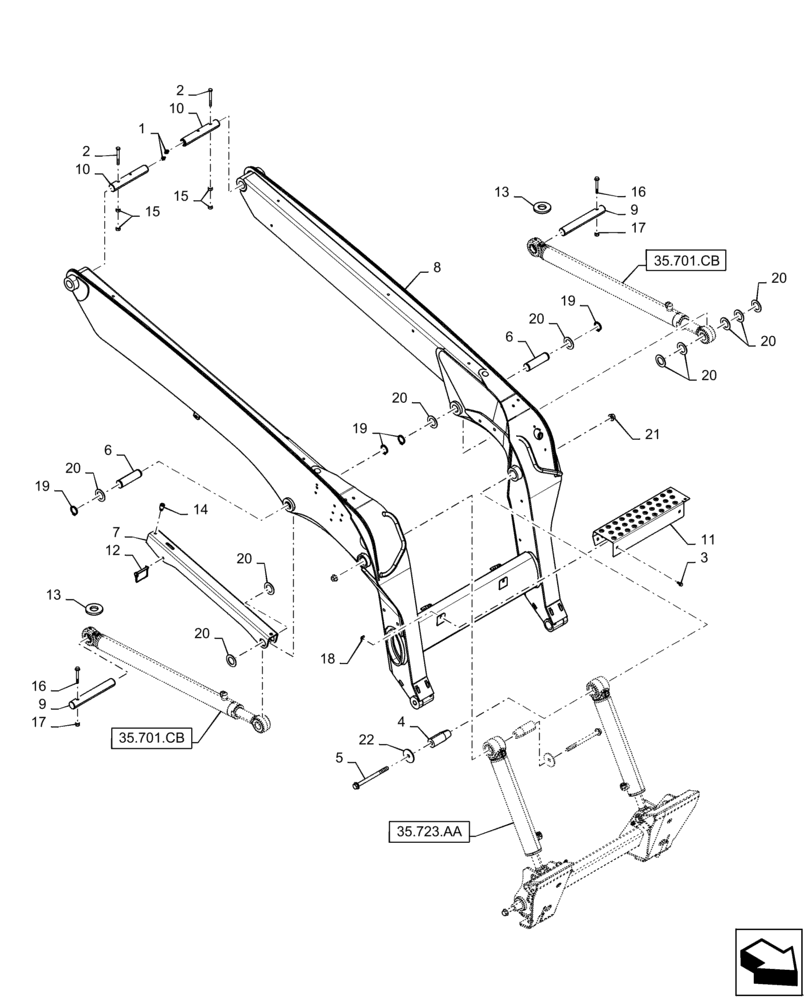

Запчасти Case IH TR310 (82.100.AF) - LOADER ARM (03-OCT-2016 & NEWER) (82) - FRONT LOADER & BUCKET

1

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

2

120074

BOLT,Hex, M10 x 90, 8.8

2шт.

3

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

47489943

PIN,44.45mm OD x 118.5mm L

Boom to Tip Cylinder

2шт.

5

84238749

BOLT,Hex Flg, M16 x 210mm, Cl 10.9

2шт.

6

84248603

Lift Cylinder

PIN,38.15mm OD x 137.9mm L

2шт.

7

84255103

Channel Safety, Red

STRUT

1шт.

8

84279575

Power Tan

LOADER BOOM

1шт.

9

84308025

Chassis to Lift Cylinder

PIN,38.15mm OD x 280mm L

2шт.

10

84341462

Boom to Chassis

PIN,38.15mm OD x 233.5mm L

2шт.

11

84377147

Loader, Tan, Years: -19-JUL-16

STEP

1шт.

11

48025929

Loader, Tan, Start Year: 20-JUL-16

STEP

1шт.

12

84467349

Snapper

PIN,9.53mm OD x 76.2mm L

1шт.

13

84530035

Rear

MOUNTING PLATE

2шт.

14

85802403

PLUG,13mm OD

Pad, Loader Prop

1шт.

15

86500689

NUT,M10 x 1.5, Cl 10

4шт.

16

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

2шт.

17

86512554

NUT,M10 x 1.5, Cl 10

2шт.

18

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

19

86632531

SNAP RING,#150, Ext

4шт.

20

86632586

WASHER,1.53" ID x 2.5" OD x 0.11" Thk

10шт.

21

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

22

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

2шт.
