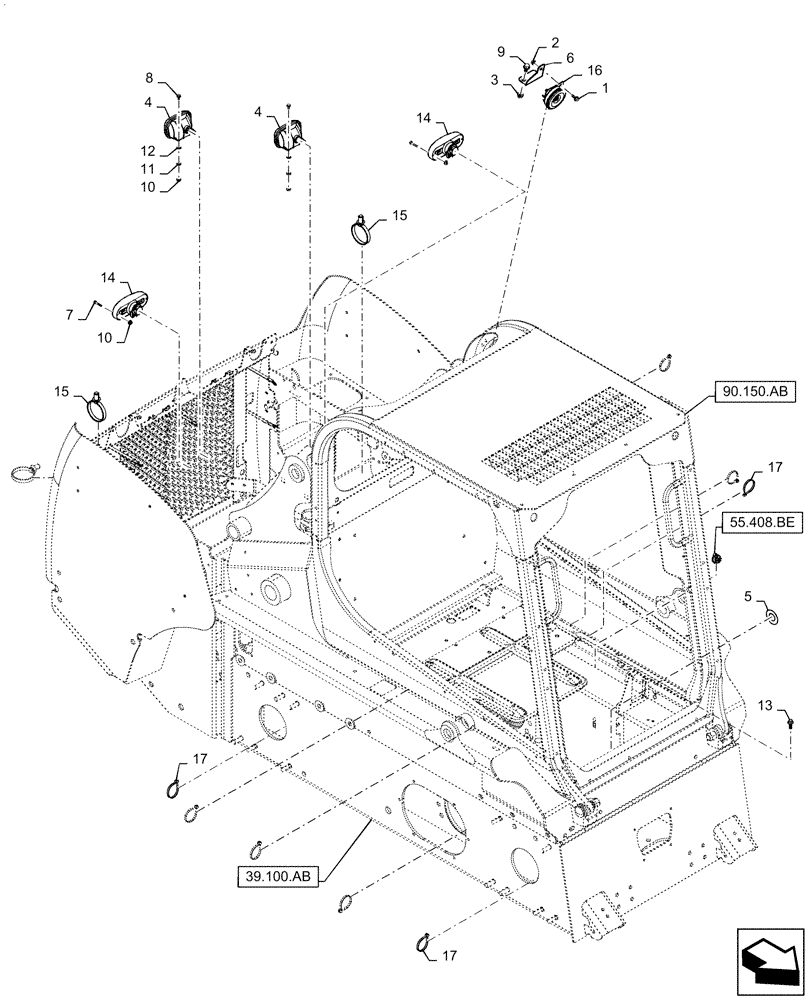

Запчасти Case IH TR310 (55.408.AG) - HORN & BEACON RELATED PARTS (55) - ELECTRICAL SYSTEMS

1

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

2

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

4

84306337

WORK LAMP,12V, 37.5W, Clear

2шт.

5

84412290

DECAL

Light Switch

1шт.

6

84545953

BRACKET, SUPPORTING

Horn

1шт.

7

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

4шт.

8

86511838

BOLT,Hvy Hex, M5 x 12mm, Cl 8.8, Full Thd

4шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

10

86512495

FLANGE NUT,Hex, M5, Cl 8

8шт.

11

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

12

86625264

LOCK WASHER,Ext Tooth, M5

4шт.

13

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

, Years: -13-NOV-16

2шт.

14

87627854

LIGHT ASSY.,12V, 27W, Red

Tail/Stop

2шт.

15

87668737

CABLE TIE,203.2mm L, Nylon, Black

Nylon

1шт.

16

87714969

HORN

W/ Breather

1шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

, Years: -13-NOV-16

16шт.
