Запчасти Case IH TR310 (55.101.AC[04]) - WIRE HARNESS & CONNECTOR, ELECTRONIC CONTROLS, OPEN CAB (13-NOV-2017 & PRIOR) (55) - ELECTRICAL SYSTEMS

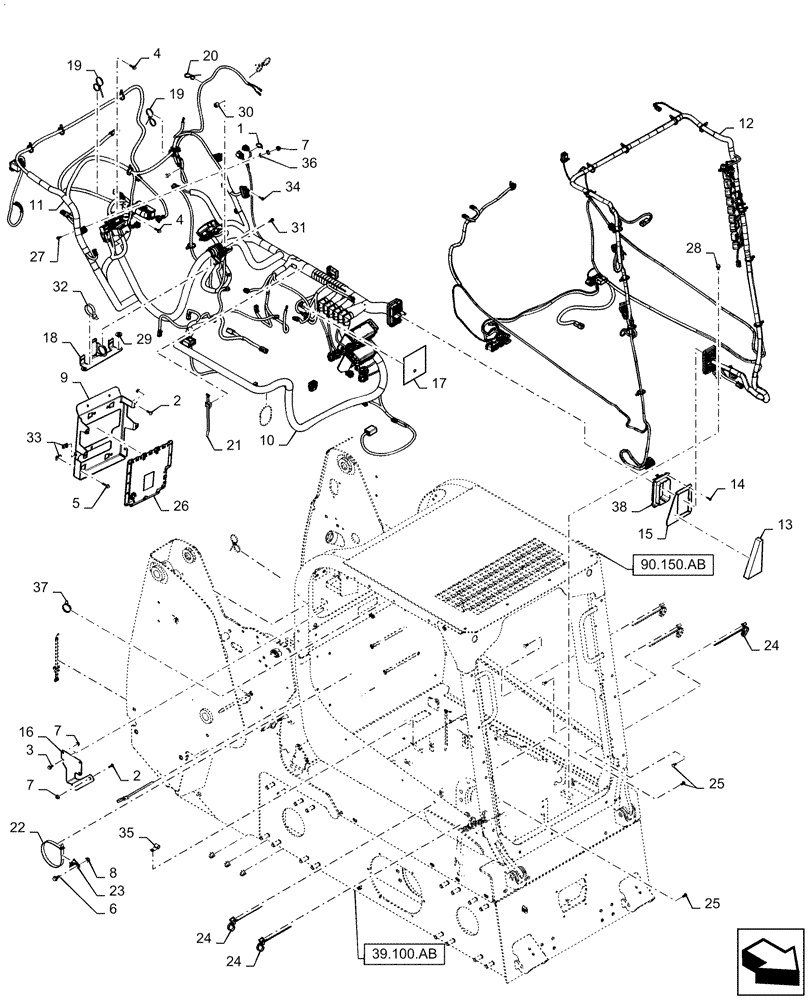

Схема запчастей Case IH TR310 - (55.101.AC[04]) - WIRE HARNESS & CONNECTOR, ELECTRONIC CONTROLS, OPEN CAB (13-NOV-2017 & PRIOR) (55) - ELECTRICAL SYSTEMS
39.100.ab
1
12
4
5
14
24
19
4
21
38
32
11
29
17
16
36
9
18
20
27
3
23
15
25
19
35
26
7
24
2
37
7
31
28
34
6
30
24
33
10
22
7
2
13
25
8
90.150.ab

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

29шт.

2

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

4

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

3шт.

5

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

11шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

9

47773371

UCM Support

BRACKET

1шт.

10

47803837

Rear Chassis, Open Cab

WIRE HARNESS

1шт.

11

47803839

Chassis EH, Open Cab

WIRE HARNESS

1шт.

12

47803843

Cab EH, Open Cab

WIRE HARNESS

1шт.

13

47825018

FOAM INSULATION,172mm L x 27.9mm Thk

LH Inner

1шт.

14

47825034

SCREW,Pan Head, #10 - 14 x 5/8"

4шт.

15

47825472

Bulk Head Adapter, Years: -27-SEP-15

PLATE

1шт.

15

47867182

Bulk Head Adapter, Start Year: 28-SEP-15

PLATE

1шт.

16

47832750

Fuse Mounting, Gray

BRACKET

1шт.

17

47833186

Fuse Box Layout

DECAL

1шт.

18

47846376

Harness Retention

BRACKET

1шт.

19

82012869

CABLE TIE,300mm L, Nylon, Black

Double Loop, Nylon

8шт.

20

82013031

CABLE TIE,193mm L

Nylon

1шт.

21

84259663

CABLE TIE,228.6mm L, Nylon, Black

Nylon

4шт.

22

84266050

CABLE TIE,384mm L, Polyamide

Nylon

1шт.

23

84360210

BASE

Tie

1шт.

24

84420746

CABLE TIE,403.9mm L, Nylon

Nylon

10шт.

25

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

26

47395504

ECU

UCM, 12V, STD 7.2

1шт.

27

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

1шт.

28

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

29

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

30

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

31

86639263

BOLT,Hex, M5, Cl 8

1шт.

32

86991009

CABLE TIE,222mm L, Nylon

Nylon

2шт.

33

87016585

NUT,Spring, M6 x 1

6шт.

34

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

1шт.

35

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

2шт.

36

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

1шт.

37

87668737

CABLE TIE,203.2mm L, Nylon, Black

Nylon

2шт.

38

87718301

WIRE CONNECTOR,Flange

DRB Flange Interface

1шт.

Выбрано товаров: 39
