Запчасти Case IH TR310 (55.101.AC[02]) - WIRE HARNESS & CONNECTOR, MECHANICAL CONTROLS, OPEN CAB (14-NOV-2017 & NEWER) (55) - ELECTRICAL SYSTEMS

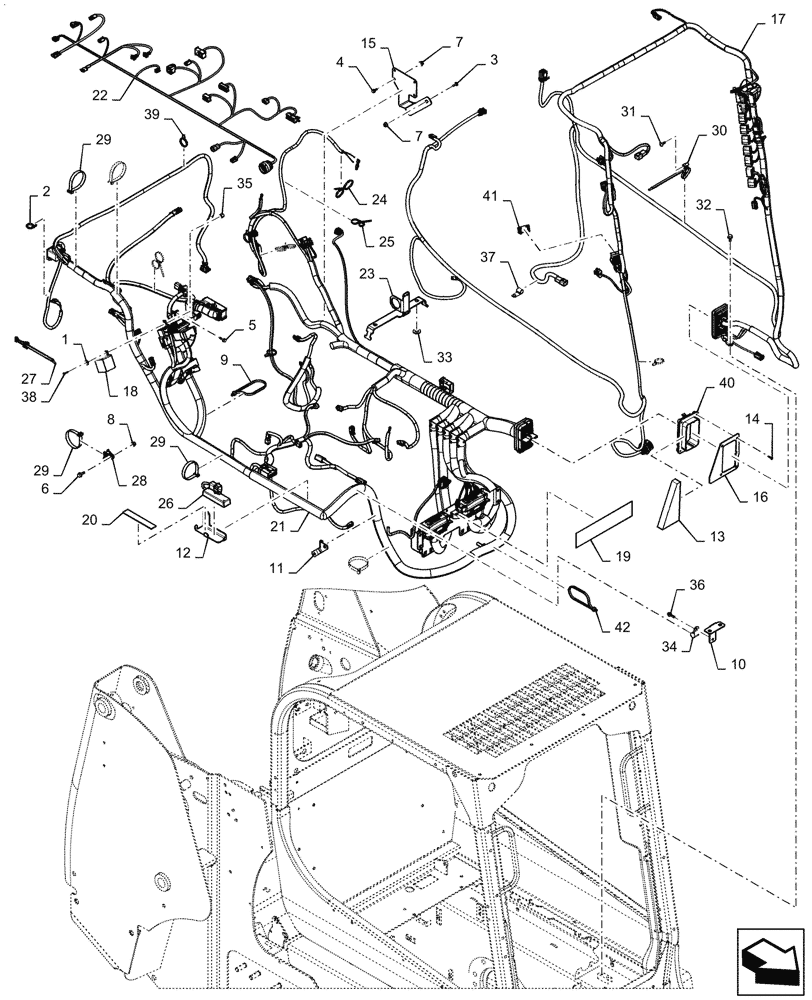

Схема запчастей Case IH TR310 - (55.101.AC[02]) - WIRE HARNESS & CONNECTOR, MECHANICAL CONTROLS, OPEN CAB (14-NOV-2017 & NEWER) (55) - ELECTRICAL SYSTEMS
4
32
2
34
40
42
25
19
18
1
10
37
14
11
7
7
17
26
12
35
28
21
27
13
3
9
8
33
15
31
41
29
23
22
36
5
6
29
30
24
16
20
39
38
29

Артикул

Название

Примечание

Количество

1

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

3шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

3

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

4

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

5

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

4шт.

10

47807585

BRACKET

Harness Crossover

1шт.

11

47807590

BRACKET

Crossover, Lower Guide

1шт.

12

47807591

BRACKET

Control Tray

1шт.

13

47825018

FOAM INSULATION,172mm L x 27.9mm Thk

1шт.

14

47825034

SCREW,Pan Head, #10 - 14 x 5/8"

4шт.

15

47832750

GCU Fuse Mounting

BRACKET

1шт.

16

47867182

Bulkhead Adapter, Gray

PLATE

1шт.

17

47920666

WIRE HARNESS

Cab, Mech

1шт.

18

47932510

BRACKET

Relay Shield, Gray

1шт.

19

47946320

Fuse Box Layout, Mech

DECAL

1шт.

20

47955279

TAPE,150mm L

1шт.

21

47961500

Chassis, EH

WIRE HARNESS

1шт.

22

47961523

Chassis, RH Tower

WIRE HARNESS

1шт.

23

47976862

Harness Retention

BRACKET

1шт.

24

82012869

CABLE TIE,300mm L, Nylon, Black

12шт.

25

82013031

CABLE TIE,193mm L

1шт.

26

84131374

MODULE

Prop Aux

1шт.

27

84259663

CABLE TIE,228.6mm L, Nylon, Black

4шт.

28

84360210

BASE

Tie

1шт.

29

84360212

CABLE TIE,294.2mm L, Nylon

29шт.

30

84420746

CABLE TIE,403.9mm L, Nylon

10шт.

31

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

32

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

5шт.

33

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

34

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

35

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

3шт.

36

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

1шт.

37

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

38

87308282

SCREW,HWH, #10 - 32 x 3/4"

3шт.

39

87668737

CABLE TIE,203.2mm L, Nylon, Black

6шт.

40

87718301

WIRE CONNECTOR,Flange

1шт.

41

126844A1

PLUG,1.427” x .62” , Plastic

1шт.

42

L18331

CABLE TIE,375.9mm L, Nylon, Black

4шт.

Выбрано товаров: 42
