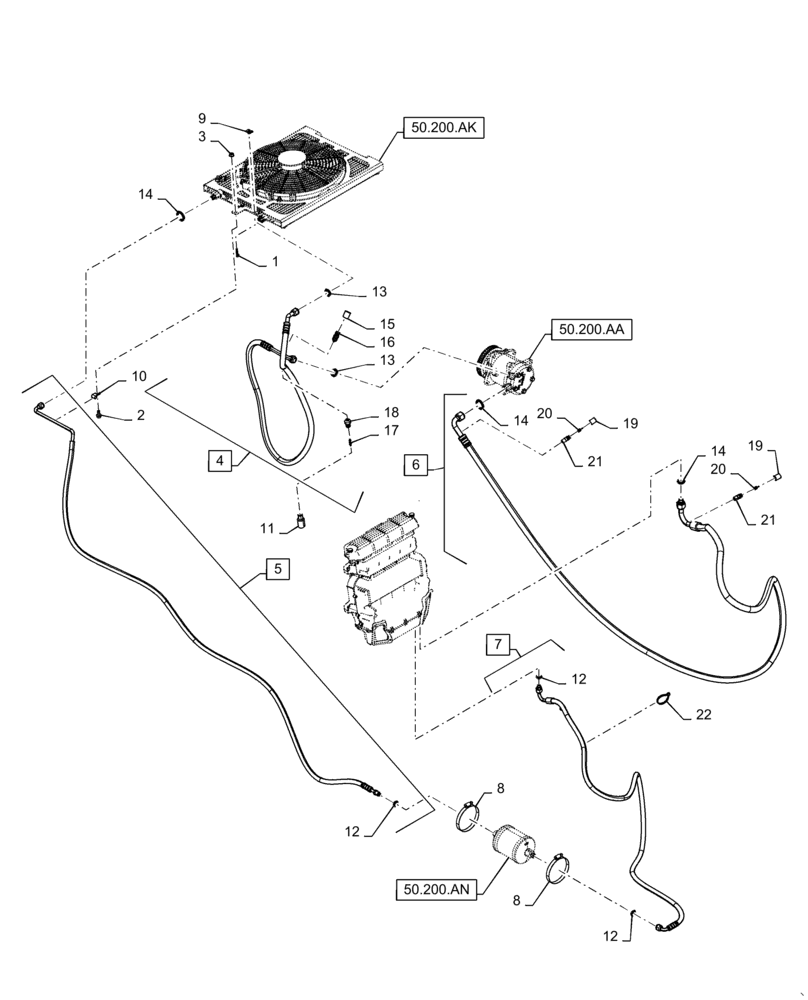

Запчасти Case IH TR310 (50.200.BB) - AIR CONDITIONING, LINES - 03-JUN-2015 & PRIOR (50) - CAB CLIMATE CONTROL

1

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

2

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

4

47415611

Compressor to Condenser, Incl 13, 15 - 18

HOSE ASSY.,12.7mm ID x 1600mm L

1шт.

5

47435321

Condenser to Receiver/Dryer, Incl 12

HOSE ASSY.

1шт.

6

47534057

Evaporator to Compressor, Incl 14, 19 - 21

A/C HOSE

1шт.

7

84403037

Receiver/Dryer to Evaporator, Incl 12

HOSE ASSY.

1шт.

8

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

2шт.

9

86625073

SPRING NUT,M6 x 1

4шт.

10

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

11

87000227

SWITCH, A/C HIGH PRE

1500 Volts Terminal to Case

1шт.

12

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

4шт.

13

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

High Side Hose

2шт.

14

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

Low Side Hose

2шт.

15

414080A1

CAP,M10 x 0.75 x 22.35mm L, Black

High Side Service Port

2шт.

16

414078A1

FITTING,M10 x 0.75 x 38.61mm L

High Side Service Port

2шт.

17

1250594C2

CORE

High Side Valve, A/C Pressure Switch Fitting

1шт.

18

122081A1

FITTING,M10 x 1.25 x 26.43mm L

High Side, A/C Pressure Switch

1шт.

19

414081A1

CAP,M8 x 1 x 17.3mm OD x 21.1mm L

Low Side Service Port

2шт.

20

414083A1

VALVE

Low Side Service Port

2шт.

21

414079A1

VALVE

Low Side Fitting

2шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

1шт.
