Запчасти Case IH TR310 (39.140.AM) - COUNTERWEIGHT (39) - FRAMES AND BALLASTING

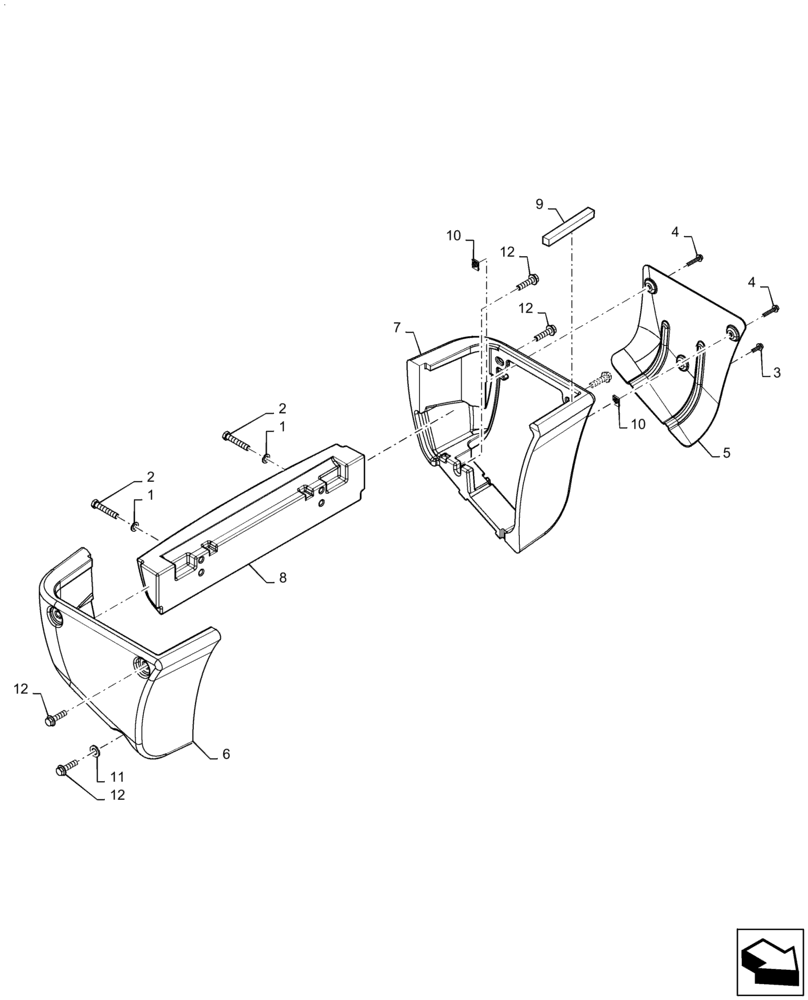

Схема запчастей Case IH TR310 - (39.140.AM) - COUNTERWEIGHT (39) - FRAMES AND BALLASTING
11
2
1
9
7
6
8
4
12
12
12
10
2
4
5
1
12
3
10

Артикул

Название

Примечание

Количество

1

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

2

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

4шт.

3

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

4

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

5

84273170

Battery Compartment

COVER PLATE

1шт.

6

84274252

RH Bumper

BUMPER

1шт.

7

84274254

LH Bumper

BUMPER

1шт.

8

84274281

Center Bumper

FRAME

1шт.

9

84355546

Strip, 215mm L

FOAM INSULATION,215mm L

1шт.

10

86625071

SPRING NUT,M10 x 1.5

3шт.

11

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

1шт.

12

87698849

BOLT,M16 x 50mm, Cl 10.9

6шт.

Выбрано товаров: 12
