Запчасти Case IH TR310 (35.723.AA) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

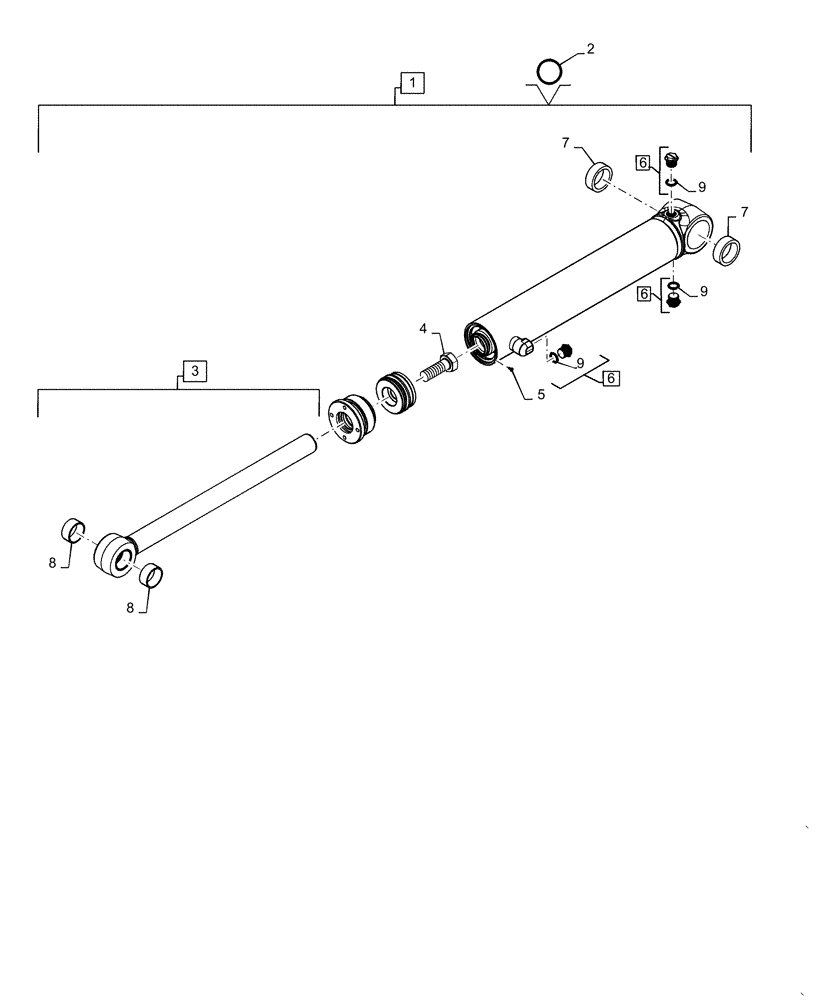

Схема запчастей Case IH TR310 - (35.723.AA) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS
8
9
9
6
2
5
4
7
1
7
9
3
6
6
8

Артикул

Название

Примечание

Количество

1

47364446

HYDRAULIC CYLINDER,34.9mm Rod, 410mm Stroke

Bucket Cylinder, Incl 3 - 9

1шт.

1

47364446R

HYDRAULIC CYLINDER

Reman for New PN 47364446

1шт.

1

47364446C

HYDRAULIC CYLINDER

Return Number

1шт.

2

47364493

SEAL KIT

Services 1

1шт.

3

84295143

Incl 8

ROD,34.9mm OD x 565.6mm L

1шт.

4

86982436

SPECIAL BOLT,SEMS Hex, 7/8" - 14 x 2 - 1/2"

Locking

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Locking

1шт.

6

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

Incl 9

3шт.

7

47364472

BUSHING,44.63mm ID x 57.28mm OD x 19mm L

2шт.

8

9845313

BUSHING,38.15mm ID x 42.82mm OD x 22.2mm L

2шт.

9

NSS

NOT SOLD SEPARAT

O-ring, Incl in 6

3шт.

Выбрано товаров: 11
