Запчасти Case IH TR310 (35.701.AX[02]) - LOADER ARM, LINES (35) - HYDRAULIC SYSTEMS

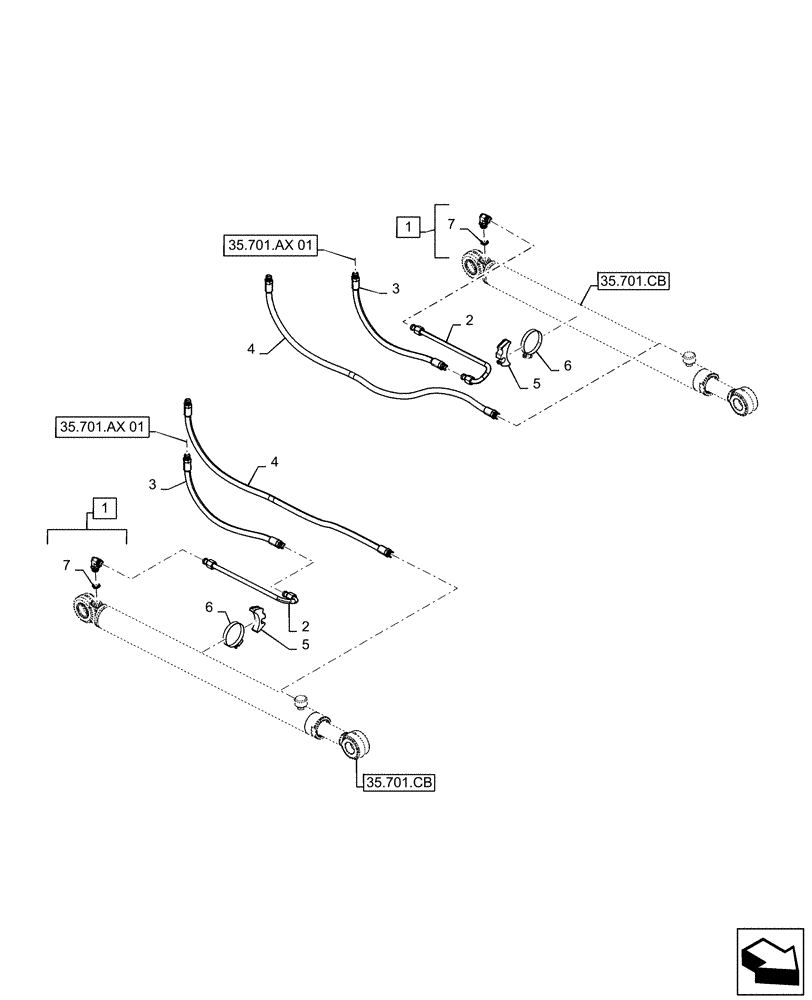

Схема запчастей Case IH TR310 - (35.701.AX[02]) - LOADER ARM, LINES (35) - HYDRAULIC SYSTEMS
35.701.cb
5
2
3
7
7
1
1
3
4
6
6
2
5
4
35.701.ax 01
35.701.ax 01
35.701.cb

Артикул

Название

Примечание

Количество

1

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 7

2шт.

2

47504629

12.7mm OD, Lift Cylinder Base

HYD TUBE

2шт.

3

47540692

Lift Cylinder Base

HOSE,10mm ID x 547mm L, SAE 100R16

2шт.

4

84255974

Lift Cylinder Rod

HOSE,9.53mm ID x 1105mm L, SAE 100R17

2шт.

5

84255986

HOSE CLAMP

17mm ID, Cylinder Saddle

2шт.

6

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

2шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

Выбрано товаров: 7
