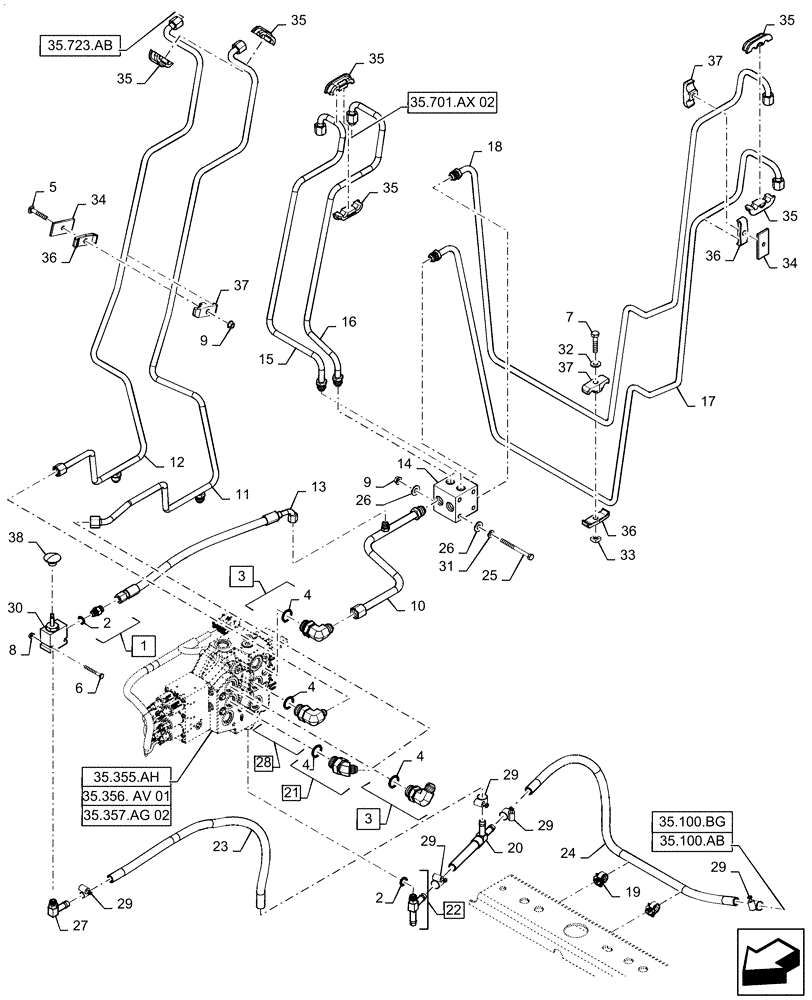

Запчасти Case IH TR310 (35.701.AX[01]) - LOADER VALVE LINES (35) - HYDRAULIC SYSTEMS

1

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 2

1шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 4

2шт.

4

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

5

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

1шт.

6

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

7

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

8

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

10

84181021

RIGID TUBE

15.9mm OD, Lift, Valve to Manifold

1шт.

11

84181028

RIGID TUBE

12.7mm OD, Tip, Loader Valve to RH Arm, Off 45° Fitting

1шт.

12

84181031

12.7mm OD, Tip, Loader Valve to RH Arm, Off 90° Fitting

RIGID TUBE

1шт.

13

84201224

Override

HYDRAULIC HOSE,9.53mm ID x 535mm L, SAE 100R16

1шт.

14

84258823

HYDRAULIC MANIFOLD

Block

1шт.

15

84258829

12.7mm OD, Lower, Manifold to RH Arm

RIGID TUBE

1шт.

16

84258833

12.7mm OD, Lift, Manifold to RH Arm

RIGID TUBE

1шт.

17

84258841

12.7mm OD, Lift, Manifold to LH Arm

RIGID TUBE

1шт.

18

84258858

12.7mm OD, Lower, Manifold to LH Arm

RIGID TUBE

1шт.

19

84259663

CABLE TIE,228.6mm L, Nylon, Black

Polyamide 6.6

2шт.

20

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

1шт.

21

84289681

45 ELBOW,3/4" - 16 JIC x 1-1/16" - 12 ORB

Incl 4

1шт.

22

84299732

Incl 2

FITTING,Hose, 1/2" x 1/2" Barb x 9/16 - 18" ORB

1шт.

23

84299733

Override to EH Aux Drain

HOSE,12.7mm ID x 660mm L

1шт.

24

84299735

EH Aux Drain to Drain Manifold

HOSE,12.7mm ID x 915mm L

1шт.

25

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

26

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

27

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

1шт.

28

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

Incl 4

1шт.

29

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

5шт.

30

84294239

Boom Override

VALVE

1шт.

31

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

32

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

33

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

34

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

35

376523A2

SUPPORT,1/2"

Hydraulic Tube

6шт.

36

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube

3шт.

37

D120679

CLAMP,Tube, 1/2"

3шт.

38

87522292

KNOB

38.4mm OD, Override Valve

1шт.
