Запчасти Case IH TR310 (35.525.AA [02]) - AUXILIARY HYDRAULIC, STANDARD , BOOM SECTION C.U.P. (35) - HYDRAULIC SYSTEMS

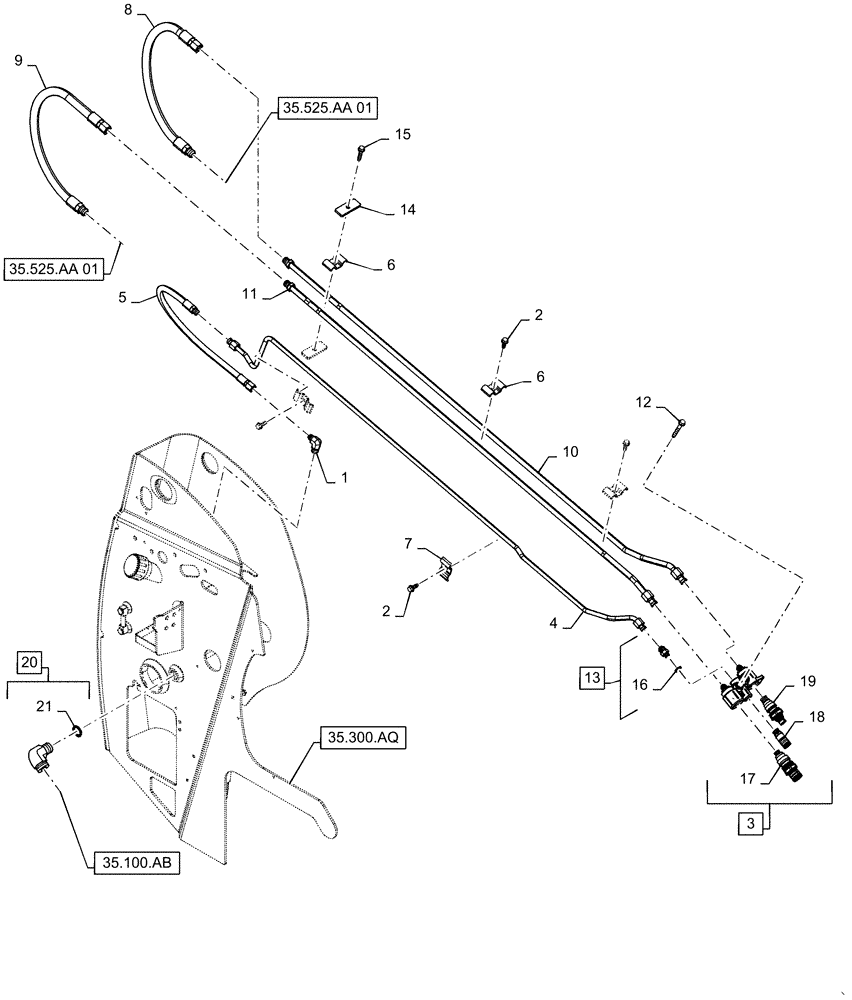

Схема запчастей Case IH TR310 - (35.525.AA [02]) - AUXILIARY HYDRAULIC, STANDARD , BOOM SECTION C.U.P. (35) - HYDRAULIC SYSTEMS
35.525.aa 01
14
5
13
2
18
12
6
7
2
20
19
17
6
11
10
1
9
16
4
8
15
3
21
35.525.aa 01
35.300.aq
35.100.ab

Артикул

Название

Примечание

Количество

1

76352

90 ELBOW,3/4" - 16 JIC x 1/2" - 14 NPTF

1шт.

2

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

3

47396759

VALVE

Connect Under Pressure, Incl 17 - 19

1шт.

4

47415664

12.7mm OD, Case Drain

HYD TUBE

1шт.

5

47415665

712mm L, Case Drain

HYDRAULIC HOSE,10mm ID x 712mm L, SAE 100R1

1шт.

6

84252828

CLAMP,65.2mm L

65.2mm L, Butterfly Tube

3шт.

7

84254056

HOSE CLAMP,69.2mm L

69.2mm L, Butterfly Tube

2шт.

8

84322558

Std Aux

FLEXIBLE HOSE,15.88mm ID x 698mm L, SAE 100R17

1шт.

9

84322561

Std Aux

FLEXIBLE HOSE,15.88mm ID x 773mm L, SAE 100R17

1шт.

10

84322562

15.88mm OD, Aux Cup, Male Run

HYD TUBE

1шт.

11

84322567

15.88mm OD, Aux Cup, Female Run

HYD TUBE

1шт.

12

84331287

SCREW,HWH, 3/8" - 16 x 3"

2шт.

13

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 16

1шт.

14

87023483

PLATE,82mm L x 31.8mm W x 7.37mm Thk

Clamp

2шт.

15

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

1шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

47396762

COUPLING,3/8" Female

1шт.

18

47396761

COUPLING,1/2" Female

1шт.

19

47396760

COUPLING,1/2" Male

1шт.

20

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 21

1шт.

21

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Выбрано товаров: 21
