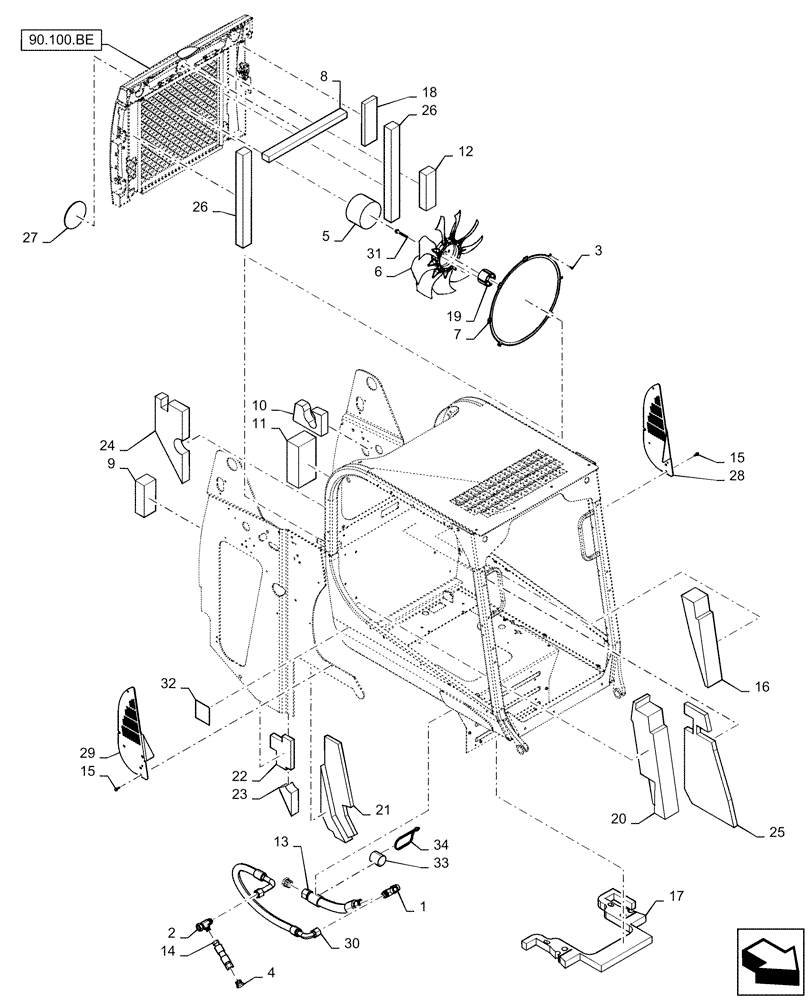

Запчасти Case IH TR270 (90.105.CU[01]) - INSULATION, SOUNDPROOFING, CAB EURO (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

2

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

3

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

8шт.

4

9790527

PLUG,1-5/16" - 12 JIC

2шт.

5

47391841

FOAM INSULATION

152.4mm OD, Rear Door

1шт.

6

47430287

FAN,9 Blades, 518mm OD

Clockwise, Pusher

1шт.

7

47612505

567.5mm OD, Circular

BRUSH

1шт.

8

47612514

Rear Door, Top

FOAM INSULATION,35mm x 50mm x 570mm

1шт.

9

47612517

Fuel Tank

FOAM INSULATION,65mm x 85mm x 200mm

1шт.

10

47612519

220mm L, LH, Hyd Fill

FOAM INSULATION

1шт.

11

47612521

LH, Tower

FOAM INSULATION,260mm L x 127mm W x 85mm Thk

1шт.

12

47612522

LH, Rad Bracket

FOAM INSULATION,50mm x 70mm x 225mm

1шт.

13

47612532

Resonator

HYDRAULIC HOSE,25mm ID x 393mm L, SAE -16

1шт.

14

47615371

Resonator

HYDRAULIC HOSE,25mm ID x 225mm L, SAE -16

1шт.

15

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

16

84366338

484.2mm L, Left Tower, Front

FOAM INSULATION

1шт.

17

84366352

Heal Plate, Vertical

FOAM INSULATION

1шт.

18

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

LH, Tower, Front

1шт.

19

84373345

74mm OD

SPACER

1шт.

20

84374169

622mm L, RH, Tower, Front

FOAM INSULATION

1шт.

21

84374171

564.5mm L, RH, Tower

FOAM INSULATION

1шт.

22

47638695

199mm L, RH, Tower, Rear

FOAM INSULATION

1шт.

23

84374179

160.7mm L, RH, Tower, Lower

FOAM INSULATION

1шт.

24

84374180

452.6mm L, LH, Tower

FOAM INSULATION

1шт.

25

47638265

600.5mm L, LH, Tower, Front

FOAM INSULATION

1шт.

26

47688540

566.4mm L, LH, Rear Door

FOAM INSULATION

1шт.

27

47638946

Lexan Tan

COVER

1шт.

28

84383823

LH, Chassis Vent

COVER

1шт.

29

84383826

RH, Chassis Vent

COVER

1шт.

30

84544550

Valve Supply

HOSE ASSY.,19.05mm ID x 905mm L, SAE 100R17

1шт.

31

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

4шт.

32

87611184

DECAL,LWA 103, 100mm x 110mm

1шт.

33

87595771

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

1шт.

34

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.
