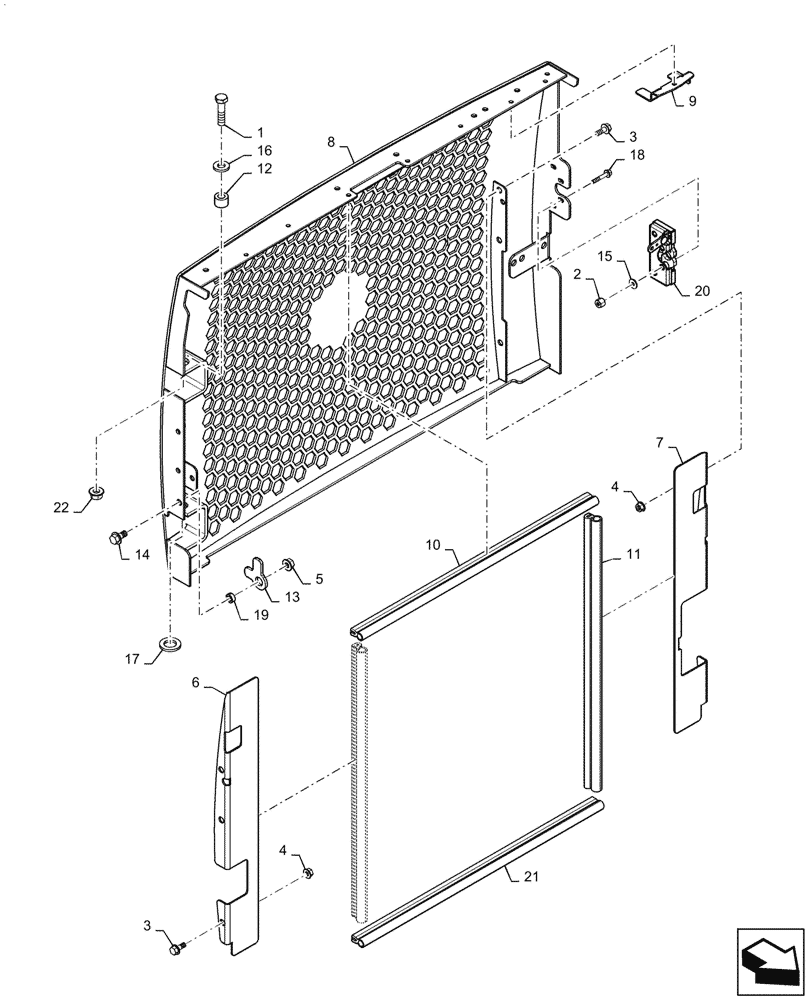

Запчасти Case IH TR270 (90.100.BE) - REAR DOOR (12-MAY-2015 THRU 08-JAN-2017) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

2

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

4шт.

3

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

5

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

6

47465384

RH, Door Seal

ANGLE

1шт.

7

47465386

LH, Door Seal

ANGLE

1шт.

8

47839109

Rear

DOOR

1шт.

9

47839168

Fuel Line Support

ANGLE

1шт.

10

84201449

DOOR SEAL,580mm L

Bulb

1шт.

11

84201450

DOOR SEAL,575mm L

Bulb

2шт.

12

84306545

BUSHING,12.5mm ID x 23.5mm OD x 16mm L

Door Hinge

1шт.

13

84306554

LOCKING PLATE

Door Arm

1шт.

14

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

15

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

16

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

17

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

1шт.

18

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

4шт.

19

87352559

SPACER,13.10mm ID x 15.90mm OD x 6.4mm L

Door Lock

1шт.

20

87437076

LATCH

Rear Door

1шт.

21

87578980

RUBBER SEAL,590mm L

Bulb

1шт.

22

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

1шт.
